• Automatically Convert The Input Optical/Coaxial Channel: Supports LPCM/PCM/RAW to analog audio output, and Compatible For DOLBY-AC-3 decoding. Therefore, it is widely used in families, schools, squares, cinemas and other public places.
• Built-In High-Performance RTOS Operating System & Audio Decoding Core: The digital audio converter not only supports AC-3/LPCM/PCM/RAW, but can also decode Dolly AC-3 digital audio to analog audio.
• 192KHz: Supports sampling speeds of 32 KHz, 44.1 KHz, 48 KHz, 96 KHz, and even 192KHz (many other frequencies only support up to 96 KHz) and provides high sound quality. It also supports 24-bit SPDIF input bit streams on both left and right channels.
• Wide Compatibility: SPDIF/ coaxial input and 2.0/5.1CH RCA, 3.5MM audio output, compatible for DVD, PS3, PS4, HDTV, etc. Note: The RCA output must first be connected to the amplifier, but not directly to the speaker.
• Support Network Playback: Compatible for HD TV, DVD, DM500S, DM800HD, etc., micro metal shell, anti-interference. With 6CH RCA/3.5mm headphone port output, easy to use. 6 Support synchronous adjustment of 6CH (5.1CH) volume.

Description:

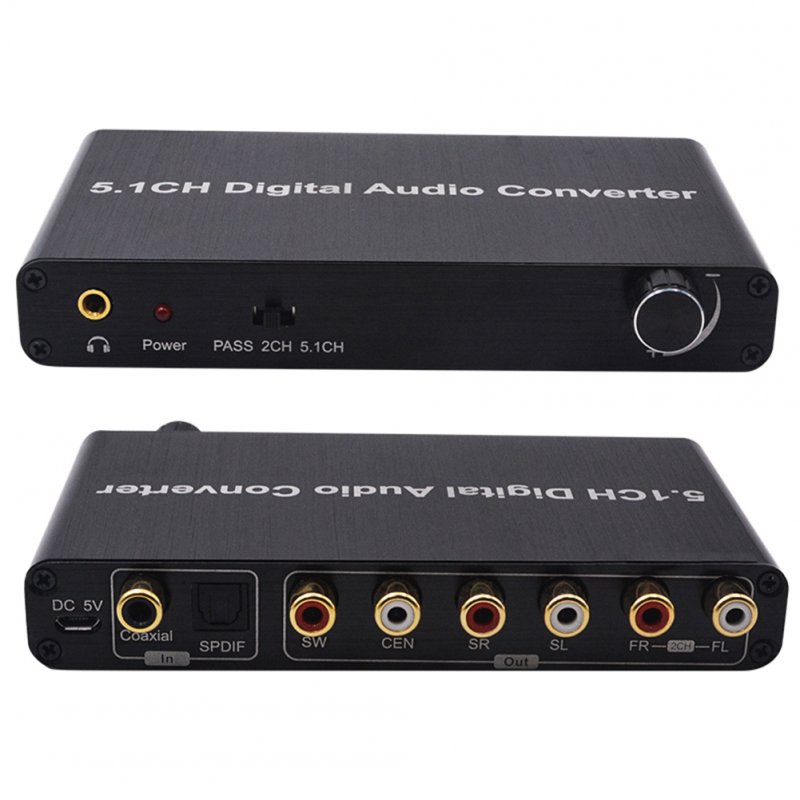

Name: 5.1CH Digital Audio Converter

Input: 1 glass fiber input, 1 coaxial input port;

Output: SW, CEN, SR, SL, FR, FL, 3.5mm headphone port;

DSD sampling frequency: 2.8224 MHZ (DSD64);

PCM word length: 32 bits;

PCM sampling frequency: 192KHz;

Audio interface: 3.5mm;

Support audio formats: MP3, AC3, WAV, AAC, ALAC, FLAC, APE, OGG, M4A;

SNR: 120db;

Stereo isolation: 80db (1KHZ);

Channel balance: 0db;

Bit rate: 16 to 24 bits;

Response frequency: 20Hz to 20KHz/-0.7db;

Analog output level: 2.2V;

Analog input level: 1V (3db);

Power adapter: Input: 100V to 240V (50 to 60Hz);

Output: 5V/1A;

Maximum power current: 400mA;

Packing list:

1 x digital audio converter

1 x USB power cord

1 x Instruction manual

1 x Packaging box

Note:

Due to manual measurement, please allow 1-3cm differences, thanks (all measurements are in cm, please note that 1cm=0.39 inches).

There may be color difference due to different computers or smartphones, please forgive me!
