Gilt PCB and Small dimension and easy to embed into your project.
Typical Operating Distance have been updated to 5cm~7cm reading distance.
Work in NFC Mode or RFID reader/writer Mode.
Plug and play, for compatible.
Built in PCB Antenna, with 4cm~6cm communication distance.
On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI.
Work as RFID reader/writer.
Work as 1443-A card or a virtual card.
Exchange data with other NFC devices such as smartphone.
.Description:
Item type: Module
Support I2C.SPI and HSU (High Speed UART), Change between those modes
3.Support RFID reading and writing
SupportP2P communication with peers
Support NFC with Android phone
RFID reader/writer supports:
1k, 4k, Ultralight, and DesFire cards
ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)
Innovision Jewel cards such as IRT5001 card
FeliCa cards such as RCS_860 and RCS_854

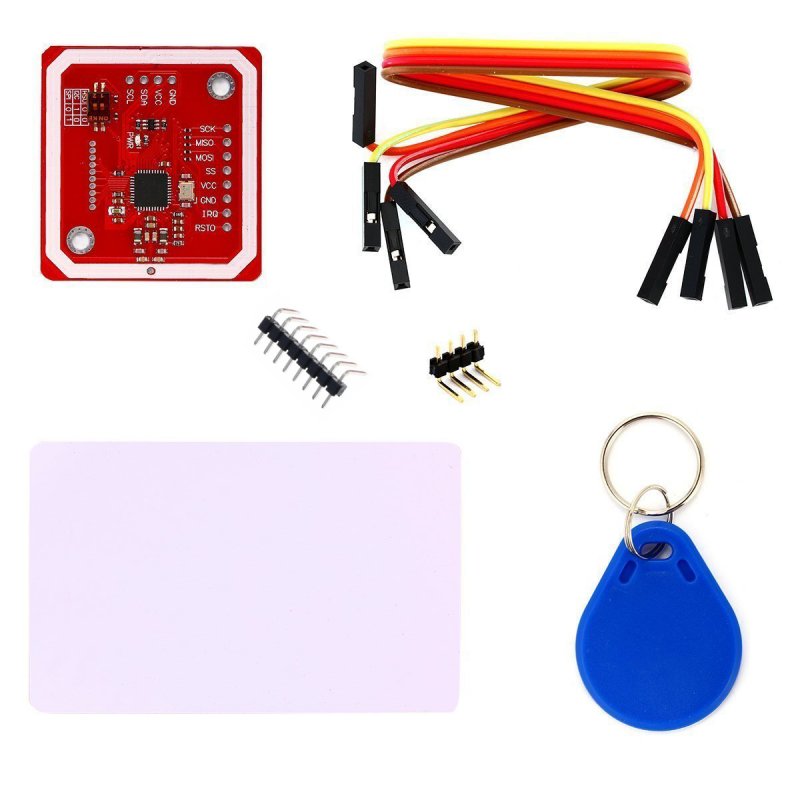

Packing list:
1 x1PCS*PN532 NFC RFID Module
1x 2.54mm spacing 4pin Cable
1xMifare One S50 White Card
1xMifare One S50 Key Card
1x12P bended male pins
Note:
The colors deviation might differ due to different monitor settings.
.
