This product is out of stock, and not coming back.
It may have been replaced by a newer version, see replacement/alternatives listed below.

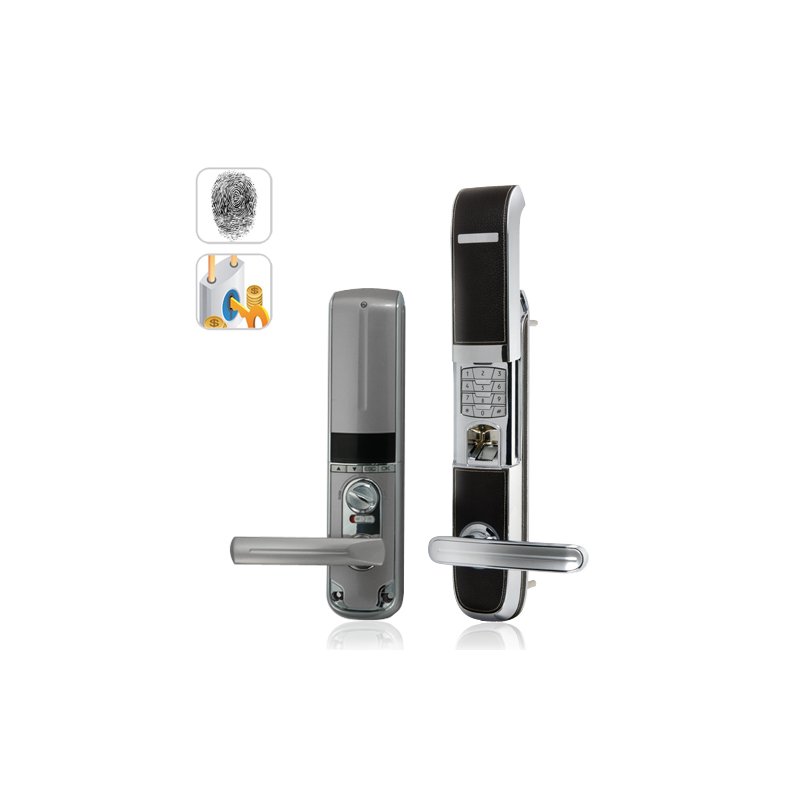

Protector - Heavy Duty Fingerprint Door Lock (Right)

Product code: CVPW-J28-Right
Fingerprint Door Lock
Fingerprint Door Lock
$347.17  $468.27
The Protector, our newest Fingerprint Door Lock. A heavy gauge, all-metal door entry protection biometric door lock for use when you require the highest level door security system at your company, university or government office building. If you want presidential level protection and won't settle for anything else, look to the "The Protector" Fingerprint Door Lock.

What is The Protector? Its a fingerprint and key code dead bolt door lock system meant to protect your valuable materials and data while at the same time making it easy for employees and authorized personnel to enter and exit into their assigned work spaces. With The Protector you get the following benefits;

Robust and Capable: This biometric fingerprint door lock and entry system was thoughtfully designed to handle the most sensitive and high security zones. The Protector can handle can be used to guard private banking offices, VIP rooms, and high classified laboratories among other things. If someone was not meant to have access to a building or room, then this heavy duty fingerprint door lock will make sure it stays that way.

Indestructible: Fireproof, weatherproof and vandalproof, The Protector is made of only the best components along with a high grade die-cast aluminum casing that makes sure it can withstand even the most determined bad guys. Everything that comes with The Protector is of the highest quality, so you can be sure that from the lock set to the strike plate, you're getting a product that would cost 2x as much from others. In fact, burglars may find it easier to break through the wall than try to get through a door that has The Protector installed!

Modern Technology: Mortice dead lock with dual latch bolts means heavy duty, high level security. Throw in a fingerprint scan or access code requirement and you have the most impregnable entry system available today. This fingerprint door lock is impossible to break into, but for those who have clearance, access is easy and only takes a few seconds.

For total security, convenience and dependability for a lifetime, The Protector Heavy Duty Fingerprint Door Lock is an investment that will pay for itself the instant you install it. You can't go wrong with our low factory-direct price and express shipping. Order yours today and we'll ship it out to you tomorrow.

At a Glance...

  • Heavy duty finger print lock - opens by fingerprint, mechanical key, or key code
  • Right hand version - For the identical left hand version, check out CVPW-J28-Left
  • Comes in a complete set with all installation hardware included (door lock, strike plate + box, mortice lock with dual latch bolt)
  • Sliding cover to help protect the finger touch pad from rain and snow
  • Easy DIY installation (see video)
  • Tamper alarm, latch bolt alarm, and other safety features (check FAQ below for full details)


Manufacturer Specifications

  • Product Description: Heavy Duty Fingerprint Door Lock
  • Storage Capacity: 100 fingerprints
  • Height Resolution: 500dpi
  • Angle of Finger Reading: 360 degrees
  • Unlock Method: Fingerprint, Access Pincode, Physical Key (meant to be kept with director or manager)
  • Door Thickness: 35mm - 80mm, shim plates provided for thinner doors
  • Power Source: 8x AA battery (lasts 12-18 months, not included)
  • Static Power Consumption: 20uA
  • Dynamic Power Consumption: 180mA
  • Working Temperature: -20 to 55 Degrees C
  • Working Humidity: 0 - 95%
  • False Rejection Rate (FRR): = 1%
  • False Acceptance Rate (FAR): = 0.0001%
  • Verification and Comparison Time: = 1s
  • Dimensions: 316.23 x 76.6 x 80 mm (H x W x D)
  • Manufacturer Ref: PIO0HENEUVAG

Product Notes

  • Right handed installation
  • High quality Biometric Fingerprint Security
  • Low battery alarm
  • Stick a 9V battery on the bottom when the unit it has no power for temporary access
  • Features an On/Off button on the back. "Off" means it does not lock, so you can turn it off when you step outside for a moment and don't want to worry about swiping your finger or using your key.
  • High sensitivity, high speed recognition
  • Typical Applications: Banks, IT Rooms, Government, Executive Level Offices, Military Bases

Package Contents for CVPW-J28-Right

  • Interior Lock Set
  • Exterior Lock Set
  • Mortice Lock Set
  • Strike Box
  • Strike Plate
  • Shim Plates
  • Screws
  • Mechanical Key x3
  • Door Template
  • Instruction Manual - English

FAQ - Frequently Asked Questions

  • If I cut my finger, will the unit still work?
    We suggest you register 2 different fingers on each hand to avoid this problem, or open the door by password or key.
  • Can anyone enroll himself and have access to the system?
    No, only the person who knows the 8 digit master code (or is the administrator fingerprint - the 00 fingerprint) is authorized to enroll new users.
  • How long will the lock last on a single set of batteries?
    Under normal use (10-15 accesses per day) the fingerprint lock should operate for a year on a single set of alkaline batteries.
  • Do I have to reconfigure the lock when I replace the batteries?
    No, the system configuration and user information/data are saved in a non-volatile flash memory data and may be stored indefinitely without the need of batteries.
  • If my finger gets dirty will it still work?
    The fingerprint sensor uses RF techniques to collect data from below the skin, therefore the reading ability is not affected by dirty. It is advisable, however, to wipe dirt and sand off prior to swiping to avoid scratching the sensor's protective surface.
  • The battery is dead and I left the key is at home, what do I do?!
    There is a 9V battery connector located below the door knob at the bottom frame of the unit; a simple connection using a 9V battery will bring it back to life.
  • Is the CVPW-J28 Waterproof?
    No, but it is weatherproof, meaning any moist build up from fog or frost should be fine. It is not advised to install the CVPW-J28 in unsheltered areas where direct contact with rain, hail, or snow is likely.
  • I heard this security gadget has a tamper alarm and latch bolt alarm, what is that?
    Tamper Alarm: If the exterior set outside is damaged by outside force, the buzzer will give off a continuous beep for alarming. Great for knowing when someone has tried breaking in and scaring thieves off.
    Latch Bolt Alarm: If the door is not properly closed and the latch bolt is pressed into the lock set, the alarm will sound. Useful as a reminder that the door has not been closed properly.
  • I saw the red light but I still forgot to change the battery and the key is at home, what do I do?!
    There is a 9V battery connector located below the door knob at the bottom frame of the unit; a simple connection using a 9V battery will bring it back to life.
  • I followed the instructions exactly but my fingerprints aren't being read, what's going on?
    This unit uses a swipe sensor, which is different from a press sensor. You need to slowly swipe your finger down the fingerprint reader.
  • Where is the key hole?
    On the door handle. Lift the plunger on the rear side of the exterior handle up and slide the cover to the right.
