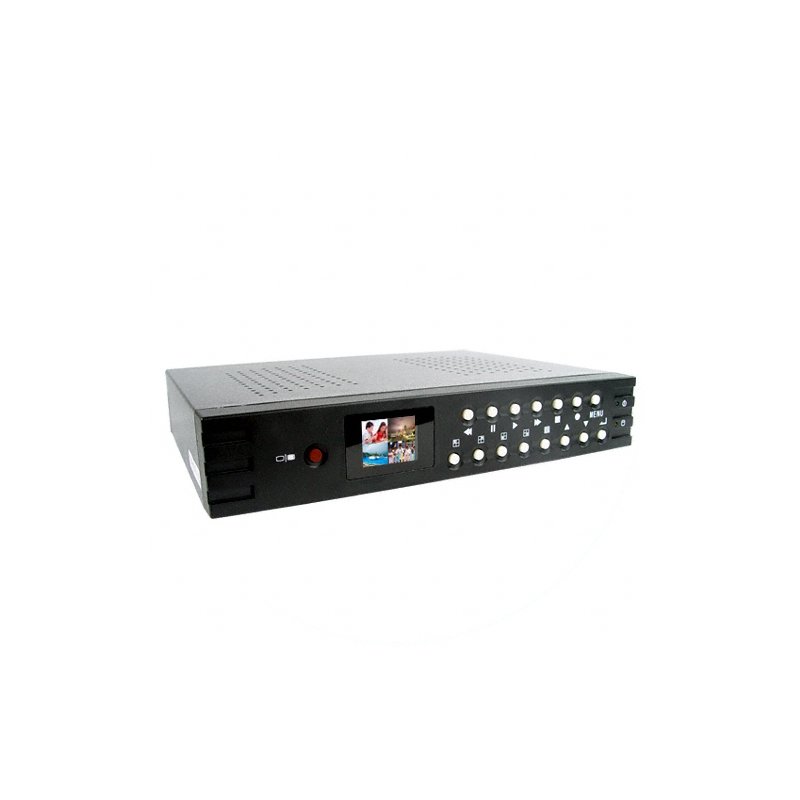

Four Channel Embedded Digital Video Recorder -PAL

Product code: CVAJM-913-PAL
If you're after the highest standards in DVR equipment to look after assets or family then here it is, an excellent 4 channel DVR with Preview LCD, internal HDD capability and USB connectivity. You'll be impressed from the get-go after you simply install your own 3.5 inch HDD (up to 200GB), and easily connect your cameras. From here this unit switches into top gear, with dual monitor ouputs, an s-video output (ideal for a TV), sensor inputs and an alarm output. Recording is possible on all channels simultaneously and in a number of different profiles so you can go all out for quality or step the resolution and frame rate down a bit for maximum recording times. All these features packed into a small, actively cooled (50mm fan) rugged steel enclosure. A powerful and but discreet product and an all-time great seller get yours today from Chinavasion at great wholesale prices.

Note: This unit does not come with a hard disk drive you will need to purchase this separately.


Manufacturer Specifications

  • 1.5 Inch TFT LCD Screen
  • Recording Format: MPEG (AVI)
  • Recording Quality: Low, Normal, High
  • Default Frame Rate Settings: PAL: 25 Frames per Second
  • Recording Frame Rates: Frames per Second -25, 15, 10, 7, 5, 4, 3, 2, 1
  • Inputs - (PAL)
    - 4 Channel BNC (RCA with Small Adapters) Video Camera Input
    - 4 Motion Sensor/Trigger Inputs
  • Outputs -(PAL/NTSC)
    - 4 Channel Camera Loop Back
    - 1 Alarm Output
    - 2 BNC (RCA with Small Adapters) Monitor Outputs
    - S-Video Output
    - USB Output for PC link
  • Power Source: 12 V DC
  • Dimensions: 290mm x 220mm x 52mm (L x W x H)
  • Manufacturer Ref: ZHBW2ME7399I

Product Notes

  • Local PC monitoring and backup via USB- no need to take out the hard disk
  • Password Protection- video captures will be safe from accidental erasure/ tampering
  • Tough Stackable Casing
  • Internal Alarm When Video Signal Lost
  • Power Failure Protection, Automatic Restart
  • Stand-Alone Operation not effected by PC Viruses etc.

Package Contents

  • Model CVAJM-913-PAL DVR
  • Manual
  • Power Adapter
  • 3 X RCA cables (2 male connectors at each end)
  • Software CD
  • 1 X IDE to SATA adapter
  • 10 X BNC to RCA (female) Adapters
