At a Glance...

• Full 4 Channel NVR surveillance system with Wi-Fi cameras is the perfect starter kit for home or office security
• 720p Video recording with IR Cut brings reliable imaging night or day
• Motion detection and remote alarm notifications with e-mail snapshot and video recording
• Support remote view of the camera via a networked computer or supported Smartphone

This ONVIF 2.2 compliant network video record has 4 channels and comes with 4 x 720p, 1/4 inch CMOS cameras, brining you a top notch security with cloud P2P and E-SATA HDD connection for easy storage.

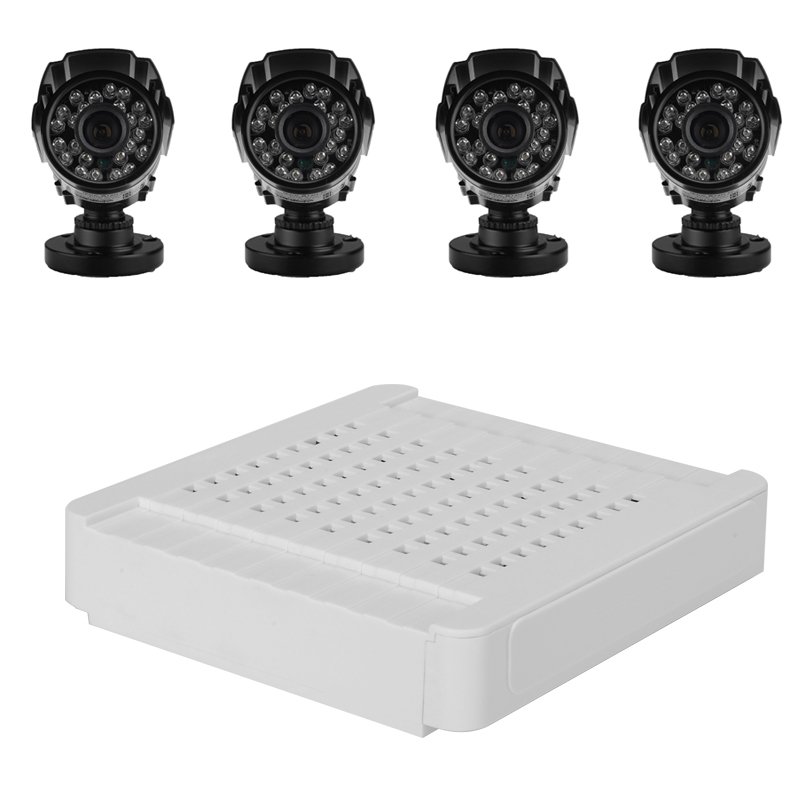

Compact HD NVR Kit

This compact HD NVR kit is comes with everything you need for a quick and easy installation. Each of the 4 cameras has Wi-Fi connectivity so you can plug the NVR into your router and connected wirelessly to the cameras. This will greatly reduce your need for cabling, providing greater freedom for placing the cameras.

With a 720p main resolution each camera can record at up to 25fps and with IR cut and night vision they will provide a clear image night or day. The cameras each have motion detection supporting 4 areas, and once triggered you can receive an snapshot of any intruder in your email inbox or have the event recorded on a HDD.

This NVR unit allows for an HDD to be connected internally or externally supporting up o 4TB of data storage. With iCloud support you can also access the live feeds remotely via a networked computer or your smart phone.

The NVR has 2 USB ports as well as VGA, Micro USB, HDMI, LAN and an E-SATA port so there could be no easier way to get started with a comprehensive NVR kit that's suited to home and office surveillance.

The 4 Channel NVR kit comes with a 12 months warranty, brought to you by the leader in wholesale NVRs..

Manufacturer Specifications

General

• Hardware Processor: HI3518
• Image Compression: H.264 Main Profile
• Image Main Stream: 1280x720/1 to 25fps; 640x360/1 to 25fps
• Sub Stream: 640x360/1 to 25fps; 320x180/1 to 25fps
• Frame Rate: 25fps
• Bit Rate: 128 to 4096kbps, supports CBR/VBR
• Image Control: Hue, saturation, brightness, contrast, exposure

Connectivity

• Ethernet: RJ-45 Interface 10/100Mbps
• Network Protocol: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP
• ONVIF: ONVIF Ver. 2.2
• Wi-Fi: 802.11b/g/n, 150Mbps, Supports WEP, WPA, WPA2
• OS Supported: Microsoft Windows XP/Vista/windows7
• Browser: IE6.0 and above (OCX plug-in), Google Chrome, firefox (VLC plug-in)
• IP Mode: Dynamic IP address, static IP address, Supporting WPS (Wi-Fi Protected Setup)Client do not need to know the SSID and security keys or pass phrases when connecting WPS-enabled devices
• Ethernet: 10Base-T/100base-TX Mobile
• Support Mobile Phone Access: Android, iPhone, iPad , Windows mobile

Audio

• Audio Compression Format: G711-A
• Auto Image Control: AE, AWB
• S/N: Up to 50dB

Camera Lens

• Lens: 3.6mm
• F-Stop: 2.0 (IR Lens)
• Image Sensor: 1/4 Inch 1 Megapixel CMOS Sensor
• Viewing Angle: 45 Degrees

Camera Night Vision

• Infrared Light: 12 IR LEDs
• Min LUX: 0.5
• Alarm: Motion Detection
• Detection Area: Support 4 Detection Areas
• Alarm Notification: Email Snapshot Notification, FTP Snapshot Upload, Event record to HDD

Memory

• Memory Slot: Up to 4TB (Not Included)

Other

• Power Supply Input: 110 to 240V, 50/60Hz; Output: DC 12V, 1000mA
• Camera Power Consumption: 6W (Max)
• Power Supply: 5V 2A
• Operating Temperature: -10 to 50 Degree Celsius
• Operating Humidity: 0% to 90%
• IP66 Waterproof

NVR

• Operating System: Embedded LINUX operating system
• Image Code Control: Image code quality adjustable, variable bit stream and constant bit stream optional
• Dual Stream: Each channel can set main stream and sub stream
• Video Standard: 1080P (1920x1080)30fps, 960P (1280x960), 720P (1280x720)30fps
• Monitoring Image Quality: 1080P (1920x1080), 960P (1280x960), 720P (1280x720)
• Image Motion Detection: Each screen can set multiple detection areas and set sensitivity（Support 4ch playback simultaneously, IPC Support
• NVR Power Consumption: Up to 10W（No Include HDD）
• Operating Temperature: -10 to 50 Degree Celsius
• Operating Humidity: 0% to 90%
• Installation Way: Desktop Installation

Recording Playback

• Recording Playback Quality: 1ch playback in 1080P mode, 4ch playback in 960P mode
• Region Cover: Every channel can set 4 cover regions（IPC Support）
• Recording Mode: Support manual, auto, dynamic detection, alarm trigger record mode (Partly needs IPC Support)
• Backup Way: Support U Disk, USB mobile HDD, USB DVD-RW, network storage and backup
• Operation Way: Mouse
• Local Login: User name and password
• Recording Storage: Local HDD, network

External

• Ports: Video Input
• 4x (1280x960) + sub[960x576] + 1Ref + 4Play Support 4ch 1.3MP IP camera
• 4x (1920x1080) + sub[960x576] + 4Ref + 1Play Support 4ch 2MP IP camera
• 1x (1920x1080) + sub[960x576] + 4Ref + 1Play Support 1ch 2MP IP camera

DVR/NVR Ports

• LAN
• VGA
• HDMI
• 2x USB
• DC IN
• E-SATA
• SATA

Languages

• English, Italian, Portuguese, Russian, Thai, Chinese(simp), Chinese(trad), Turkish, French, German, Polish, Romanian, Spanish

Dimensions

• DVR/NVR dimensions: 160 x 168 x 30 mm (L x W x D)
• DVR/NVR weight: 230g
• Camera dimensions: 140 x 58 x 55 mm (L x W x D)
• Camera weight: 269g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• NVR
• 4x IP Camera
• 5x Power Adapter
• CD
• User Manual
• 4x Wifi Antenna
• 4X Hex Key
• 5x Screws

Enjoy the following benefits:

• Orders processed and shipped within 24-hours
• 12 month warranty
• In-house QC
• Member discounts
• Award winning customer support
• Quantity order discounts
• Worldwide Shipping
• Certification: CE, FCC, RoHS
