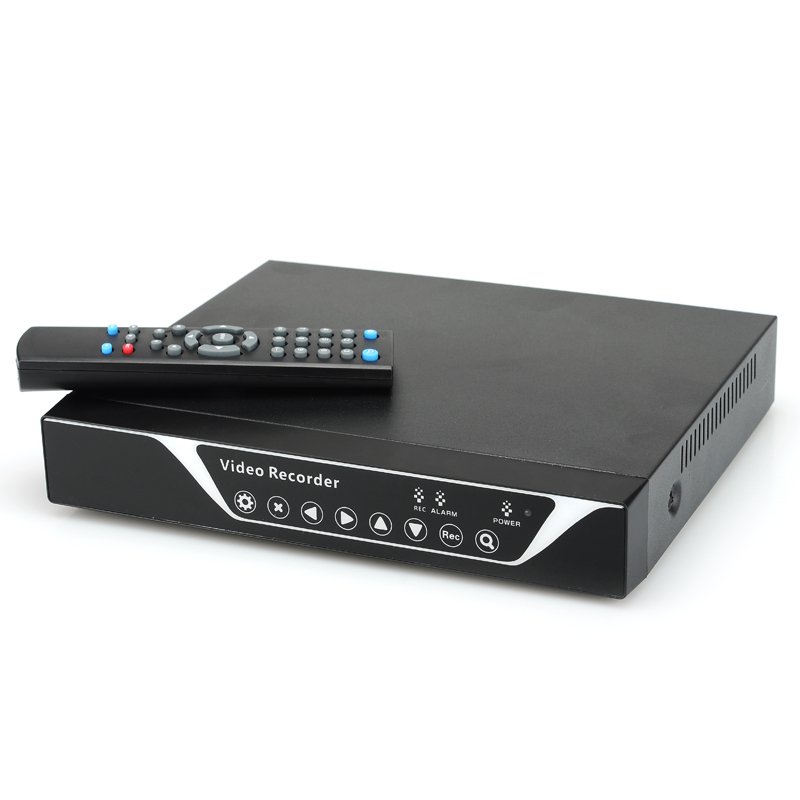

4CHx 960H + 2CHx 720p DVR - H.264 Video Compression, HDMI Support, Motion Detection, Windows 8 Style Software

Product code: CVYC-I425-2GEN
This 4 channel 960H and 2 channel 720p DVR features H.264 Video Compression, HDMI Support, Motion Detection as well as having Windows 8 Style Software.

DVR featuring HDMI Support

A no-nonsense way to perk up your present security situation is with this DVR that has four BNC channels and two 720p IPC channels for network video input. Simple to set up as it arrives with all the cables, this DVR has some of the top features implemented to get you started such as using H.264 format video compression, which is the most commonly used format that around today for distribution of video content. You can hook up this DVR to a HDMI compatible TV or monitor to watch the footage on a large screen as there is even HDMI support.

For the best you need 960H

Making this DVR more appealing that the competition is that it uses 960H technology to deliver outstanding quality and clear video resolution plus it has two channels for IPC cameras. 960H is represented by the amount of horizontal pixels that are in the CCD image sensor resulting in it being the best that is available for analog CCTV. Additionally, 960H has up to a 30% enhancement in resolution when matched against D1 resolution. You can view a greater amount of image detail and as 960H creates a wide-screen picture with this 960H DVR so the image does not need to be extended in order to fit wide-screen TVs and monitors.

This product is in stock now, we guarantee next working day shipping and offer a 12 months warranty on all our products. Brought to you by the leader in electronic devices and wholesale DVR systems, Chinavasion.

At a Glance...
  • DVR
  • 4 Channel 960H
  • 2 Channel 720p
  • H.264 Video Compression
  • HDMI Support
  • Motion Detection
Manufacturer Specifications

    • Main Processor: High performance embedded microprocessor
    • Operating System: Embedded LINUX OS

    • Video Compression Format: H.264
    • Display Image Resolution: 720P 30FPS
    • Playback Image Resolution: 720P 30FPS
    • Motion Detection: Can setup 192(16×12) PCS motion detection area
    • Each channel and multi-level sensitivity (1 to 5 levels adjustable)
    • Privacy Masking
    • Network Video Input: 4CH BNC, 2CH 720P IPC
    • Video Output: 1ch CVBS (BNC), 1ch VGA and 1ch HDMI

    Recording Mode
    • Recording Mode: Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording
    • Recording Storage: HDD, Network
    • Frame Rate: 30 fps NTSC; 25 fps PAL
    • Playback: Max support 4ch D1 synchronously playback
    • Backup Mode: Support HDD, USB Flash Disk store and backup

    • Audio Compression Format: ADPCM, G711
    • Audio Input: 4ch BNC
    • Audio Output: 1ch

    • Network: 1x100Mbps, RJ45 port
    • RS485: Standard 485 port, Support half-duplex, Green terminal port
    • USB: 3 USB 2.0 ports
    • HDD: Support 1 SATA HDD, Up to 2TB (Not Included)
    • Power: DC +12V /2A
    • Power Consumption: 16W to18W (Not Include HDD)
    • Operation Temperature: 0 to 55 Degree Celsius
    • Operation Humidity: 10% to 90%

    • Main product dimensions: 257x212x42mm (L x W x D)
    • Main Product Weight: 837g
    • Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

    Package Contents
    • DVR
    • Remote Control
    • Mouse
    • CD
    • Power Adaptor
    • User Manual
    • Screws
