This product is out of stock, and not coming back.
It may have been replaced by a newer version, see replacement/alternatives listed below.

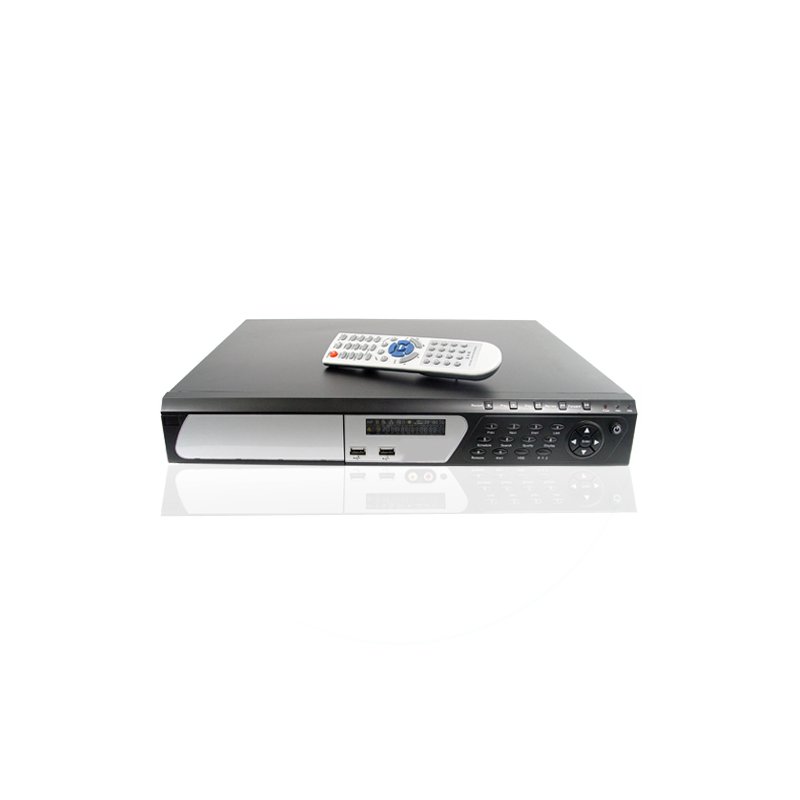

4 Channel Digital Video Recorder - MPEG4 Compression -NTSC

Product code: CVEDW-2104-NTSC
OUT OF STOCK
.
4 Channel NTSC DVR MPEG 4 Network
4 Channel NTSC DVR MPEG 4 Network
$201.92
.
Sometimes only the best will do, if you need a single standalone product that can act as the heart of your surveillance system then you're on the right page.
This DVR powerhouse is brimming with features ensuring easy integration with existing security networks as well as simple setup for new ones. With two SATA drives connected (not included) you can address 1TB (1000GB) that's an incredible amount of space for archived recordings, and if they get full easily back up via USB or network. MPEG4 compression is completed on board to minimize disk space usage and the unit is able to encode all for channels at once, and do 2 of them with audio - simply incredible. Add a VGA monitor to the output and you have yourself a professional security station with more functions than you'll know what to do with.
Order now from Chinavasion and be simply blown away by this great wholesale DVR.

This product uses NTSC color system.


China Manufacturer Specifications
  • Resolution:
    Monitor Output: 704 x 576
    Capture: 352x288, 352x576, 704x576
  • Compression Standard: MPEG4
  • Video Signal: NTSC (525 line, 60 field / sec)
  • Video Input
    Composite Video: 1.0V p-p/75
    BNC connector x 4
  • Video Output
    Composite Video: 1.0V p-p/75
    BNC Connector x 1
    VGA output
  • Audio Input: RCA x 4
  • Audio Output: RCA x 2
  • Alarm input: Non-voltage contact closure, always open or closed, 4-channel input
  • Alarm output: Non-voltage contact closure, always open, 2-channel output
  • Alarm
    Alarm sensor input
    Video detection alarm
    Video loss alarm
    Disc full warning
  • Control
    Compatible with PTZ- RS485 interface x 1
  • Backup mode
    USB backup
    Network backup
  • Hard Disk
    Up to two SATA 3.5 inch drives (Hard disks NOT included)
  • Bitstream installed:
    Stall seven Bitstream : 300MB/h, 400MB/h, 500MB/h, 600 MB/h. 700 MB/h, 900 MB/h
    Own: 1~4000MB/h
  • Security functions:
    Data encryption + 2
    Password management
  • Power Source: DC12V 5.0A (Mains Adapter Supplied)
  • Dimensions: 435 x 63 x 360mm
  • MAN Ref: M7P8LTEF59L7

Other Features:

  • 4-channel trigger input and 2-channel alarm
  • output
  • Alarm
    Alarm sensor input
    Video detection alarm
    Video loss alarm
    Disc full warning
  • 4-channel synchronization of audio and video compression
  • Multiple Inquiry Modes
  • Built-network function, support for TCP/IP, WAN etc.
  • It is compatible with PTZ, equipped with infrared remote control
  • Graphical User Interface for Simple Operation
  • Compatible with two-way intercom network

Accessories:

  • Manual
  • Remote Control
  • Software CD
  • Power Brick
  • Mouse

  • Manufacturer and Origin: China
  • Login for Wholesale Discount Price

Even lower prices available for you if you're ordering in larger wholesale quantities. Get your samples first then contact us for your personal discount quotes!

If you wish to make comments or reviews about this product, login and use the product review box. Please open an inquiry ticket if you have questions regarding this product.


.

Customer Reviews(0)

5 out of 5
5 star rating 5 star rating 5 star rating 5 star rating 5 star rating
4 Channel Digital Video Recorder - MPEG4 Compression -NTSC
Deliverystarrs 5starrs 5starrs 5starrs 5starrs 5
Value for Moneystarrs 5starrs 5starrs 5starrs 5starrs 5
Packagingstarrs 5starrs 5starrs 5starrs 5starrs 5
Ease of Setup/Usestarrs 5starrs 5starrs 5starrs 5starrs 5
Function/Performancestarrs 5starrs 5starrs 5starrs 5starrs 5
Write Review
Date Launched: Mar 15 2008
