Comparing Products? Search Chinavasion For Alternative: CVSH-I24-NTSC (Sentinel - Waterproof Night Vision CCTV (SONY 1/3 CCD)

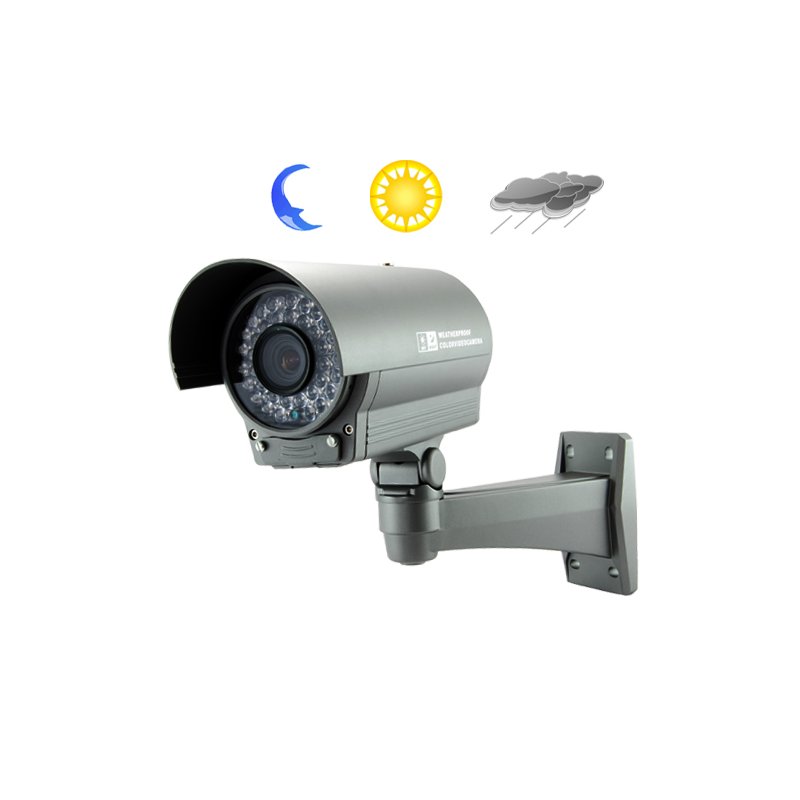

Weatherproof night vision security video surveillance camera with Sony Super HAD CCD imaging sensor for the highest quality video possible you can get from a security camera.

The design of this CCTV surveillance camera is thoughtful in every detail. This model, I15, includes a top-rate CCD Sony Super HAD image sensor, native support for dual video outputs, includes manual lens adjustments (zoom, focus, aperture), and includes 36 infrared LED's to support night vision in absolute darkness. This professional-grade video surveillance camera is the perfect choice for small businesses, security conscience homeowners, and anyone needing the latest in video surveillance technology.

All this video camera technology is packaged inside a high quality die-cast aluminium casing for 100% uptime in all operating environments. Capable of working in all weather environments and total darkness (night vision via 36 IR LED's), once the I15 is setup during installation, this CCTV surveillance camera will give you total safety and security because it will operate 24/7 (24 hours, 7 days a week) for years to come.

This advanced technology wired CCTV surveillance camera not only includes the Sony HAD CCD, but it also capable of automatically switching between night and day mode and its auto-iris lens will adjust automatically to different lighting conditions to give you the clearest possible image. If you tried to buy a similar spec-grade camera from Samsung, Panasonic, Vitek, IQ or Messoa it would cost $300-$400. Here at Chinavasion we are offering it to you at low China Wholesale direct from the factory price. This camera is in stock now for single piece or large bulk purchases. Order yours today and we will express ship it out to you tomorrow. Only at chinavasion.com!

At a Glance...

• CCTV video surveillance camera
• Weatherproof
• 36 IR LED's
• Auto ON/OFF night vision
• Die-cast aluminum casing
• Spec-grade manual lens adjustment options
• Super HAD CCD Sony Lens (1/3 inch)

.

Manufacturer Specifications

• Primary Function: Weatherproof Super Night Vision Security Camera
• Image Sensor: 1/3 Inch SONY Super HAD CCD
• Lens Type: Verifocal
• Video Format: NTSC
• Effective Pixels: 768 (H) x 494 (V) NTSC
• Horizontal Resolution: 540 TV Lines
• Scanning Frequency: PAL: 15,734KHz (H) / 60Hz
• Shutter Speed: 1/60-1/100,000 PAL
• IR LED: 36
• Sync Speed: Internal
• Video Output: 1Vp-p Composite Video / 75Ohms
• White Balance: ATW
• F-Stop: 3.6-16 (mm)
• Backlight Control (BLC): ON/OFF
• ALC: Automatic Light Control
• Flicker-less Control (FLC): ON/OFF
• Automatic Gain Control (AGC): ON/OFF
• Auto Iris Lens: YES
• S/N Ratio: >48db
• Minimum Illumination: 0.1 LUX for Color / 0.000 LUX under IR LED
• Viewing Distance:
  - Daytime: 80 - 100 meters
  - Nighttime (IR): 50 meters
• CDS Sensor: YES
• Audio: None
• Operating Temperature: -20 to +50 degrees C
• Connection Type: BNC
• Power Adapter: 12V DC
• Dimensions:
  - Lens: L:194 x W:102 x H:109 (mm)
  - Stand: H:187 x D:115 x W:72 (mm)
• Certifications: CE, FCC
• Manufacturers Ref: R4WV9F9K9TQV

Product Notes

• You can easily change the BNC connection to an RCA AV type with a simple BNC-to-RCA coupler adapter
• Located at the front of this CCTV camera is a second video output. This allows you to connect the CCTV camera to 2 different recording devices
• Switching between night vision is completely automatic
• The super HAD Sony CCD technology provides 2 times better sensitivity and 6 db better smear rejection ratio than the former traditional types of CCD
• Before installing, use the zoom function to get a more close up image and adjust the iris to get a crisp quality image
• The two micro lenses on top of each photo diode of the Super HAD CCD are able to collect more photons from incoming light than the old CCD's made by other brands. Once you see the quality of the Sony Super HAD you will never go back to old-tech video surveillance products!

Package Contents

• Model CVJZ-I15-NTSC Weather Proof Night Vision Security Camera
• Mounting Hardware
• Setup Tools
• Manual - English

FAQ - Frequently Asked Questions

• Does this camera have audio?
  No. This camera captures video but not audio.
• Do I have to turn night vision on manually?
  No. This camera has a light sensor that detects light levels. It switches to IR mode automatically.
• Do you connect cables from the camera outside to your computer or is it cordless?
  The device is not wireless/cordless, you will need to connect cables from the camera to the computer, monitor or TV screen.
