This product is out of stock, and not coming back.
It may have been replaced by a newer version, see replacement/alternatives listed below.

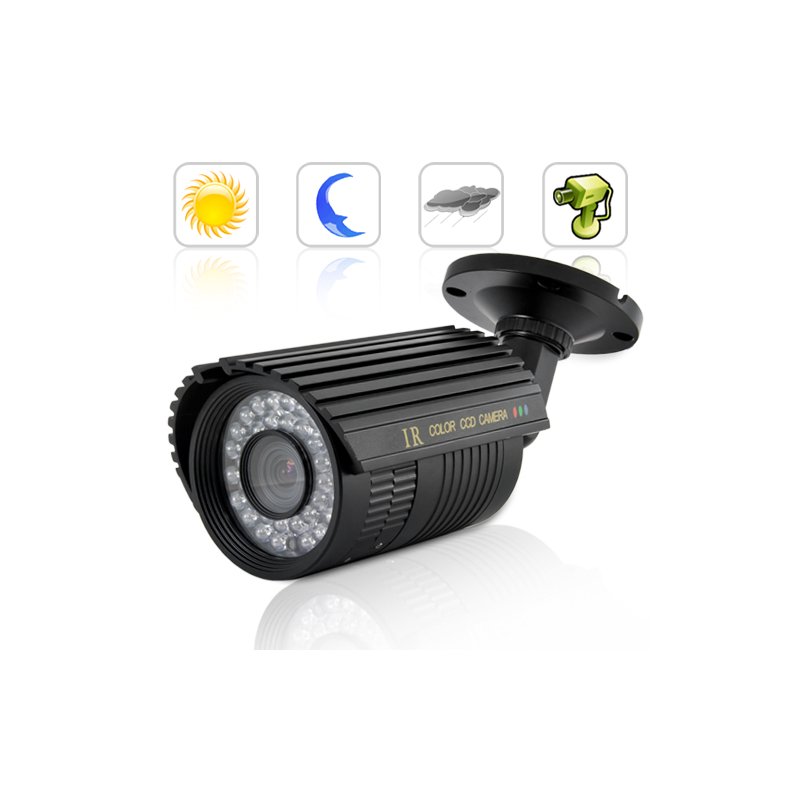

Wachtmeister - CCTV Security Camera with SONY Interline CCD

Product code: CVJZ-J24-PAL
Waterproof Night Vision CCTV Security Camera with Sony CCD video sensor. Protect your home or business with this durable, high-quality outdoor surveillance camera with a Varifocal Lens, 36 IR LED's and advanced Sony CCD.

Anyone concerned about security will appreciate this durable, high-quality wired security camera. The Wachtmeister provides super clear resolution of 520TV lines along with a long viewing range day and night, making this powerful camera perfect for keeping an eye on the outside of your home or business all day and night, rain or shine.

The 1/3 inch CCD Sony lens gives a high quality image and wide viewing angle, while 36 infrared (IR) LED's provide excellent night vision, even in complete darkness. The J24 comes with a focal length and zoom adjustment lever. Further more, the heavy-duty aluminum casing protects this camera from water, stormy weather, falling debris, and even vandalism.

The Sony Interline CCD gives you a better image than other security cameras, because Interline CCD means that the quantum efficiency (QE) is increased, allowing more light to reach the CCD for extra image clarity along with noise reduction, thus further improving the quality of the image, especially in low light environments.

With the integral die-cast arm + mounting bracket, installing and positioning this camera exactly where you want it is easier and more secure than in any surveillance camera you have ever seen before! Plus, the heavy gauge metal mounting plate has four perfectly placed holes to assure a secure mounting for surface or suspended installations, making this model ideal for flat, angled or even texture mounting surfaces.

We know what you must be thinking, "shouldn't a CCTV Security Camera this good be selling for at least $300?" You are right! However, with the exclusive Wachtmeister CCTV security camera, you are getting the same quality the Chinese Police and German Military use, but at a low factory-direct wholesale price. For maximum home and business security Start the New Year with increased security and complete peace of mind, the CVJZ-J24 is proudly brought to you by - Chinavasion.

At a Glance...
  • SONY Interline CCD
  • Easy to Install and Position
  • Heavy Duty Aluminum Casing
  • 36 IR LED's for Powerful Night Vision
  • Waterproof Night Vision Security Camera
  • 1/3 Inch CCD Sony Lens with Varifocal Iris


Manufacturer Specifications

  • Primary Function: Security Camera (Waterproof + Night Vision)
  • Video Format: PAL
  • Image Sensor: 1/3 inch SONY Interline CCD
  • Scanning System: (PAL) 520 Lines
  • Scanning Frequency:
    - PAL - 15.625KHz (H) / 50Hz
  • Electronic Shutter Speed:
    -PAL - 1/50 - 1/100,000
  • Viewing Distance:
    - Daytime: up to 150 meters
    - Nighttime (IR): up to 50 meters
  • Onboard Parameters:
    - Secondary Video
    - DC Iris Control
    - Sun Shield
    - Focal Length Adjustment Lever
    - Built In DC Auto Iris
    - Infrared LED's
    - Manual Zoom
  • Zoom: Yes, Manual
  • Focus: Yes, Manual
  • Effective Pixels: PAL: 752 (H) x 582 (V)
  • Sync System: Internal
  • Resolution: 520 TV Lines
  • Video Output: 1Vp-p Composite Video / 75Ohms
  • White Balance: Automatic
  • Gamma Characteristics: 0.45
  • S/N Ratio: >48db
  • Audio: None
  • Minimum LUX
  • 0.1 Lux For Color / 0.000 Lux Under IR LED
  • IR Range: 50 Meters
  • Number of LED's: 36 at 850nm for infrared night vision
  • Lens: 3.5 - 16mm DC Iris Varifocal Lens
  • Operating Temperature: -10 to +50 Degrees Celsius
  • Back Light Compensation: Automatic
  • Connection Type: BNC
  • Power: Universal power adapter (100-240V)
  • Dimensions:
    - Body - L:145 x Diameter:95 (mm)
    - Fixture - L:90 x Diameter:30 (mm)
    - Base - Diameter:96 x H:30 (mm)
  • Included Installation Tools
    - x4 L Wrench
    - x4 Installation Screws
    - Secondary BNC Video Lead
    - x4 Fixing Screws
  • Certifications: CE, FCC, ROHS
  • Manufacturers Ref: CF5KYF23JGD9

Product Notes

  • If you want to monitor several cameras and record the footage, don't forget to check out our BNC compatible Digital Video Recorders (DVR) and Camera Processors
  • Provides you with 24/7 security
  • You can easily change the BNC connection to an RCA AV type with a simple BNC to RCA coupler adapter
  • Switching between night vision is completely automatic

Package Contents for Model CVJZ-J24-PAL

  • Waterproof Night Vision Security Camera
  • Power Adapter (100-240V, 50/60Hz)
  • Mounting Bracket
  • Installation Tools
  • BNC Video Cable
  • Manual - English

FAQ - Frequently Asked Questions

  • Does this camera have audio?
    No. This camera captures video but not audio.
  • Do I have to turn night vision on manually?
    No. This camera has a light sensor that detects light levels. It switches to IR mode automatically.
  • Do you connect cables from the camera outside to your computer or is it cordless? This is a CCTV surveillance camera, meaning it is not wireless/cordless. You will need to connect cables from the camera to a computer, monitor, DVR or TV screen.

  • Login For Wholesale Discount Prices
  • Catalog Ref: Security Camera, Wired Surveillance Camera, Waterproof Camera, CCTV Camera, CCD Camera, IR Camera, Night Vision Camera
  • Want to know more about the latest in personal electronics and digital media products? Do you want to read stories regarding new products before anyone else? Then read our blog at blog.chinavasion.com or subscribe to our RSS newsfeed to keep up with what is happening in the world of China Wholesale Electronics.
  • If you plan to resell this item on a non-english website, the most common category names for this product are;
    - Security Camera, Surveillance Camera
    - kameras Keselamatan, Kamera Pengawasan
    - Câmera de segurança, Câmera de vigilância
    - Caméra de surveillance, caméra de surveillance
    - Sicurezza Macchina fotografica, telecamera di sorveglianza
    - Κάμερα ασφαλείας, κάμερα παρακολούθησης
    - Безопасности, камеры, камера видеонаблюдения
    - Security Camera, Camera van het Toezicht
    - Sikkerhed Kamera, Surveillance Camera

  • Comparing Products? Search Chinavasion For Alternative: CVJZ-I58-PAL (Mini Surveillance Camera with SONY Interline CCD)
  • .
