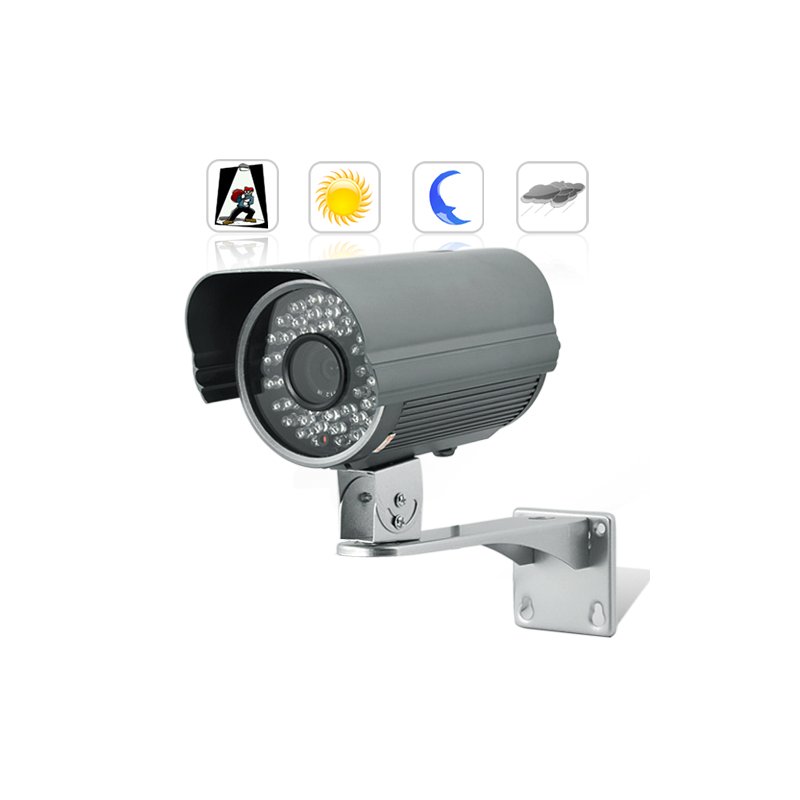

Security Camera with 1/3 Inch Sony CCD (Intelligent Motion Detection, IR)

Product code: CVNH-I43-N1
Security Camera 1/3 Sony CCD
Security Camera 1/3 Sony CCD
More than your average security camera...
This waterproof security camera is the perfect size to easily fit in most indoor or outdoor locations, and features a professional grade 1/3 inch Sony CCD video sensor to capture high quality video. This specific model also features an extra long viewing range to capture video from up to 150 meters away in daylight and 80 meters at nighttime. In addition, the I43 Security Camera uses 48 powerful Infrared (IR) LEDs to capture detailed video during total darkness! However, the real feature that sets this security camera apart from the rest is the intelligent motion detection...

Perfect view every time
With the intelligent motion detection turned "ON", the I43 Security Camera will automatically center on any moving object and increases the image size by x2 (can change to 4x or 10x), giving you a perfectly framed view of any moving object. The intelligent motion detection responds quickly and accurately, and will follow the object within a 60-degree viewing angle in all directions, however, the camera itself will stay perfectly still! This revolutionary technology ensures that you will always capture a up close and detailed image of any moving object, day or night, rain or shine!

Image control for any environment
Unlike most security cameras, the I43 Security Camera offers you complete control over the image quality settings. This means you can easily adjust the brightness, contrast or saturation to best suit the surrounding lighting conditions. For example, lets say you need the Security Camera to monitor the back of your office building, but this area is too bright to capture a detailed image. Not to worry, just turn the brightness setting "DOWN", and you can now capture a clear image. Different lighting conditions create different quality results, so controlling your cameras behavior to these conditions is necessary in ensuring you will get a clear picture every time.

Medium size, full strength
The I43 Security Camera comes in a mid-sized enclosure but provides you with the same technology found in full sized CCTV cameras. This perfect balance of camera size and image quality allows you to mount the camera in more locations than you could a larger CCTV camera, and without any loss in video performance. The I43 Security Camera is build with top grade aluminum and can withstand extreme weather conditions without fault. Rain, snow, humidity or intense heat do not effect this all aluminum weatherproof camera.

Order the I43 Security Camera Sony CCD (Intelligent Motion Detection, IR) today and we will ship it out by tomorrow. Only from the leaders in wholesale electronics, Chinavasion!

At a Glance...
  • Security Camera from Chinavasion
  • 1/3 Inch CCD Sony Video Sensor
  • Intelligent motion detection
  • Easy to install and position
  • Motion activated photo capture
  • Heavy duty die-cast aluminum casing
  • Able to withstand all weather conditions
  • 48 IR LED's for extra powerful night vision


Manufacturer Specifications

  • Primary Function: Security Camera Sony CCD (Intelligent Motion Detection, IR)
  • Video Format: PAL
  • Image Sensor: 1/3 inch SONY CCD
  • Scanning System: (PAL) 420 Lines
  • Scanning Frequency:
    - PAL - 15.625KHz (H) / 50Hz
  • Electronic Shutter Speed:
    -PAL - 1/50 - 1/100,000
  • Viewing Distance:
    - Daytime: up to 150 meters
    - Nighttime (IR): up to 80 meters
  • Onboard Parameters:
    - Menu Control Buttons (up, down, left, right, menu, esc)
    - Sun Shield
    - SD Card Slot: 16GB max (not included)
  • Zoom: Yes, Auto
  • Focus: Yes, Auto
  • Effective Pixels: PAL: 510 (H) x 492 (V)
  • Sync System: Internal
  • Resolution: 420 TV Lines
  • Picture Capture: Yes, 720x576 JPG
  • White Balance: Automatic
  • S/N Ratio: >48db
  • Audio: None
  • Minimum LUX
  • 0.3 Lux For Color / 0.0 Lux Under IR LED
  • Number of LED's: 48
  • Lens: 6mm F1.2
  • Operating Temperature: -10 to +50 Degrees Celsius
  • Video Output Connection Type: BNC (can change with adapter - not included)
  • Power: Universal power adapter (100-240V)
  • Settings:
    - Max Zoom: 2X, 4X, 10X
    - SD card Overwrite: ON/OFF
    - Intelligent motion detection: ON/OFF
    - Photo Quality: Low, Medium, High
    - Motion Detection Sensitivity: 0-6
    - Motion Detection Photo Capture: ON/OFF
    - Image Control: Brightness, Contrast, Saturation
  • Dimensions:
    - Mounting Bracket: L:165 x W:38 (mm)
    - Camera: L:127 x Diameter: 83 (mm)
    - Hood: L:165 x W:98 x H:63 (mm)
  • Manufacturers Ref: L4WVKKK9TQV

Product Notes

  • Provides you with 24/7 security
  • Switching between night vision is completely automatic
  • You can easily change the BNC connection to an RCA AV type with a simple BNC to RCA coupler adapter
  • If you want to monitor several cameras and record the footage, don't forget to check out our BNC compatible DVR systems at: [http://www.chinavasion.com/index.php/cName/surveillance-equipment-dvr-cards-systems]
  • This video surveillance product should be setup and installed by an experienced user/professional for optimal performance. Chinavasion, as a wholesale supplier, does not provide installation services.

Package Contents For Model CVNH-I43

  • Security Camera with Sony CCD (Intelligent Motion Detection, IR)
  • Mounting Hardware
  • Power Adapter (100-240v)
  • Manual - English

FAQ - Frequently Asked Questions

  • Does this camera have audio?
    No. This camera captures video but not audio.

  • Do I have to turn night vision on manually?
    No. This camera has a light sensor that detects light levels. It switches to IR mode automatically.

  • Do you connect cables from the camera outside to your computer or is it cordless?
    The device is not wireless/cordless, you will need to connect cables from the camera to the computer, monitor or TV screen.

  • How does the photo capture feature work?
    When the feature is turned ON and the camera detects movement it moves to focus on that area, zooms in by 2x, and captures a picture. It saves the picture to a SD card and supports 16GB max.

  • How does the intelligent motion detection work when there is there more than one moving object?
    It will zoom the correct distance so it can capture all moving objects within the picture frame. In other words, it will not focus on a single object if another object enters the picture frame, it will zoom out to the correct distance in order to capture all moving objects.

Ordering from Chinavasion provides you with the following benefits:
  • Orders processed and shipped within 24-hours
  • 12 month warranty
  • In-house QC
  • Member discounts
  • Award winning customer support
  • Quantity order discounts
  • Worldwide Shipping

  • Comparing Products? Please Search Chinavasion for Alternative: CVSH-I93 (CCTV Security Camera with Sony Super HAD CCD and Nightvision)
