Security Camera (Sony Interline CCD, Night Vision, Vandalproof)

Product code: CVJZ-I54-PAL

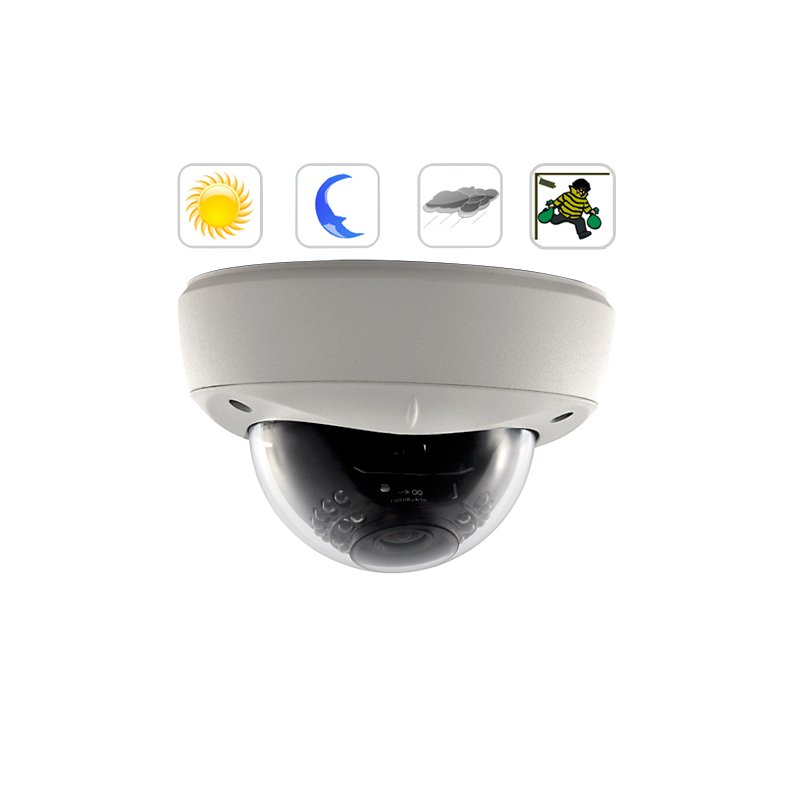

Vandalproof Security Camera
Vandalproof Security Camera
New super Security Camera with Sony Interline CCD with Vari-Focal Lens, night vision, superior 3-axis design, and heavy gauge die-cast housing with polycarbonate dome lens for the best in vandal resistant construction. Protect your home or business with this durable, ultra high quality outdoor/indoor security camera with advanced Sony Interline CCD video imaging sensor.

Anyone concerned about security will appreciate this durable, weatherproof video surveillance camera. With a clear 520 TVL resolution and an ultra clear long viewing range, this powerful camera is perfect for keeping an eye on the outside or inside of your business all day and night, rain or shine. With 360 degrees of pan and tilt 3-axis adjustment, you will never miss anything when the I54 Security Camera is installed on your premises.

With a Sony Interline CCD that gives a high quality image and wide viewing angle plus 30 infrared (IR) LED's that provide excellent nightvision, even in complete darkness, your security team will never miss anything. This new OEM Video Surveillance Camera actully gives you the same exact performance you get from a Samsung, Panasonic, Vitek, IQ or Messoa CCTV security videocamera, but gives it to you in a factory-direct wholesale price. This OEM Security Camera is actually half the price of the same exact Vandal Proof Security Camera models from the "name brands".

For maximum home and business security, nothing beats the I54 Security Camera for improved safety and peace of mind. For all your Security and Surveillance Equipment needs visit us at chinavasion.com.

At a Glance...
  • Factory-direct Security Camera
  • Night Vision with 30 IR LED's
  • Sony Interline CCD
  • Totally Vandalproof
  • Heavy duty cast aluminum housing
  • Weatherproof from -10C to +50C
  • Night and Day Use
  • For Outdoor or Indoor use
  • 560 TV Lines
  • 3 Axis Design
  • Vari Focal Lens
  • Easy to install and position

Manufacturer Specifications

  • Primary Function: Security and Surveillance Camera
  • Video Format: PAL
  • Image Sensor: 1/3 inch Sony Interline CCD
  • Lens: 4-9mm Auto-Iris Varifocal Lens
  • Horizontal Resolution: 520 TV Lines
  • Minimum Illumination: 0 LUX (IR on)
  • Effective Pixels: 752(H) x 582(V)
  • Electronic Shutter: 1/50 ~ 1/120000 sec
  • Exposure Mode: EE (Auto Exposure Electronics)
  • IR: 30 LED's for infrared night vision
  • S/N Ratio: <50dB
  • Viewing Distance:
    - Daytime: 80 - 100 meters
    - Nighttime (IR): 50 meters
  • Operating Temperature: -10 to +50 degrees C
  • Connection Type: BNC
  • Power Source: Power adapter included
  • Dimensions: 150 x 97 mm (diameter x H)
  • Certifications: CE, FCC
  • Manufacturers Ref: SCD87AACBDC5

Product Notes

  • If you want to monitor several cameras and record the footage, don't forget to check out our BNC compatible Digital Video Recorders (DVR) and Camera Processors
  • This camera automatically switches in and out of the nightvision mode as needed
  • 1/3" Sony Interline CCD Image Sensor for super clear day and night video
  • Provides you with 24/7 security
  • Supports PAL color system
  • This is a CCTV (wired) Video Surveillance and Security Camera

Package Contents for Model CVJZ-I54-PAL

  • Security Camera (Sony Super HAD CCD, Vandalproof, 3 Axis, Night Vision)
  • Power Adapter (100-240V, 50/60Hz)
  • Secondary Video Cable
  • Manual - English

FAQ - Frequently Asked Questions

  • Does this camera have audio?
    No. This camera captures video but not audio.
  • Do I have to turn night vision on manually?
    No. This camera has a light sensor that detects light levels. It switches to IR mode automatically.
  • Is this model compatible with TV systems in North America?
    Maybe. If you live in the U.S., Canada or Mexico, then first check to see if your TV or monitor can switch between PAL/NTSC. If your TV or monitor does have this option, then you can use this camera.
  • Is this camera available in an NTSC only model?
    YES. If you need an NTSC model and you will order 25+ pieces then please contact our customer service team.
  • Do you connect cables from the camera outside to a monitor/computer or is it wireless?
    This is a CCTV Security Camera, it is not wireless/cordless. You will need to connect cables from the camera to the computer, monitor or TV screen.
