This product is out of stock, and not coming back.
It may have been replaced by a newer version, see replacement/alternatives listed below.

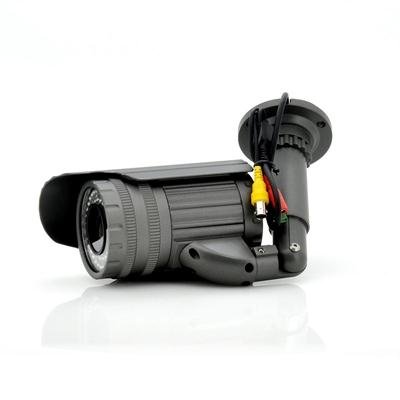

CCTV Security Camera "Nomad" - SDI 1080p, 3X Optical Zoom, PAL/NTSC

Product code: CVYN-I265
CCTV SDI Camera - 1080p, PAL/NTSC
CCTV SDI Camera - 1080p, PAL/NTSC
Introducing one of the most high-end cameras on the market featuring 1080p SDI true HD recording, 3x Optical Zoom and PAL/NTSC compatibility.

Using SDI (Serial Digital Interface), the “Nomad” is able to shoot video in true, 1080p Full HD. Allowing you to see every detail crystal clear on your monitor. On top of that, you’ll also be able to use the 3x optical zoom to zoom in on the smallest detail and still have a perfectly sharp imagine. And to make sure that the image is always in focus, the Auto-Focus function will kick in.

Wherever you are in the world, you’ll be able to install this camera since you can switch between PAL and NTSC in the OSD Menu. And being weatherproof, the “Nomad” can be installed either outside or inside and face extreme weather conditions. The 50 Infra Red LEDs provide night vision up to an incredible 30 meters! Other features include Motion detection, Privacy Zone Masking, RS485 Control and a full OSD menu.

Give your CCTV Network the upgrade it deserves. The “Nomad is available in our warehouse now. Order today and we'll express ship it tomorrow. Brought to you by the leader in wholesale security gadgets, ChinaVasion.

At a Glance...
  • SDI 1080p Recording
  • 3x Optical Zoom
  • Full OSD Menu
  • Auto Focus / One push Focus
  • Motion Detection & Privacy Zone Masking
  • Selectable PAL or NTSC
Manufacturer Specifications

    • Resolution: 1280x1080 (1080p), 1280x720 (720p)
    • Image Frame Rate: 60 FPS (720p), 30 FPS (1080p)
    • Video Output: HD-SDI 1080i 60/50fps, 1080p 30/25fps, 720p 60/50fps
    • Image Compression: PAL/NTSC
    • Motion Detection & Privacy Zone Masking
    • DSP: Ambarella A2i (Full HD)
    • IP66 Weatherproof
    • ICR
    • AGC
    • White Balance: Auto/Cloudy/Tungsten/Fluorescent/Daylight/Manual
    • Exposure compensation: AUTO
    • BLC: Off/Less/Normal/More selectable
    • D/N Mode: Color/B & W/Ext/Auto
    • Mirror Function
    • Transfer Distance: BNC 10 Meter, SYV75-5 Coaxial Cable 130 Meter, With Signal Amplifier up to 330 Meter of SDI Signal TransmissionOperation Temperature: 0-50 Degree Celsius
    • Storage Temperature: -20-60 Degree Celsius
    • Operation Humidity: 20%-60%
    • Power Source: Power Adapter
    • Language: Japanese, Russian, English, Simplify Chinese, Traditional Chinese

    • Image Sensor: 2MP 1/2.7 Inch CMOS Sensor OV2715
    • Lens: f: 2.8mm (Wide) - 9mm (Tele)
    • Viewing Angle: 115.2 (Wide) - 37.1 (Tele) Degrees
    • Optical Zoom: 3x
    • Focus mode: Auto Focus (AF one push)/Manual Focus
    • Electronic Shutter: 1/30 to 1/10000 (Auto-Mode)

    Night Vision
    • Infrared Light: 54 IR LEDs, Night Visibility up to 30 Meters
    • F= F1.8 (IR Lens)
    • Min LUX: 2 LUX with 50 IRE, 1 LUX ICR ON with 50 IRE

    • RS485
    • BNC or BNC to SDI
    • DC IN

    • Main product dimensions: 160x1200x90mm (L x W x D)
    • Main product weight: 1100g
    • Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

    Product Notes
    • SDI Cameras Require a SDI DVR or SDI-HDMI Converter or SDI pc board
    • Nighttime viewing angle may change according to the lightning and environments

    Package Contents
    • SDI Camera
    • Screws
    • Power Adapter
    • User Manual

    Ordering from Chinavasion provides you with the following benefits:
    • Orders processed and shipped within 24-hours
    • 12 month warranty
    • In-house QC
    • Member discounts
    • Award winning customer support
    • Quantity order discounts
    • Worldwide Shipping
    • Certification: CE, FCC, RoHS

    File Formats

    Arabic - SDI الدوائر التلفزيونية المغلقة الأمن الكاميرا; Chinese Simplified - SDI 摄像机安全; Czech - SDI CCTV bezpečnostní kamery; Danish - SDI CCTV Security Camera; Dutch - SDI CCTV Security Camera; French - Caméra de sécurité CCTV SDI; German - SDI-Überwachungskamera; Greek - SDI κάμερα ασφαλείας CCTV; Hebrew - מצלמת אבטחה CCTV SDI; Hindi - SDI सीसीटीवी सुरक्षा कैमरे; Hungarian - SDI CCTV biztonsági kamera; Italian - Telecamera di sicurezza CCTV SDI; Japanese - SDI CCTV セキュリティ カメラ; Korean - SDI CCTV는 보안 카메라; Norwegian - SDI CCTV sikkerhetskamera; Polish - Kamery CCTV SDI; Portuguese - SDI CCTV câmera de segurança; Russian - SDI CCTV камеры безопасности; Spanish - Cámara de seguridad CCTV SDI; Thai - กล้องรักษาความปลอดภัยกล้องวงจรปิด CCTV ของ SDI


    Customer Reviews(0)

    5 out of 5
    5 star rating 5 star rating 5 star rating 5 star rating 5 star rating
    CCTV Security Camera "Nomad" - SDI 1080p, 3X Optical Zoom, PAL/NTSC
    Deliverystarrs 5starrs 5starrs 5starrs 5starrs 5
    Value for Moneystarrs 5starrs 5starrs 5starrs 5starrs 5
    Packagingstarrs 5starrs 5starrs 5starrs 5starrs 5
    Ease of Setup/Usestarrs 5starrs 5starrs 5starrs 5starrs 5
    Function/Performancestarrs 5starrs 5starrs 5starrs 5starrs 5
    Write Review
    Date Launched: Sep 27 2012
