Description:

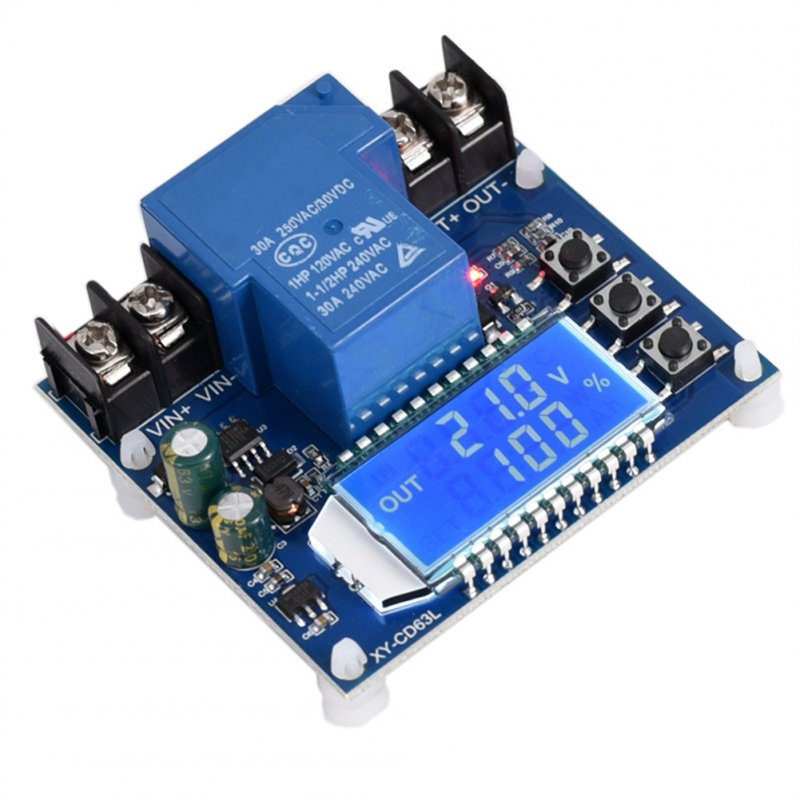

Product Name: Automatic Shutdown Switch Module
Product name: XY-CD63L DC 6V-60V 30A battery charging and discharging voltage monitor
Input voltage: DC 6V-60V
Output voltage: same as input
Control accuracy: 0.1V
Power consumption: <1.5W
Load current: 30A (maximum)
Working mode: charging and discharging mode
Suitable type: 6-60V storage battery, lithium battery
Working temperature: -25℃~80℃
Working humidity: 5%~90%RH
Discharge mode OUT:
1) When the battery voltage is higher than the upper limit voltage value UP, the relay opens and outputs voltage, and the battery starts to discharge. The red indication light lights up and the symbol "OUT" flashes.
2) When the battery voltage is lower than the lower limit voltage dn, the relay closes and outputs no voltage, and the battery stops discharging. The red indication light goes out and keeps showing the symbol "OUT".
Charging mode IN:
1) When the battery voltage is lower than the lower limit voltage value dn, the relay opens, and the battery begins to charge from the charger. The red indication light lights up and the symbol "IN" flashes.
2) When the battery voltage is higher than the upper limit voltage value UP, the relay is closed and the battery stops charging. The red indication light goes out and keeps showing the symbol "IN".
3) If no battery is connected to the output terminals, "nbE" is displayed.
Packing list:
1 x Automatic Shutdown Switch Module
Note:
1. Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
.
