Description:
Product categories: tool
Voltage
1.1.1Measuring range:80～260V
1.1.2Resolution: 0.1V
1.1.3 Measurement accuracy: 0.5%
1.2 Current
1.2.1 Measuring range: 0～10A(PZEM-004T-10A); 0～100A(PZEM-004T-100A)
1.2.2 Starting measure current: 0.01A(PZEM-004T-10A); 0.02A(PZEM-004T-100A)
1.2.3 Resolution: 0.001A
1.2.4 Measurement accuracy: 0.5%
1.3 Active power
1.3.1 Measuring range: 0～2.3kW(PZEM-004T-10A); 0～23kW(PZEM-004T-100A)
1.3.2 Starting measure power: 0.4W
1.3.3 Resolution: 0.1W
1.3.4 Display format
＜1000W, it display one decimal, such as: 999.9W
≥1000W, it display only integer, such as: 1000W
1.3.5 Measurement accuracy: 0.5%
1.4 Power factor
1.4.1 Measuring range: 0.00～1.00
1.4.2 Resolution: 0.01
1.4.3 Measurement accuracy: 1%
1.5 Frequency
1.5.1 Measuring range: 45Hz～65Hz
1.5.2 Resolution: 0.1Hz
1.5.3 Measurement accuracy: 0.5%
1.6 Active energy
1.6.1 Measuring range: 0～9999.99kWh
1.6.2 Resolution: 1Wh
1.6.3 Measurement accuracy: 0.5%
1.6.4 Display format
＜10kWh, the display unit is Wh(1kWh=1000Wh), such as: 9999Wh
10kWh and more, the display unit is kWh, such as: 9999.99kWh

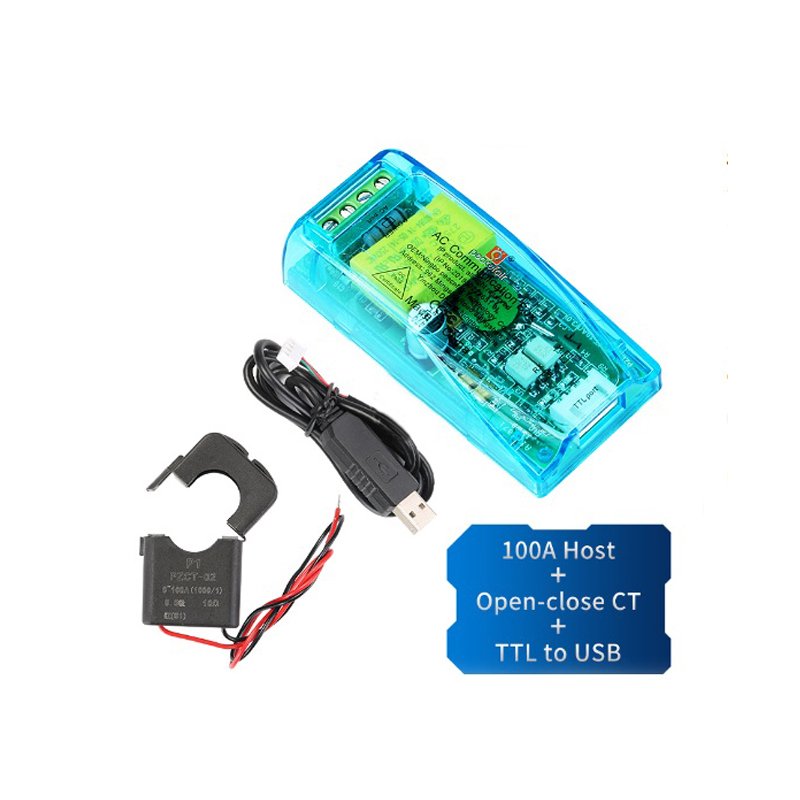

Package Contents:
1 x PZEM-004T AC Voltmeter Ammeter with outcase
1 x split CT
Note:
1-2cm error might exist due to manual measurements, please kindly understand. The colors deviation might differ due to different monitor settings.
.
