Power Supply Mode: DC002 interface DC4-9V typical 5V power supply.
Refer to the official evaluation board circuit and layout.
Output Signal
2.2-4.4G fundamental wave (sine wave)
35M-2.2G fundamental wave frequency division (square wave).
Output Signal Interface: SMA female.
.Description:
Product name:Signal Generator
Output Frequency Range: ADF4351: 35M-4.4G.
Default +-50ppm 25M imported active crystal oscillator. Provide circuit diagram in PDF, and STM32 test program.
Control Mode: Three-wire SPI. Leads out control pin and lock status pin. All functions can be realized, including point frequency, sweep frequency and frequency hopping. The step can be 1K, and the low frequency step can be 0.1K. It depends on the crystal frequency.
Packing list:

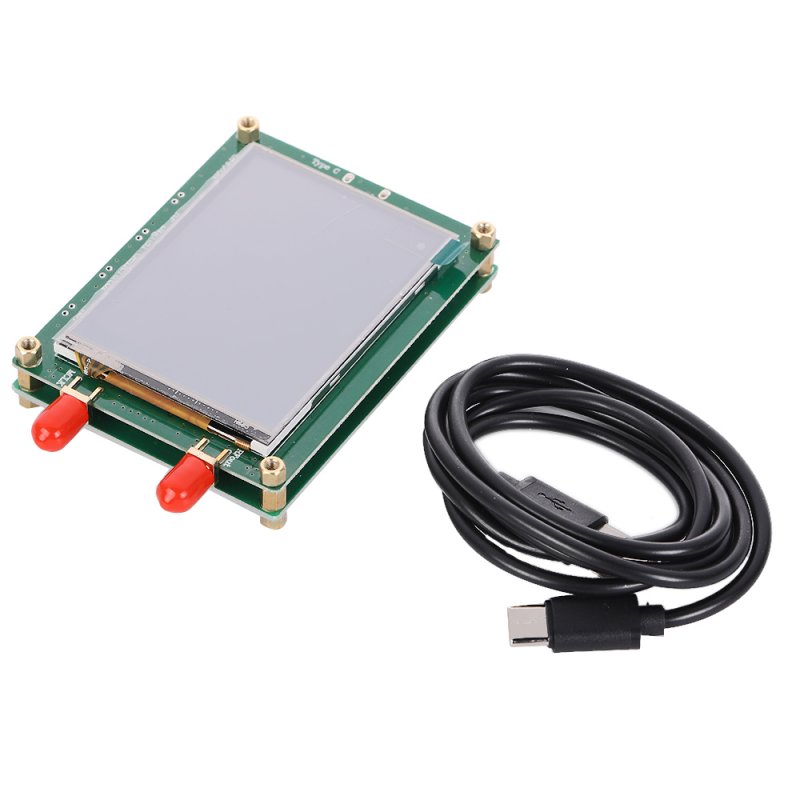

1 x RF Signal Generator
1 x USB Cable
Note: Due to manual measurement, there may be a difference of 1 - 2 mm. The colors deviation might differ due to different monitor settings, please kindly understand.
.
