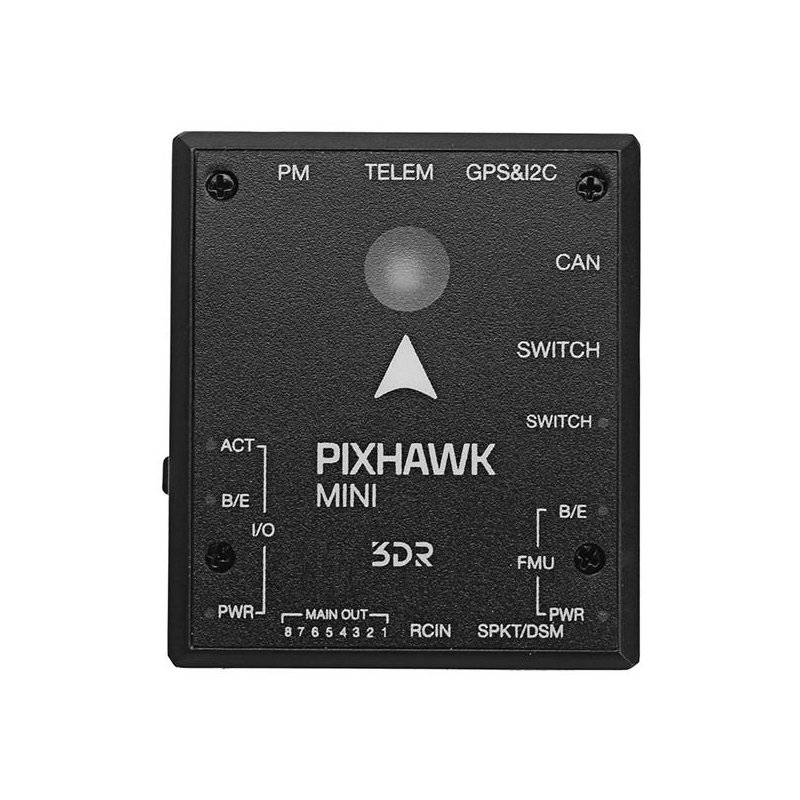

--The 3DR Pixhawk Mini autopilot is a next-generation evolution of the Pixhawk.
--It is about 1/3rd the size of the original Pixhawk and has more powerful processors and sensors.
--The Pixhawk Mini is based on the PX4 open-hardware project and has been optimized for the PX4 flight stack.
.Description:
Item Name: 3DR Pixhawk Mini Autopilot & Micro M8N GPS Built-in Compass & PDB Board
Brand Name: HolyBro
Main Processor: STM32F427 Rev 3
IO Processor: STM32F103
Accel/ Gyro/ Mag: MPU9250
Accel/ Gyro: ICM20608
Barometer: MS5611
Power Module Output: 4.1-5.5V
Max Input Voltage: 45V (10S LiPo)
Max Current Sensing: 90A
USB Power Input: 4.1-5.5V
Servo Rail Input: 0-10V
Dimensions: 38x43x12mm
Weight: 15.8g
GPS Module (Built-in Compass HMC5983):
Based on the M8N,
Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
Industry leading –167 dBm navigation sensitivity
Security and integrity protection
Supports all satellite augmentation systems
Advanced jamming and spoofing detection
Product variants to meet performance and cost requirements
Size: 37x37x12mm
Weight: 22.4g
List of packages:
1x 3DR Pixhawk Mini
1x GPS Module
1x PDB Board
1x bag of cables
1x XT60 Connector
