9CH_INTL version (1080MHz to 1360MHz)
RF power output 28dBm (630mW)
6-36V DC IN (2-8S LiPo)
Button control and LED indicators
Built-in AGC microphone
.Description:
Item type:Video transmitter
Power Consumption: less than 2.5W
Video format: NTSC or PAL
Audio Subcarrier: 6.5 MHz & 6.0MHz
RF Connector: SMA
Weight: 9g ( w/o antanna)
Size: board 36*21.5mm
Pads
+ IN-: 6-36V DC input with reverse polarity protection
VID: Video input
G: Ground
5V: onboard regulator output, Max. 1.5A load on this pad
Aud: Audio 6.5MHz input, onboard microphone shares this rail.
TX & RX: UART for firmware update
Settings
Press and hold the button 2 seconds to enter the frequency setting. Frequency LED blinks
Press the button to select the frequency
When the LED blinks at new frequency, no RF output on this frequency.
New frequency and output will be enabled if no button action within 3 seconds
*** CMS control is not supported for now
Packing list:

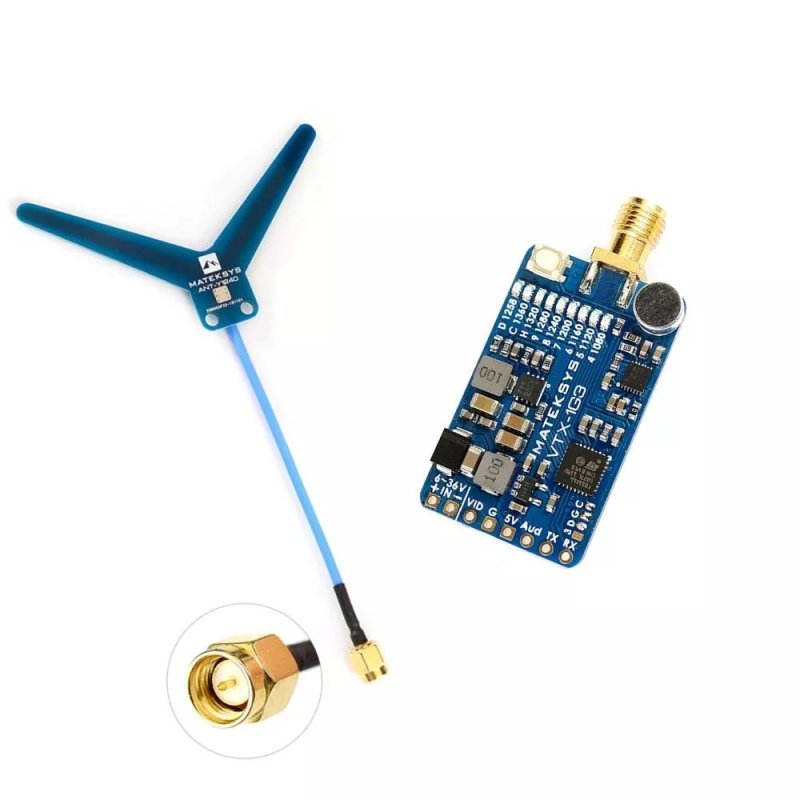

1x 1.2/1.3G Video transmitter VTX-1G3-9(INTL version)
1x Dipole antenna_SMA, center freq 1240MHz
