At a Glance...

• Capture video content in full 1080P definition
• Record your video and audio then share it with the world
• On-board Hot Button for one-click recording makes capturing the action easy
• supports USB and SD card allowing the recoded media to be easily stored

This awesome HDMI full HD video capture device will allow you to make “Let’s Play!” walkthroughs, video blogs and tutorials as well as put finishing touches to your how to YouTube videos.

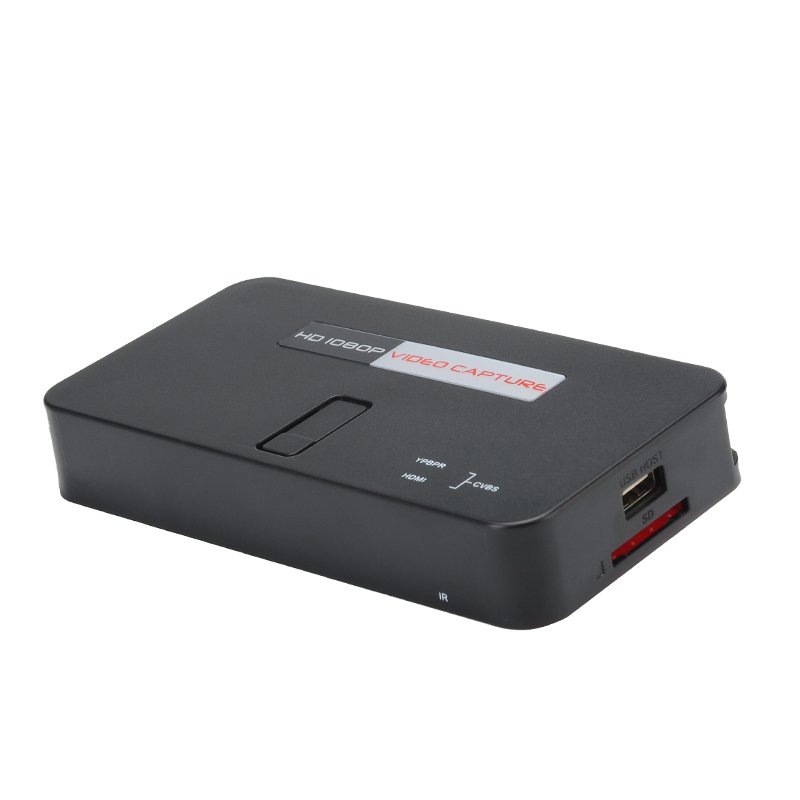

HD 1080P Video Capture Device

The external video capture device is all you need to record 1080P HD video along with audio from your computer, TV, DVD player or games consol. With HDMI video pass through and an onboard hot button for one click capture you can record content from a whole host of devices. The 60 FPS frame rate is great for recording the fast paced action from video games and will capture all the action. With a microphone input you can even overlay audio and add your own commentary as the scene unfolds.

Ideal suited to the video game or movie lover this capture device can be used with most consoles and with and SD card slot as well as USB port there are plenty of easy storage options. A compact design makes it easy to slip into your pocket so portability isn’t an issue.

All you need to do is click one button to record your game play and the accompanying video software allows the media to be edited through an easy to use interface making this a must have for professional video archiving.

The HD 1080P Video Capture Device comes with a 12 months warranty. Brought to you by the leader in electronic devices as well as wholesale video capture devices..

Manufacturer Specifications

General

• Operating System: Windows 8 (32/64 bit), Windows 7 (32/64 bit), Windows Vista (32/64 bit)
• CPU: Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz
• Graphics Card: VGA card with support for DirectX 10.0c and above

Video Input

• Digital: HDMI
• Analog: Component Video, Composite Video

Audio Input

• Digital: HDMI, YPBPR (Component)
• Analog: RCA L / R, 3.5mm Line In, 3.5mm Micro Phone In
• Note: 3.5mm Line In and 3.5mm Micro Phone In

Video Output

• Digital: HDMI (Pass-through from HDMI or Component Input)

Audio Output

• Digital: HDMI (Pass-through from HDMI or Audio RCA L / R Input)
• Analog: 3.5mm Stereo (Pass-through from HDMI or Audio RCA L / R Input)

Decoding

• Hardware MPEG-4 encoder
• Using the Interface
• On-board Hot Button for one-click recording / streaming
• LED indicator for working status

Standard

• Storage Media
• USB Flash Disk, Portable Hard Disk
• Not Support exFAT format

Resolution

• Input / Pass-through: 720x480 (60p), 720x576 (50p), 1280x720p (50p), 1280x720p (60p), 1920x1080 (50i), 1920x1080 (60i), 1920x1080 (24p), 1920x1080 (25p), 1920x1080 (30p), 1920x1080 (50p), 1920x1080 (60p)
• Capture: 720x480 (60p), 720x576 (50p), 1280x720p (50p), 1280x720p (60p), 1920x1080 (50i), 1920x1080 (60i), 1920x1080 (24p) , 1920x1080 (25p), 1920x1080 (30p), 1920x1080 (25p), 1920x1080 (30p)
• Not support up scaling

Recording Format

• Video: AVI MPEG4
• Audio: AAC Stereo
• File: MPEG 1/2/4, WMV HD, QuickTime (MOV)

Recording Quality

• 18Mbps, 1080P/30fps (Max)

Recordings

• 2GB/Per File (Max)

Recording Capacity

• 140MB/Minute, 8.4GB/Hour (Max)
• Recorded into USB Flash/HDD/SD cards

Power Supply

• DC 5V / 2A

Acquisition Format

• Video: AVI, MPEG4
• Audio: AAC, Stereo

Software

• Software: Arc soft Showbiz
• File Editor: Timeline, Storyboard edit, Split, Divide Scenes, Multi Trim Scenes

Ports

• USB
• SD Card Slot
• HDMI In
• HDMI Out
• AV In
• Mic In
• Line Out
• DC In

Dimensions

• Main Product Dimensions: 140 x 73 x 23 mm (L x W x D)
• Main Product Weight: 112g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• HD Video Capture
• USB Cable (for component and composite video )
• Power Adapter
• CD
• User Manual
• AV Cable

Enjoy the following benefits:

• 12 month warranty
• In-house QC
• Member discounts
• Award winning customer support
• Quantity order discounts
• Worldwide Shipping
• Certification: CE, FCC, RoHS
