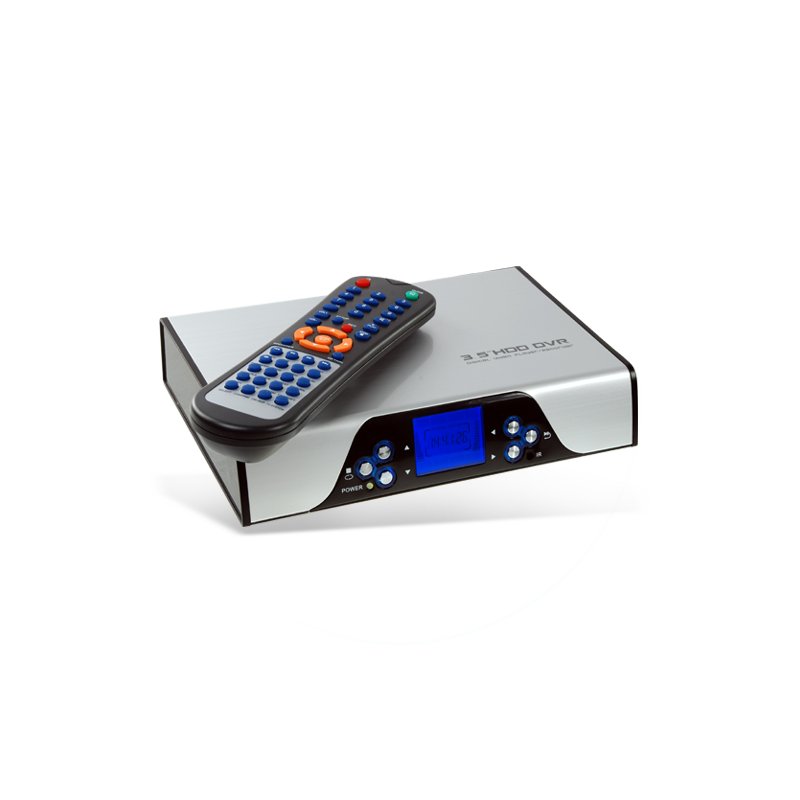

SATA HDD Media DVR Enclosure with AV Recording and Viewing

Average Customer Rating:  based on 6 reviewsprice range: 85.77 - 81.81
Product code: CVSB-HD01
SATA HDD Media DVR Enclosure with AV Recording and Viewing
SATA HDD Media DVR Enclosure with AV Recording and Viewing
Avg Customer Rating:
SATA HDD media DVR enclosure with AV recording and viewing with a modern easy-to-use software interface.

Superb digital video recording (DVR) system in a convenient form factor with a sleek brushed metal finish. This unit has two primary modes of operation, (1) connect this DVR to your TV set to digitally record and playback your favorite TV shows, and (2) load this up with your digital media files from your computer to playback on your big screen TV.

This fantastic system provides convenient one-touch recording (OTR), timeshift feature, recording schedules (editable) and ethernet playback. The system also has a clear LCD status display on the front of the unit to provide helpful information to you. This fully featured system also gives HD output to either 720P or 1080i for high-definition viewing. The unit's first class functionality continues with its impressive support for a vast range of video, movie, picture and audio formats.

All of this feature-rich functionality is easily accessible through the system's remote control unit and user-friendly on-screen OSD menu interface to provide you with effortless navigation. A range of connectivity options are available through the system's card slots and ports. This unit makes it easy to copy and transfer your media files effortlessly to and from the HDD multi-media system and your computer.

A great wholesale price makes this digital video recorder perfect for the resale market, OEM market, or personal/company use. As always, it is available direct to you from the original source for wholesale direct from China electronic products, Chinavasion.

At a Glance...
  • SATA HDD digital video recorder and multimedia player (DVR)
  • 500GB storage capacity
  • LCD status display
  • Plays a huge range of video, music and image formats


Manufacturer Specifications

  • Primary Function: HDD media recording and viewing enclosure
  • Hard Disk Enclosure Information:
    - SATA Enclosure for 3.5 or 2.5 inch drives
    - Max HDD Size: 500GB
    - File System: FAT32 (Stand Alone Media Operation - connected to TV), NTFS (when used for external data storage only)
  • Supported Video Formats: DAT, VOB, IFO, MPG, AVI, MPEG 1, MPEG 2, MPEG 4, DIVX (4&5), XVID
  • Supported Audio Formats: MP3, OGG, WMA
  • Supported Picture Format: JPEG
  • Supported Subtitle Formats: SRT, SMI, SST
  • AV Recording: MPEG 2
  • Resolutions:
    - 480P
    - 576P
    - 720P
    - 1080I
  • Recording Presets:
    - HQ
    - SP
    - LP
    - EP
    - SLP
  • Connections:
    - Component Video (Y,Pb,Pr)
    - USB IN
    - USB OUT (Host) x2
    - HDMI
    - AV OUT
    - AV IN
    - RJ45 Ethernet
    - SPDIF Out (Coax Digital Sound)
  • Video Output: Up to 1080i
  • Aspect Ratios: 4:3 PS, 4:3 LB, 16:9
  • USB: 2.0
  • Memory Card Slot Formats: SD, MMC, MS, MS Pro
  • Compatible Systems:
    - Windows 2000, XP, Vista, Windows7 (32 bit versions)
    - MAC OS
    - Linux
    (Note: If your partition some of the drive in NTFS then only Windows based operating systems will be able to write to it)
  • Languages: English, Spanish, French, German, Italian, Dutch, Russian
  • Power Source: AC power supply
  • Certification: FCC, CE, RoHS
  • Dimension: 215mm x 140mm x 43mm
  • Manufacturer Ref: LFBK7YV2A4J4

Product Notes

  • Built in cooling fan in the bottom of the unit - give it plenty of space for proper ventilation
  • Works with 3.5 or 2.5 inch SATA HDD drives
  • Support for management (Copying and Delete) between Cards, USB, HDD and computer
  • Preview files before you play them
  • Internal formatting (the enclosures OS can format your drive correctly for you)
  • Full Featured Remote Control
  • DIY installation is simple, effective and hassle-free with no special tools required
  • The DVR can also be connected directly to a PC
  • Example AV Recording Time on a 250GB drive (or Partition):
    - High: 50 Hours
    - Medium: 100 Hours
    - Low: 150 Hours
  • Note: This product is not sold with a Hard Disk included. You will need to purchase a hard disk drive separately.
  • If you plan to resell this item in your own country, the most common category names for this product are - HDD Media Player programban, HDD Gehäuse, caja HDD, HDD recinto, HDD ograjenega prostora, Mobil számítástechnika

Package Contents

  • Model CVSB-HD01 Hard Drive Enclosure
  • Manual - English
  • CD Driver
  • Component OUT cable
  • x2 Composite AV cable
  • Mini-USB cable
  • Remote Control
  • Coax Digital Sound Out
  • Mounting Hardware
  • Power Supply (100-240V, 50/60Hz)


Customer Reviews(6)

5 out of 5
5 star rating 5 star rating 5 star rating 5 star rating 5 star rating
SATA HDD Media DVR Enclosure with AV Recording and Viewing
Deliverystarrs 5starrs 5starrs 5starrs 5starrs 5
Value for Moneystarrs 5starrs 5starrs 5starrs 5starrs 5
Packagingstarrs 5starrs 5starrs 5starrs 5starrs 5
Ease of Setup/Usestarrs 5starrs 5starrs 5starrs 5starrs 5
Function/Performancestarrs 5starrs 5starrs 5starrs 5starrs 5
Write Review
Good device

Reasonable and working. Show also DVD menu

Good - Easy to Use

Easy to Set-up, in 10 minutes I start to digitalize my old vhs movies, and using the network feature I access my 1TB movies coolection. Fantastic

is awesome for the price

i got it a few days ago and is so easy to use. It has alot of cables and features that i could not have even imagined. I love it and so does my family


Good purchase I am happy


Also supports the copyfrees solution. Would be nice if the unit provided NAS support, but if you know telnet commands the unix cp command works fine. Their is a network copy command using menues from the remote, but what fun is that. The suplied software will only format a 500gb disk, haven't tried to format 1.5tb to fat32 using fat32format yet. Does not support NTFS for writes, reads work fine.

Date Launched: Dec 23 2008
