Description:
Model:TV Box
CPU: Amlogic S905X2 Quad-core Cortex-A53 12NM
GPU: ARM Dvalin MP2 GPU
Support OpenGL ES3.2/OpenCL2.0
RAM: 2GB/4GB
ROM: EMMC 32GB/64GB
OS: Android 8.1
Network Connections:
WIFI: WIFI module 2T2R IEEE 802.11 a/b/g/n/ac (2.4G&5G)
Support 20MHz/40MHz/80MHz
300Mbps in 802.11n, 876Mbps in 802.11ac
Bluetooth: V4.2 Support 4.2 + HS, BLE, ANT and compatible with v1.2, 2.X
Ethernet Network: RJ45 IEEE 802.3 10/100M/1000M
Interface Configuration:
Memory card socket:
External memory SDHC/SDXC Support 4GB/8GB/16GB/32GB/64GB
USB interface: Data transfer supportive USB2.0x1 USB3.0x3
AV jack: AV output 3.5mm jack CVBS 480i/576i standard definition output
DC connector: Power 5.5mm jack
HDMI interface: Audio/Video output HDMI 2.1, 4Kx2K@75 Max resolution output.
Support transmitter with 3D, Dynamic HDR, CEC and HDCP 2.2
SATA jack: Data transfer supportive support 2.5 HDD 500G/1T/2T (Power consumption < 4W)
S/PDIF jack: Audio output S/PDIF OUT
VIDEO:
Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
Supports multiple "secured" video decoding sessions and simultaneous decoding and encoding
Video/Picture Decoding
- VP9 Profile-2 up to 4Kx2K@60fps
- H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
- AVS2-P2 Profile up to 4Kx2K@60fps
- H.264 AVC HP@L5.1 up to 4Kx2K@30fps
- H.264 MVC up to 1080P@60fps
- MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
- WMV/VC-1 SP/MP/AP up to 1080P@60fps
- AVS-P16 (AVS+)/AVS-P2 JiZhun Profile up to 1080P@60fps
- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
- Real Video 8/9/10 up to 1080P@60fps
- Multiple language and multiple format sub-title video support
- MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
- Supports JPEG thumbnail, scaling, rotation and transition effects
- Supports*.mkv,*.wmv,*.mpg,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and*.jpg file formats
Video/Picture Encoding
Independent JPEG and H.265/H.264 encorder with configurable performance/bit-rate
JPEG image encording
H.265/H.264 video encoding up to 1080P@60fps with latency
AUDIO:
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
Build-in TDM/PCM/I2S ports with TDM/PCM mode up to 384 kHz x 32bits x 8CH or 96 kHz x 32bits x 32ch and I2S mode up to 384 kHz x 32bits x 8CH
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Image: HD JPEG, BMP, GIF, PNG, TIF
Language: English French German Spanish Italian etc multilateral languages
Packing list:

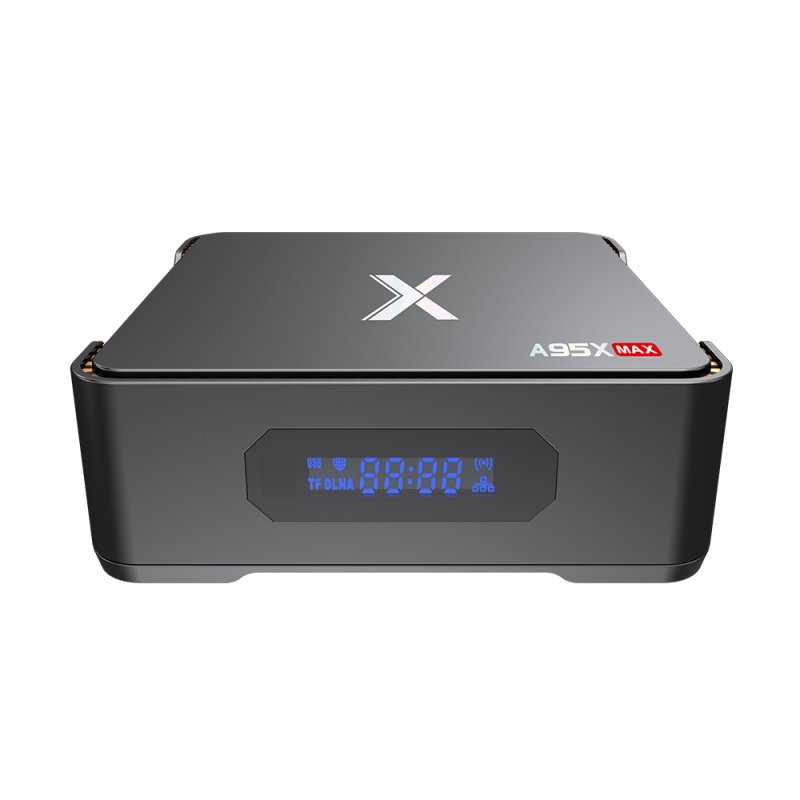

1* A95X MAX
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
.
