• Resuming print after power reset, easy operation, small motion noise, heating-up quickly.
• Safe and reliable, with overcurrent protection, more economical for electricity.
• Featuring 0-200/s fast speed and ±0.1mm high precision printing.
• Support ABS,PLA,HIPS and other material, and its printing size is 220*270*300mm.

Assembly by modularization

• The first step, install the aluminum frame on the base platform.
• The next step, install the printing head on the crossbeam of the frame.
• The third step, install the adjusting block of the belt on the crossbeam and adjust.
• The fourth step, lock the screw rod on the coupling tightly.
• The fifth step, install the material rack on the power box.

Precise stainless steel leading screw

• Movement is accurate and stable by T type rotating screw.

High end stepping motor

• Lower noise and stronger printing stability.

Overcurrent protection

• When the printer is short-circuited, the fuse will be disconnected and the protection circuit will not be damaged or burned.

Pulley components of precise motion

• Low voice, longer for wear-resistant, and zero gap.
• Smoother movement, and higher accuracy in printing.

Nozzle bu pure metal

• Nozzle can reduce plugging, fast heating up and durable.

High-quality control board

• Hotbed, heating pipe, the control chip and overcurrent protection of fan can prevent printer damaging.

Multi-axis differential compensation

• Make the edge of the circular model more smooth and delicate.

• Brand: HUAXU3D
• Model: X1
• Platform Board: Aluminium Alloy
• Platform Temperature: MAX100℃
• Frame Material: Aluminum Profile Frame
• Memory Card Offline Print: SD card,TF card
• Material Diameter: 1.75mm
• LCD Screen: YES
• Nozzle Quantity: 1
• Nozzle Diameter: 0.4mm(Standard)
• Nozzle Temperature: MAX260℃
• Model Supporting Function: YES
• System Support: Windows,Lunix, Mac etc
• Print Speed: 0-200mm/s(MAX)
• Language: ENGLISH
• File Format: G-code, stl, Jpg etc
• Engraving Accuracy: 0.1mm
• Current(mA): 24V,15A
• Voltage: 110/220V
• Host Computer Software: Cura, Repitier-host, Simplify3D etc
• Supporting Material: PLA,ABS,HIPS,PETG, FLEXIBLE
• Working Power Input: AC 110/220V, Output
• Product Forming Size: 220mm*270mm*300mm(L*W*H)
• Connector Type: USB,SD Card
• Voltage Range: AC 110V/220V
• Layer Thickness: 0.05---0.3mm
• XY-axis Positioning Accuracy: 0.011mm
• Z-axis Positioning Accuracy: 0.0025mm

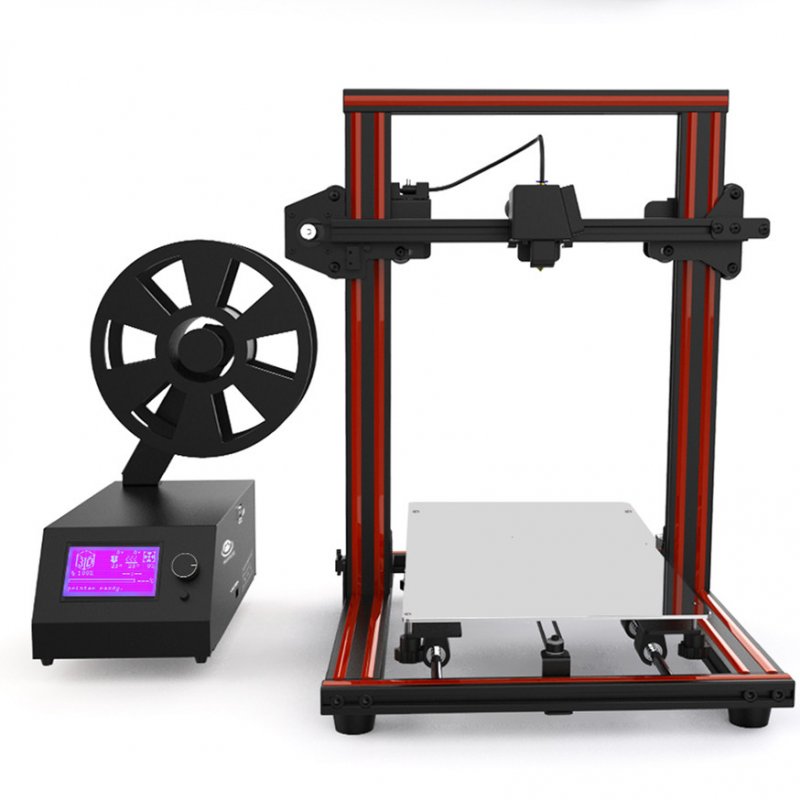

• 1* 3D Printer
