At a Glance... - Trace cables and wires without damaging the insulation
- Scan for specific types of cables (video, audio, etc) in a bundle
- Detect cable problems, including breaking points and shorts
- Inspect voltage attributes of wires and cables in your home
The handheld multi-purpose wire tracker and tester is a simple and practical tool for network engineers, installers, wiring specialists, home remodeling enthusiasts and more. This portable device will help you trace wires and cables without ripping through the insulation, as well as test and identify problems in network cables.
Trace Wires and Cables, Test and Identify Problems
The seemingly simple device comes with lots of functions, making it an indispensible gadget in home remodeling projects, as well a useful tool for professionals.
- Cable Tracing: with the Wire Tracker, you will be able to scan for specific types of cables (Internet, video, etc), easily separating them from the bundle.
- Cable Testing: the Wire Tracker can also help you detect problems with cables and wires, such as breaking points and more.
- Cable Voltage Testing: you can also inspect some basic voltage attributes with the Wire Tracker, like positive or negative characteristics.
- Cable Shorts Detection: with the Wire Tracker you can also find out if a phone cable has shorts.
Simple, Portable and Easy-To-Use

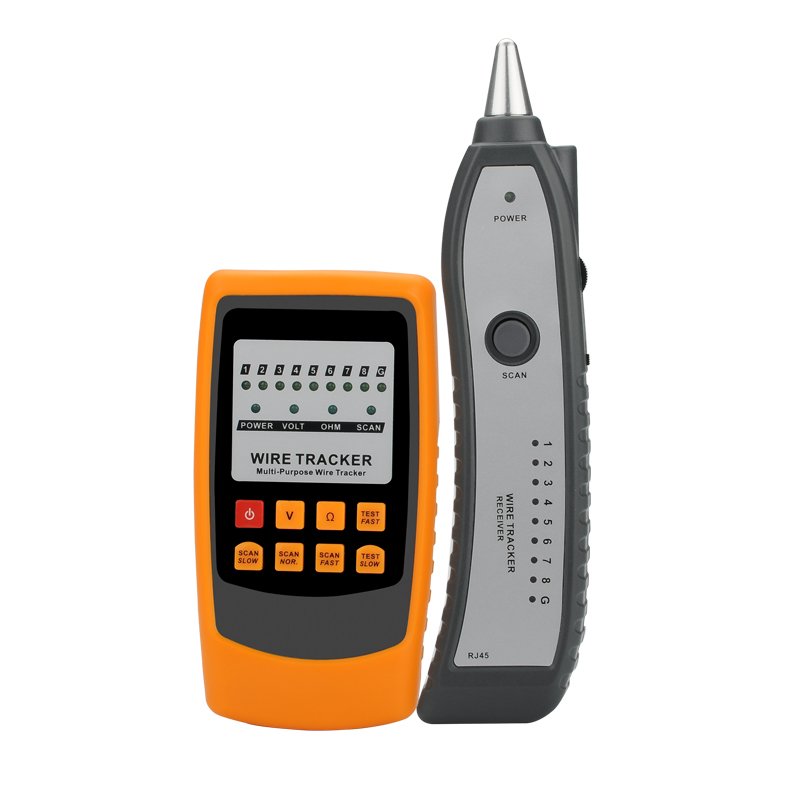

The Wire Tracker is very easy to use and comes with a simple and convenient design. You will have a tracer and receiver, both coming with several controls to get the results that you want.
Scanning for wires and cables is an easy task and you will get sound alerts when you get close. The tracer even comes with a sound control wheel on the side, letting you turn up the sound higher if you are working in a noisy environment. You will even have a headphone jack for plugging your headphones. The Wire Tracker uses one 6F22 9V battery and 1.5V AAA batteries (not included in the package).
This Handheld Wire Tracker And Tester comes with 12 months warranty. Brought to you by the leader in electronic devices as well as wholesale electronic tools, Chinavasion.
. Manufacturer Specifications General - Display: LED
- Signal Tracing Transmit Distance: Up to 1km
- Operating Temperature: -10 to 40 Degrees Celsius
- Operating Humidity: 10% to 95%
- Storage Temperature: -20 to 60 Degrees Celsius
- Power Supply: 1x 6F22 9V battery and 3x 1.5V AAA battery (Not Included)
- Can use for the long distance wiring tracing
- Wiring voltage existence inspection.
- Wiring voltage anode or cathode characteristic measuring
- Low battery indication and flashlight
- Tracing sensitiveness and volume adjusting
- Headphone jack output
Ports Dimensions - Main Product Dimensions: 63 x 119 x 30 mm (L x W x D)
- Main Product Weight: 120g
- Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.
Package Contents - Wire Tracker
- User Manual
- Crystal Head Line
- Alligator Clip Line
Ordering from Chinavasion provides you with the following benefits: - 12 month warranty
- In-house QC
- Member discounts
- Award winning customer support
- Quantity order discounts
- Worldwide Shipping
- Certification: CE, FCC, RoHS
