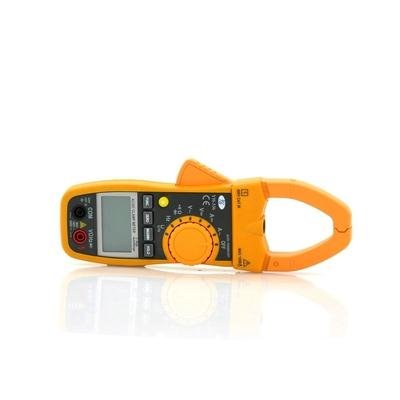

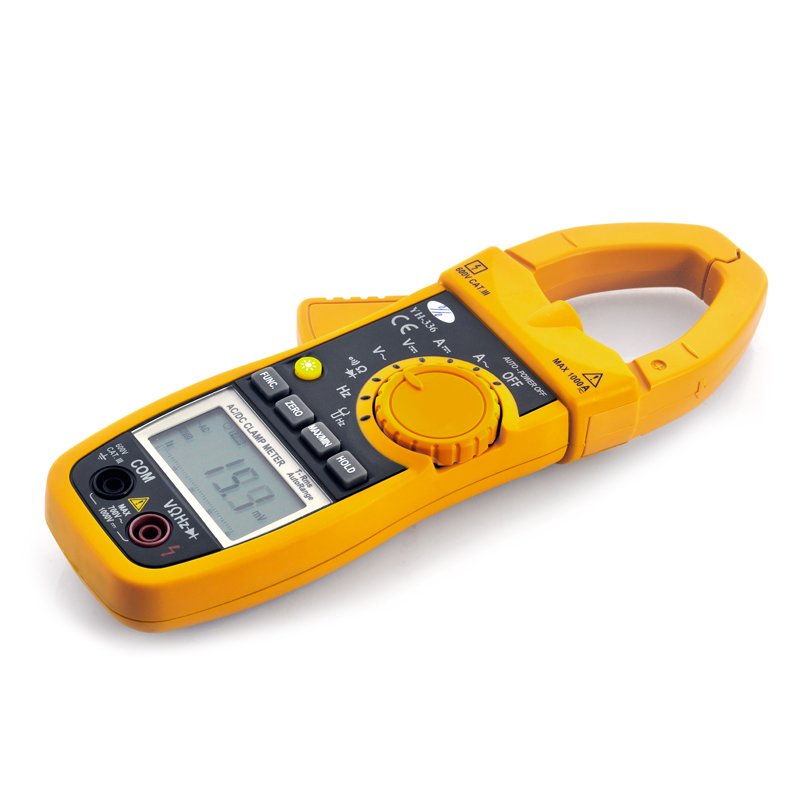

DC AC Clamp Meter Multimeter - Continuity + Diode Test, True RMS for AC

Product code: CVAAW-G574

What Do Customers Buy Together With This Item?

DC AC Clamp Multimeter w/ True AC RMS
DC AC Clamp Multimeter w/ True AC RMS
DC/AC Clamp Meter Multimeter with full spectrum AC and DC battery testing as well as continuity and diode testing, true RMS for AC, and more is the perfect and easy method for your electrical DIY work.

This is an easy to use clamp meter as used by electricians as a way to measure very high currents (hundreds of amperes). The current clamp uses its two opening jaws to clamp around an electrical conductor allowing the properties of the electric current in the conductor to be measured without physical contact with it or needing to disconnect it for insertion through the probe.

Using this DC AC clamp meter you can easily measure DCV/DCA + ACV/ACA current info, check continuity and diodes, have true RMS results for AC current and voltage, as well as have a bevy of useful one touch functions like an auto zero key, a MIN/MAX counting, and holding data. The backlight LCD will display all your functions, and if left on too long the current probe even has a power off function which will save you battery life.

Useful fault finding and field service work as well as simple and safe to use, get this great home and construction DIY AC/DC voltage and current clamp at an unbeatably low wholesale price and in stock and able to be dispatched within 24 hours of ordering. Brought to you by the best source of wholesale electronics and cool gadgets, Chinavasion.

At a Glance...
  • Simple and Safe AC/DC Clamp Meter Multimeter
  • DCV/DCA + ACV/ACA Current Testing
  • Continuity + Diode Testing
  • True RMS for AC
  • Backlight Display
  • Bevy of Function Keys
Manufacturer Specifications

    • Material: Secondary Injection Molding Case
    • On Board Buttons: Func, Auto Zero, Max/Min, Data Hold
    • DCV Test: 4/40/400V +/- 0.8%, 1000V +/-1.0%
    • ACV Test: 4/40/400V+/-1.0%, 700V+/-1.2%
    • DCA Test: 400/1000A +/-3.0%
    • ACA Test: 400/1000A/= 600A +/-3.0%
    • Continuity Test
    • Diode Test
    • Resistance: 400/4k/40k/400k/4M Ohm +/- 1.0%, 40M Ohm +/-2.0%
    • Frequency: 40Hz to 100kHz +/- 0.1% (From Test Terminal), 40Hz to 400Hz +/- 0.1% (From Current Clamp)
    • Auto/Manual Range
    • True RMS for AC Voltage and Current
    • Auto Zero Key for DCA
    • SMT (Surface Mounted Technology) Application
    • Jaw Lighting
    • Auto Power Off
    • Power Source: 3x 1.5V AAA ( Not Included)

    • Display: 4000 Counts + 42 Segments Bar Graph
    • Backlight
    • Non Touchscreen

    • Main product dimensions: 225x70x28mm (L x W x D)
    • Main product weight: 305g
    • Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

    Package Contents
    • DC AC Clamp Meter Multimeter
    • Pair Multimeter Pens (Product Specific)
    • User Manual (Product Specific)
    • Carry Bag (Product Specific)
