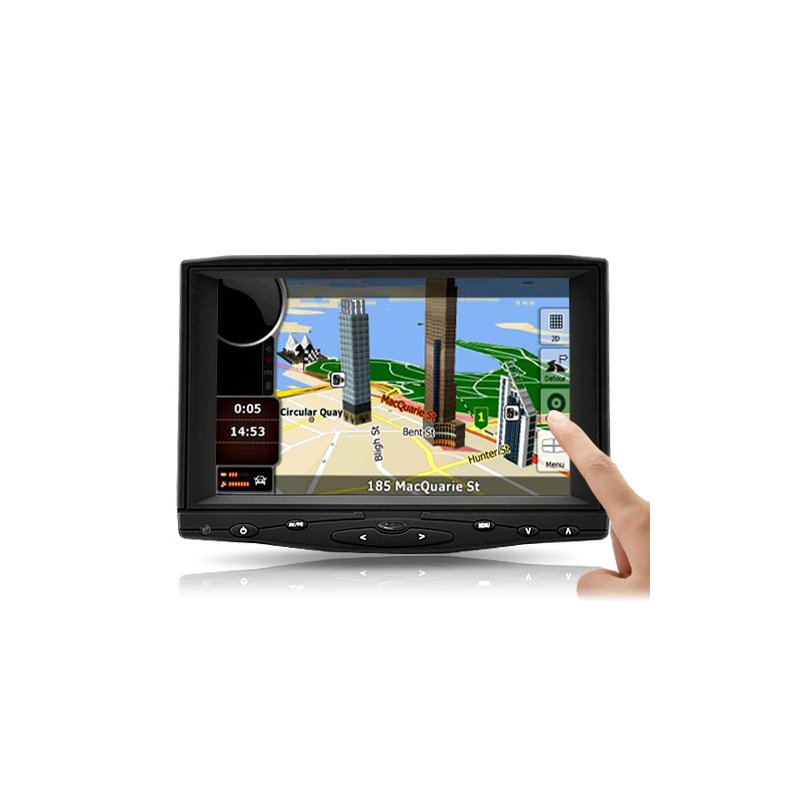

7 Inch HD Touchscreen Car Monitor (HDMI, AV, VGA)

Average Customer Rating:  based on 1 reviewsprice range: 142.7 - 136.68
Product code: CVFQ-E123
7 Inch Car LCD Monitor with HDMI, AV and VGA
7 Inch Car LCD Monitor with HDMI, AV and VGA
$144.54  $142.70
Avg Customer Rating:
This 7 inch touch screen monitor is ideal for use in your car, home or even in your office. Giving you full touch control! Use the included stylus or your finger, and enjoy the convenience of accessing your application and folders with full touch input commands right on the crisp HD touchscreen.

With its HDMI signal input and 7" LCD touchscreen along with 2 AV inputs, and an outstanding display in a crystal clear 1720x1440 pixels. This 7 inch HD touch screen car monitor comes with display driver auto-install for Windows users, Linux and MAC. It also comes with an HDMI port, a built-in stylus and a fold-in stand that allows for desktop and tablet-style usage.

This multi-purpose touchscreen monitor with VGA & HDMI input provides an easy way of using your PC in the car. Simply pair this car touchscreen monitor with a WiFi enabled laptop/notebook computer and finally have Internet in your car, like you've always wanted.

This touchscreen monitor also includes three AV inputs so you can integrate it with your car's rear view camera and AV systems easily. This car based monitor also allows mouse cursor control with a stylus or finger, giving you freedom over your in-car user experience.

At a Glance...
  • 7 inch touchscreen monitor
  • HDMI input
  • 2 video inputs
  • VGA input works with any OS
  • Comes with all cables & mounting hardware
Manufacturer Specifications

    • Color System: PAL-4.43, NTSC-3.57
    • Display Ratio: 16:9, 4:3
    • Viewing Angle: 70/70, 50/60 (L/R, U/D)
    • Video Signal Input: 0.7 - 1.4Vp-p/75O
    • Compensation Accuracy: 25 Points
    • Touchscreen Calibration: 4, 9, 25 Point
    • VGA Signal Input: H:30 - 60KHz, V:60-75Hz
    • Report Rate RS232: Max. 160 points/sec, USB: Max. 160 points/sec, PS/2: Max. 140 points/sec
    • Touch Response Time: Max. 35 ms
    • Pin Out Definition: 4 Wire: X+, Y+, X-, Y-, 5 Wire: UL, UR, COM, LR, LL, 8 Wire: X+, X+ref, Y+, Y+ref, X- , X-ref, Y-, Y-ref
    • Multi Controller Support
    • Mouse Emulation
    • Sound Notifications
    • COM Port Support: COM 1, COM 256 for Windows and Linux, COM 8 for DOS
    • Color: Brightness, Contrast, Color Temperature
    • Adjust: Auto Config, H Position, V Position, Phase, Clock
    • OSD
    • Operating temperature: 0 to 50 Degrees Celsius
    • Storage Temperature: -40 to 80Degrees Celsius
    • Operation Humidity: 95% at 60 Degrees Celsius
    • Supported Operating Systems: Windows 95, 98, ME, NT4, 2000, XP, Windows 7
    • Supported Operating Systems for Touchscreen Software: Windows 97SE, XP, Vista, Windows 7, Linux, MAC
    • Power Source: Power Adapter or Car Charger
    • Power Requirements: +5VDC (Maximum 100mA, Typical 70mA, 50mV Peak to Peak Maximum Ripple)
    • Languages: English, Chinese, French, Italian, German, Spanish, Japanese, Russian

    • Display Size: 7 Inch
    • Display Resolution: 800x480
    • Supported Display Resolution: 320x200, 640x200, 640x350, 640x480, 800x600, 1024x768 and 1280x1024
    • UP Resolution: 1720x1440 (VGA)
    • Brightness: 450cd/m2
    • Contrast: 500:1
    • Resistive Touchscreen

    • VGA
    • AV IN
    • Video IN (No Sound, For Rearview Camera)
    • HDMI
    • DC IN
    • USB

    • Main Product Dimensions: 209x145x35mm (L x W x D)
    • Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

    Package Contents
    • 7 Inch Touchscreen Monitor
    • Stand
    • Car Charger
    • CD-ROM with Driver
    • USB Cable
    • Remote Control
    • AV Cable
    • Pen Stylus
    • Power Adapter
    • User Manual

    Ordering from Chinavasion provides you with the following benefits:
    • Orders processed and shipped within 24-hours
    • 12 month warranty
    • In-house QC
    • Member discounts
    • Award winning customer support
    • Quantity order discounts
    • Worldwide Shipping
    • Certification: CE, FCC, RoHS

    Foreign Language Keywords

    Arabic - مقاس 7 بوصة تعمل باللمس سيارة; Chinese Simplified - 7 英寸高清触摸屏车载显示器; Czech - 7 Inch HD dotykovou obrazovkou auto Monitor; Danish - 7 Tommers HD Touchscreen bil skærm; Dutch - 7 Inch HD Touchscreen auto Monitor; French - Moniteur de 7 pouces HD écran tactile voiture; German - 7 Zoll HD Touchscreen Auto Monitor; Greek - 7 Ιντσών HD αυτοκίνητο οθόνη αφής οθόνη; Hebrew - 7 אינטש HD מסך מגע רכב צג; Hindi - 7 इंच HD Touchscreen कार मॉनिटर; Hungarian - 7-Lassan mászik HD érintőképernyős autós Monitor; Italian - Monitor 7 pollici HD Touchscreen Car; Japanese - 7 インチ HD タッチ スクリーン車モニター; Korean - 7 인치 HD 터치 스크린 자동차 모니터; Norwegian - 7 Tommers HD-berøringsskjerm bil skjerm; Polish - 7-Calowy HD ekran dotykowy Car Monitor; Portuguese - 7 Polegadas HD Touchscreen carro Monitor; Russian - 7-Дюймовый монитор HD сенсорный автомобиля; Spanish - Coche de la pantalla táctil Monitor de 7 pulgadas HD; Thai - จอสกรีนรถ HD 7 นิ้ว


    Customer Reviews(1)

    5 out of 5
    5 star rating 5 star rating 5 star rating 5 star rating 5 star rating
    7 Inch HD Touchscreen Car Monitor (HDMI, AV, VGA)
    Deliverystarrs 5starrs 5starrs 5starrs 5starrs 5
    Value for Moneystarrs 5starrs 5starrs 5starrs 5starrs 5
    Packagingstarrs 5starrs 5starrs 5starrs 5starrs 5
    Ease of Setup/Usestarrs 5starrs 5starrs 5starrs 5starrs 5
    Function/Performancestarrs 5starrs 5starrs 5starrs 5starrs 5
    Write Review
    Great little screen

    The monitor is great, picture quality is good. The combination of HDMI and VGA input makes it really useful for our troubleshooting needs. The power adapter is an international one with an adapter, it works but is a little finicky, fortunately I have plenty of compatible 12V regulated power supplies.

    Date Launched: Jul 27 2010
