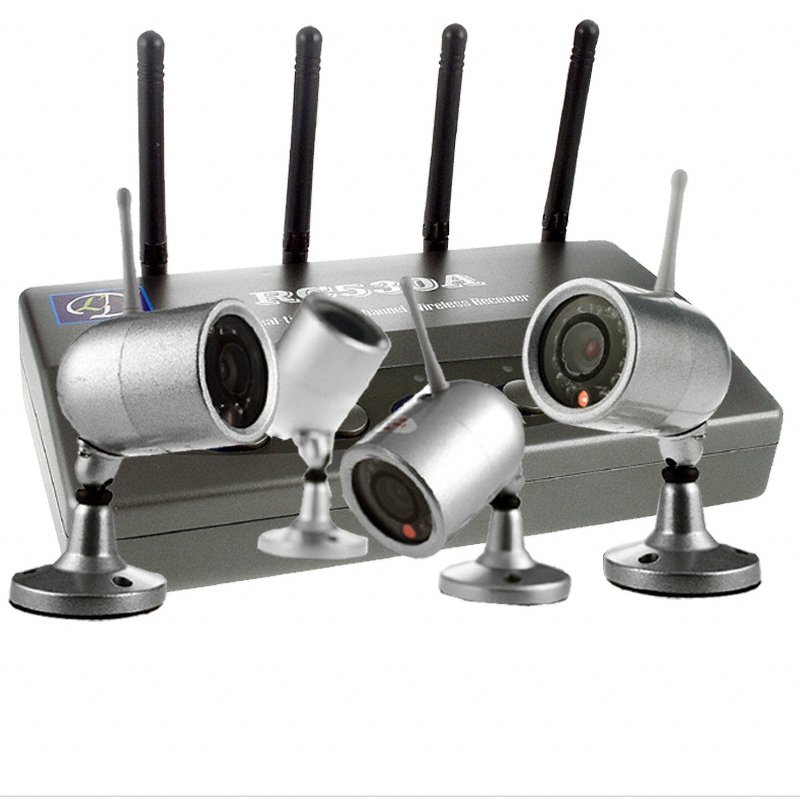

Wireless Night Vision Camera Kit NTSC
Wireless Night Vision Camera Kit NTSC
$148.19
.
4 high quality wireless night vision cameras and wireless receiver security set for great night or day surveillance. All 4 of the wireless receivers have an IR range of up to 7 meters and have a built in MIC for audio surveillance, and as an added bonus, the wireless receiver can pick up the audio and video transmission up to 100 meters away. This security package comes with the Chinavasion 12 Month Warranty, along with no M.O.Q., making this a perfect choice for personal and office security.

This product uses the NTSC color system

.

China Manufacturer Specification

Receiver Specifications

  • Receiving Frequency: ISM 2400~2481Mhz
  • Intermediate Frequency: 480Mhz
  • Frequency Stabilization: +/-100Khz
  • Demodulation Mode: FM
  • Antenna: 50ohm SMA
  • Receiving Sensitivity: <-85dBm
  • Video Output: 1Vp-p@75, S/N>38dB
  • Audio Output: 1Vp-P@600
  • Power Adapter: DC 5V/1500mA
  • Dimension: 205mm x 120mm x 43mm (L x W x D)
  • Four Channels Available
  • Channel Scan and Channel Skip for multiple Cameras

Camera Specifications

  • Image Device: 1/3 Inch OmniVision CMOS
  • TV system: NTSC 510(H)x496(V)
  • Horizontal Definition: 380TV Line
  • Angular Field of View: 45deg(f=6mm)
  • Minimum Illumination: 0Lux
  • Built in 12 IR LED for 7m night vision range
  • Synchronization System: Internal
  • Scanning Freq(H):15.734KHz NTSC
  • Scanning Freq(V):60Hz NTSC
  • Backlight Compensation: Auto
  • Electronic Shutter: 1/50(1/60)~1/100,000sec
  • White Balance: Auto
  • S/N Ratio: >48dB
  • Gamma Correction: >0.45
  • Operation Temperature: -10~50 deg C
  • Transmission Frequency: ISM 2,400~2483MHz
  • Locked Frequencies
  • Power Adapter: DC12V/500mA
  • Dimension: 44x100 camera circumference x L
  • Waterproof
  • Built in Microphone
  • Recommended Range for Objects at night: 1-7M. Max effective range 7M.
  • Recommended Range for Objects at Day: 1-10M. Max effective range 15M
  • Transmission Range: 100m without interference
  • Manufacturer Ref.: ZXWAZWZL88MC
  • Manufacturer and Origin: China
  • Login for Wholesale Discount Price

Even lower prices available for you if you're ordering in larger wholesale quantities. Get your samples first then contact us for your personal discount quotes!
