Wireless IR night vision camera security set with 30 IR LED's for recording in low and no light environments. During the day, a regular security system does the job fine, what about at night? This model is what any business or home needs for 24/7 day or night safety.

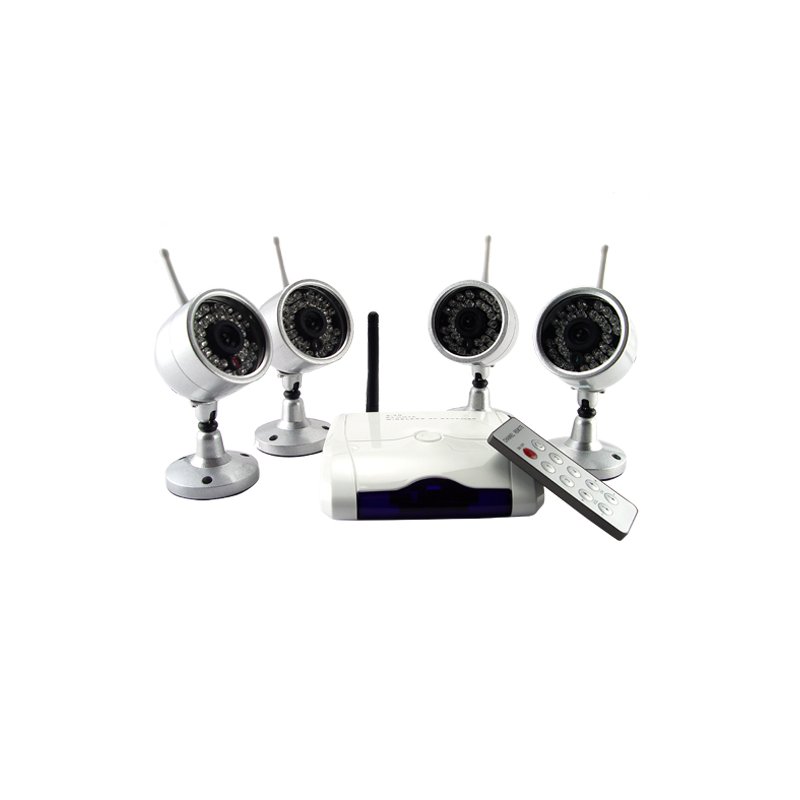

The Wireless IR Night Vision Camera Security Set comes with a Wireless Receiver and 4 Wireless Infrared (IR) cameras. The wireless receiver features 4 selectable channels, and can be used with a computer via a USB, hooked into a viewing monitor or with a video recording device. The night vision cameras have a range of 12 meters allowing you to place them throughout a large room and view the action in every corner.

This particular Camera Security Set is so complete it even comes with a remote controller to comfortably operate and view live video feeds during the day or night from the comfort of your chair. In addition, the wireless cameras will automatically switch on the IR function when lighting conditions change, as night sets in the 30 IR LED lights will come on and you will be able to see instantly with out any delay.

A high performance security system designed with high end components and combining the latest technology, this all-in-one kit is simple to setup and will provide you peace of mind. This model CVD-43A802X4-PAL comes at with no M.O.Q. and is available at a direct to you Chinavasion low wholesale price.

At a Glance...

• Record straight to your computer via the USB connection.
• Connect to your TV or monitor and view 4 different video feeds.

This product uses PAL color system.

.

China Manufacturer Specifications

• Receiver Specifications:
  - Primary Function: Wireless security system with nigh vision
  - Receiving Frequency: ISM 2400~2483Mhz
  - Intermediate Frequency: 480Mhz
  - Frequency Stabilization: +/-100Khz
  - Demodulation Mode: FM
  - Antenna: 50ohm SMA
  - Receiving Sensitivity: - Video Output: 1Vp-p@75, S/N>38dB
  - Audio Output: 1Vp-P@600
  - Power Adapter: DC 5V/500mA
  - Dimension: L:120 x W:99 x D:30 (mm)
  - USB plug for computer access (compatible with Windows XP only)
  - Manual or Remote Controlled
  - Four Channels Available
  - Channel Scan and Channel Skip for multiple Cameras
• Camera Specifications:
  - Image Device: 1/3 Inch OmniVision CMOS
  - TV system: PAL 628(H)x568(V) )
  - Horizontal Definition: 380TV Line
  - Angular Field of View: 45deg(f=6mm)
  - Minimum Illumination: 0 Lux
  - Built in 30 IR LED for 12m night vision range
  - Synchronization System: Internal
  - Scanning Freq(H): 15.625KHz PAL
  - Scanning Freq(V): 50Hz PAL
  - Backlight Compensation: Auto
  - Electronic Shutter: 1/50(1/60)~1/100,000sec
  - White Balance: Auto
  - S/N Ratio: >48dB
  - Gamma Correction: >0.45
  - Operation Temperature: -10 to 50 degrees C
  - Transmission Frequency: ISM 2,400~2483MHz
  - Locked Frequencies
  - Power: Via power adapter
  - Dimension: Diameter:55 x H:145 x W:75 (mm)
  - Waterproof
  - Built in Microphone
  - Recommended Range for Objects: 1-12M. Max effective range 12M.
  - Transmission Range: 50M without interference
• Manufacturer Ref: E56DCC641555
• Catalog Ref: Security Camera, Surveillance, Wireless security camera

Other Features

• This set comes with 1 receiver and 4 cameras.
• Each wireless camera comes with 30 LED IR lights along with an AV extension cable and DV in
• Easily programmable to automatically switch from one channel to another at a touch of a button

Package Contents

• Model CVD-43A802X4-PAL
• Remote Controller
• USB Cable
• CD Driver
• User Manual - English
• Power Adapter
• AV cable

FAQ - Frequently Asked Questions

• How far a distance can you record audio in? The audio feature can only record clear audio of up to 3 meters
• Is it difficult to install? Not at all! Just plug and go, all you have to do is select different channels on each camera by using the channel switch located the the rear end of the wireless camera.
• Does the receiver also record video? No, but it is simple to record once you connect it to your laptop, or if using a TV, you can record to a video recording device.
