Wireless Home Surveillance Kit - 4 Camera + Receiver

Product code: CVD-42A802X4-NTSC
OUT OF STOCK

What Do Customers Buy Together With This Item?

LED XHP50 Telescopic Focusing Flashlight High Light Torch with Power Display Positive white lightLED XHP50 Telescopic Focusing Flashlight High Light Torch with Power Display Positive white light
$19.39

Electric Bass Tuning Pegs Tuners Machine Heads Knobs Set for Acoustic or Electric String Precision Jazz Bass Replacement Music Instrument Parts Silver_2L+2RElectric Bass Tuning Pegs Tuners Machine Heads Knobs Set for Acoustic or Electric String Precision Jazz Bass Replacement Music Instrument Parts Silver_2L+2R
$19.55

G12 GPS Smart Pet Locator Universal Waterproof Gps Location Collar BlackG12 GPS Smart Pet Locator Universal Waterproof Gps Location Collar Black
$31.98

Cute Smile Silicone Led Night Light USB Charging Color-changing Eye Protective Bedside Lamp Pear Shape ColorfulCute Smile Silicone Led Night Light USB Charging Color-changing Eye Protective Bedside Lamp Pear Shape Colorful
$25.64

X12 Smart Tablet 10.1-inch HD Capacitive Touch Screen 5000mah Battery WifiX12 Smart Tablet 10.1-inch HD Capacitive Touch Screen 5000mah Battery Wifi
$113.58

Women Short Sleeves Crop Tops Summer Sexy Slim Fit High Waist T-shirt Casual Round Neck Solid Color Blouse without strap LWomen Short Sleeves Crop Tops Summer Sexy Slim Fit High Waist T-shirt Casual Round Neck Solid Color Blouse without strap L
$10.36

.
Wireless Home Surveillance Kit - 4 Camera + Receiver
Wireless Home Surveillance Kit - 4 Camera + Receiver
$111.01
.

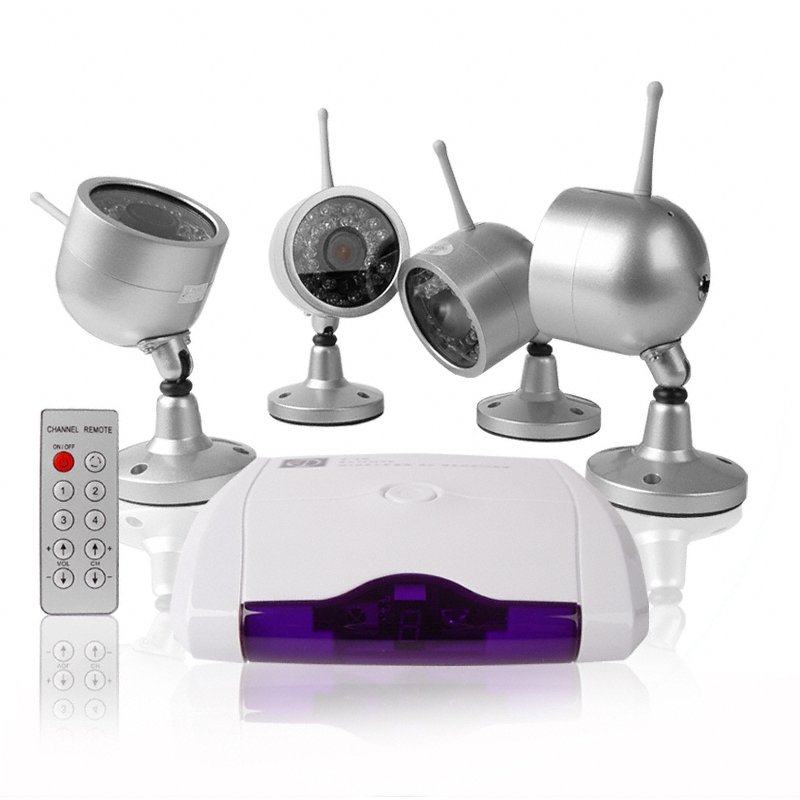

Wireless Home Surveillance Kit - 4 Cameras + Receiver. Home Surveillance Kit with 4 Wireless Transmitting Cameras + 1 Wireless Receiver - 2.4GHz locked frequency (NTSC).

Finally, a HQ home surveillance kit at a wholesale price! With an open transmission distance can be up to 15 meters, the wireless receiver can also be used by infrared remote control and can plug into monitors with AV IN so you can view what is happening and record it if the receiver is attached to a DVR or similar recording device.

This wholesale product applies to broad fields of surveillance and can have many uses to owners.

This product uses the NTSC color system, if you need a PAL kit then please order CVD-42A802X4-PAL

.

Receiver Specifications

  • Receiving Frequency: ISM 2400~2483Mhz
  • Intermediate Frequency: 480Mhz
  • Frequency Stabilization: +/-100Khz
  • Demodulation Mode: FM
  • Antenna: 50ohm SMA
  • Receiving Sensitivity: <-85dBm
  • Video Output: 1Vp-p@75, S/N>38dB
  • Audio Output: 1Vp-P@600
  • Dimensions: 120mm x 99mm x 30mm (L x W x D)
  • Manual or Remote Controlled
  • Four Channels Available
  • Channel Scan and Channel Skip for multiple Cameras


Camera Specifications

  • Image Device: 1/3 Inch OmniVision CMOS
  • TV system: NTSC 510(H)x496(V)
  • Horizontal Definition: 380TV Line
  • Angular Field of View: 45deg (f=6mm)
  • Minimum Illumination: 0 Lux
  • Synchronization System: Internal
  • Scanning Freq(H): 15.734KHz NTSC
  • Scanning Freq(V): 60Hz NTSC
  • Backlight Compensation: Auto
  • Electronic Shutter: 1/50(1/60)~1/100,000sec
  • White Balance: Auto
  • S/N Ratio: >48dB
  • Gamma Correction: >0.45
  • Operation Temperature: -10~50 deg C
  • Transmission Frequency: ISM 2,400~2483MHz
  • Locked Frequencies
  • Dimensions: 44mm x 100mm (camera circumference x L)
  • Waterproof
  • Built in Microphone
  • Recommended Range for Objects: 1-8M (Max effective range 12M)
  • Transmission Range: 15m without interference
  • Manufacturer Ref: 6RFX67ED3JJC


Package Contents for Model CVD-42A802X4-NTSC Wireless Home Surveillance Kit

  • 4 Wireless Transmitting Cameras
  • 1 Wireless Receiver
  • AV Cables
  • User Manual - English
  • Power Adapters (100-240V)
  • Remote Control
.
