Wireless CMOS Camera set with Night Vision - PAL

Product code: CVD-42A812X4-PAL
OUT OF STOCK
.
Night Vision Camera System
Night Vision Camera System
$187.38
.
This Chinavasion Wholesale Security System has an open transmission distance of up to 500M without obstruction or interference. It comes with a 2.4G locked frequency transmitter and receiver. The receiver can be used by the included infrared remote control and has AV OUT for connecting to a TV for watching the pictures live. The Night Vision IR camera has a effective night recoding distance of 10~15M. The signal can be displayed by a TV, a monitor or LCD TV and so on. With high performance components from well known manufacturers, combining the latest technology, and high performance, this wholesale product will exceed your expectations.

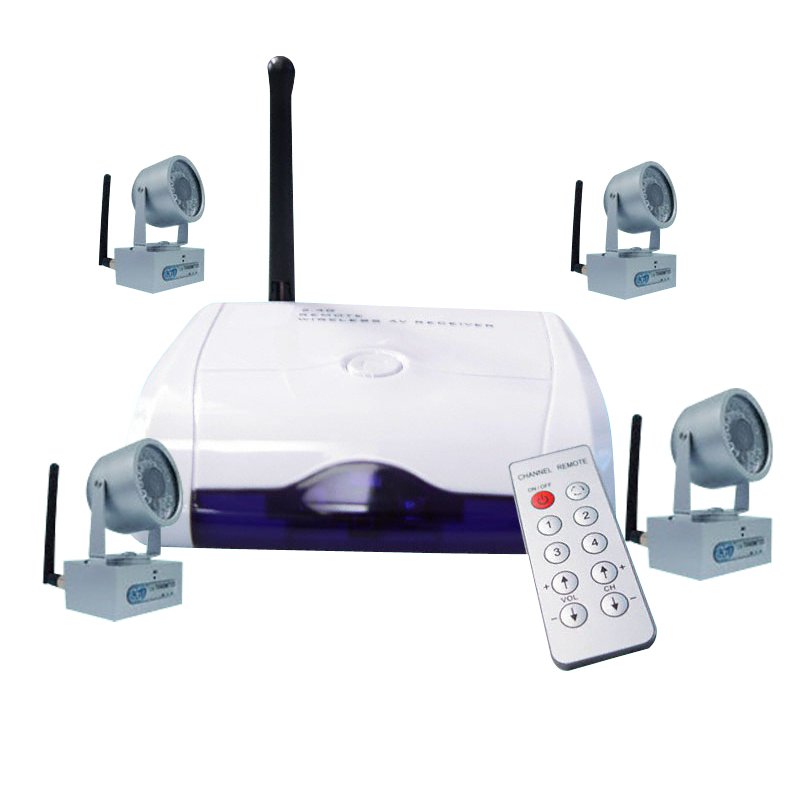

This set comes with 1 receiver and 4 cameras.

This product uses the PAL colour system, although the receiver maybe compatible with both NTSC and PAL cameras the AV output from the receiver will be in the same colour system as the camera.

.


China Manufacturer Specification

Receiver Specifications
    • Receiving Frequency: ISM 2400~2483Mhz
    • Intermediate Frequency: 480Mhz
    • Frequency Stabilization: +/-100Khz
    • Demodulation Mode: FM
    • Antenna: 50ohm SMA
    • Receiving Sensitivity: <-85dBm
    • Video Output: 1Vp-p@75, S/N>38dB
    • Audio Output: 1Vp-P@600
    • Power Adapter: DC 12V/500mA
    • Dimension: 120x99x30mm (LxWxD)
    • Manual or Remote Controlled
    • Four Channels Available
    • Channel Scan and Channel Skip for multiple Cameras
    • AV OUT



Camera Specifications
    • Image Device: 1/3 Inch OmniVision CMOS
    • TV system: PAL 510(H)x496(V)
    • Horizontal Definition: 380TV Line
    • Angular Field of View: 45deg(f=6mm)
    • Minimum Illumination: 0Lux
    • Built in 30 IR LED for 15m night vision range
    • Synchronization System: Internal
    • Scanning Freq(H): 15.734KHz NTSC
    • Scanning Freq(V): 60Hz NTSC
    • Backlight Compensation: Auto
    • Electronic Shutter: 1/50(1/60)~1/100,000sec
    • White Balance: Auto
    • S/N Ratio: >48dB
    • Gamma Correction: >0.45
    • Operation Temperature: -10~50 deg C
    • Transmission Frequency: ISM 2,400~2483MHz
    • Locked Frequencies
    • Power Adapter: DC12V/500mA
    • Dimension: 68x52x105mm LxWxD
    • Built In Microphone
    • Recommended Range for Objects at night: 1-12M. Max effective range 12M.
    • Recommended Range for Objects at Day: 1-12M. Max effective range 17M
    • Manufacturer Ref.: VTHE10CET8YS

  • Manufacturer and Origin: China
  • Login for Wholesale discount price
