Portable 2.5" wireless receiver with camera surveillance set in PAL. This wireless surveillance combo is perfect for children and baby monitoring.

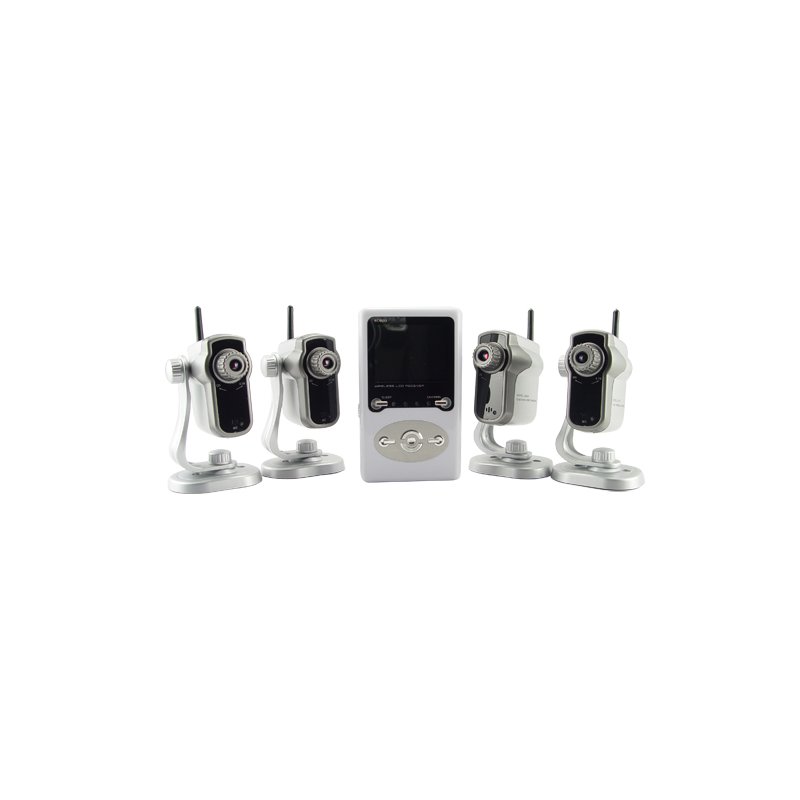

If you are looking for an effective surveillance system for your home or small business, look no further. This wireless surveillance system comes with 4 wireless cameras and a handheld portable receiver with 2.5 inch screen. You can have a range of flexible surveillance solutions with this wireless and portable security system. Expecting unwelcome guests? Just install a camera over the door and see who's approaching before they even knock on the door. With easy to install cameras, good quality video and the ability to link to a TV monitor, the uses of this wireless surveillance unit are limited only by your imagination.

Setting up your own wireless surveillance system is quick and simple. The four wireless cameras are easy to install and require only a power source. With two rotatable joints and a viewing distance of up to 15 meters, the cameras can be easily aimed at any location, no matter whether they are installed on the wall, floor, or ceiling. The wireless receiver can be positioned at a distance of up to 15 meters from the cameras and can connect to a TV through AV out so you can monitor your cameras on a large screen. Tell your friends you got a great deal on your wireless surveillance system from the leader in direct low price electronics, Chinavasion.

At a Glance...

• Portable 2.5 inch wireless receiver with camera surveillance set (PAL)
• AV out lets you connect to a TV monitor
• Compatible with the PAL color system

.

Manufacturer Specifications

• Primary Function: Portable wireless receiver with camera surveillance set (PAL)

• Receiver Specifications
  - Receiving Frequency: ISM 2400~2483Mhz
  - Intermediate Frequency: 480Mhz
  - Frequency Stabilization: +/-100Khz
  - Demodulation Mode: FM
  - Antenna: 50ohm SMA
  - Power Adapter: DC 12V/1500mA
  - Dimension: 123mm x 72mm x 24mm (L x W x D)
  - 2.5 Inch LCD Screen. 480x234 Resolution
  - Rechargeable Li-Battery- use for 4 hours after charge
  - Four Channels Available
  - Channel Scan and Channel Skip for multiple Cameras

• Camera Specifications
  - Image Device: 1/3 Inch OmniVision CMOS
  - TV system: PAL 628(H) x 568(V)
  - Horizontal Definition: 420TV Line
  - Angular Field of View: 45deg(f=6mm)
  - Minimum Illumination: 1.0Lux(F1.2)
  - Synchronization System: Internal
  - Scanning Freq(H): 15.625KHz PAL
  - Scanning Freq(V): 50Hz PAL /li>
  - Backlight Compensation: Auto
  - Electronic Shutter: 1/50(1/60)~1/100,000sec
  - White Balance: Auto
  - Operation Temperature: -10 to 50 deg C
  - Transmission Frequency: ISM 2,400~2483MHz
  - Locked Frequencies
  - Power Adapter: DC8V/500mA
  - Dimension: L:73 x W:60 x D:101 (mm)
  - Built in Microphone
  - Recommended Range for Objects: 1-10M. Max range 15M
  - Transmission Range: 15m without interference
• Manufacturers Ref: YH398UJWG2A3
• Catalog Ref: CCTV, wireless security camera, surveillance system

Product Notes

• Works great for baby monitoring
• Comes with 9 Volts battery cable connectors just encase there is no power outlet

Package Contents

• Model CVD-82A230X4-PAL
• Wireless Cameras x 4
• Earphones
• Power Adapters x 5
• Power car Charger
• AV Cable
• 9V cable for Wireless Cameras x 4
• User Manual - English

FAQ - Frequently Asked Questions

• Can I rotate the cameras by remote? No, but the cameras have an angular field of view of 45 degrees
• Does the product CVD-82A230X4-PAL also has night vision? No, for night vision please check out the wireless CMOS camera set with night vision product code - CVD-42A812X4
