Pinhole 1.2GHz Wireless A/V NTSC Camera + Receiver Set

Product code: CVAJM-007AS-NTSC
OUT OF STOCK
.
Wired Camera + Receiver
Wired Camera + Receiver
$22.94
.

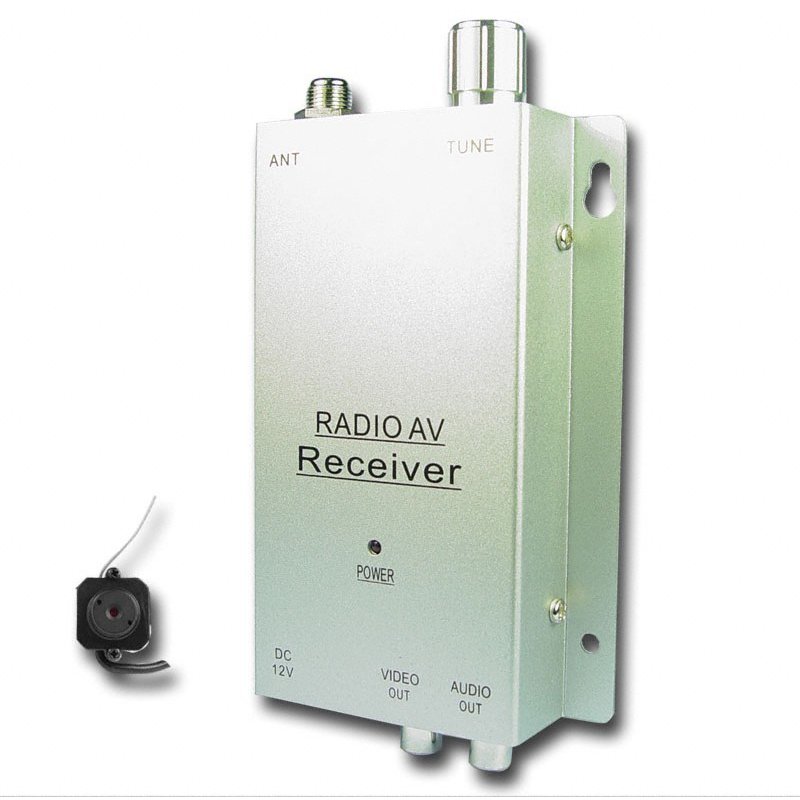

Pinhole mini wireless audio and video NTSC camera and receiver security set, operating on the long range 1.2GHz transmitting frequency.

Perfect for indoor use, this handy wireless set features a camera with low light 3Lux lens and the ability to be used as a wireless or a wired RCA camera, and an AV OUT for easy connection to such devices as a LCD screen or a VCR for recording live audio and video feeds.

This wholesale product has constantly been one of the best sellers, and is very popular with Chinavasion customers due to its consistent high quality and its reselling ability. Check it out for yourself!

This model uses the NTSC color system. If you need a PAL model then order CVAJM-007AS-PAL

.

Manufacturer Specification


Receiver Specifications

  • Receiving Frequency: 1.2GHz
  • Intermediate Frequency: 480Mhz
  • Frequency Stabilization: +/-100Khz
  • Demodulation Mode: FM
  • Antenna: 50ohm SMA
  • Receiving Sensitivity: <-85dBm
  • Power Source: DC 9V
  • Dimension: 120x81x20mm (LxWxD)
  • Channels Available: 1
  • Channel Tuning for Multiple Cameras
  • AV OUT

Camera Specifications

  • Image Device: 1/3 CMOS
  • TV system: NTSC
  • Horizontal Definition: 380TV Lines
  • Angular Field of View: 38 deg
  • Minimum Illumination: 3.0 Lux
  • Synchronization System: Internal
  • Backlight Compensation: Auto
  • White Balance: Auto
  • S/N Ratio: >48dB
  • Operation Temperature: 0~35 deg C
  • Transmission Frequency: 1.2GHz
  • Locked Frequency
  • Power Adapter: DC 9V or 9V Battery
  • Dimension: 20x20x22mm (LxWxD)
  • Recommended Max Range for Objects: 5 Meters
  • Transmission Range: 12~15 Meters
  • Built In Microphone: Max Audio Range 1~2 Meters
  • Wireless or Wired RCA A/V Transmission
  • Manufacturer Ref: 7O10971M39L8

Package Contents

  • Wireless A/V NTSC Camera + Receiver
  • Antenna
  • User manual-English
  • AV Cable
  • 9V Battery Power Adapter
  • x2 Power Adapter
.
