This product is out of stock, and not coming back.
It may have been replaced by a newer version, see replacement/alternatives listed below.

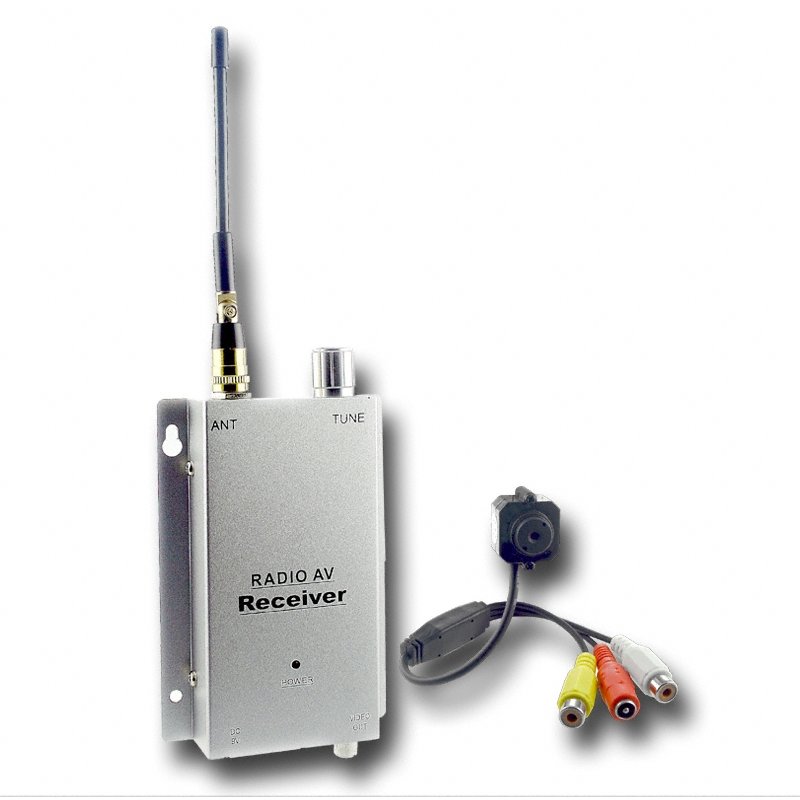

Micro Wireless Pinhole Color Camera + Video Receiver

Average Customer Rating:  based on 4 reviewsprice range: 22.97 - 21.9
Product code: CVAJM-007A-PAL
OUT OF STOCK
.
Wired Camera + Receiver
Wired Camera + Receiver
$22.97
Avg Customer Rating:
.
Super mini wireless color camera and wireless receiver set for wireless transmission and receiving of video.

This is a great low priced option for covert surveillance and security, as well as, with a little modding, an excellent choice for sending video direct from your model RC as it is being used. It features an excellent wireless transmission range, broadcasts on 1.2Ghz to avoid interference, and a receiver with Video OUT so it can easily and quickly be set up with a TV for viewing the images from the camera as they are being sent.

An incredibly small wireless camera and receiver set, available at an equally small wholesale price direct from China.

This product uses the PAL color system. If you need an NTSC version, then please order CVAJM-007AS-NTSC

.

Manufacturer Specifications


Receiver Specifications
  • Receiving Frequency: 0.9/1.2Ghz
  • Intermediate Frequency: 480Mhz
  • Frequency Stabilization: +/-100Khz
  • Demodulation Mode: FM
  • Antenna: 50ohm SMA
  • Receiving Sensitivity: -85dBm
  • Power Source: 9V
  • Dimensions: 120mm x 81mm x 20mm (L x W x D)
  • Video OUT

Camera Specifications
  • Image Device: 1/4 Inch CMOS
  • TV system: PAL/CCIR: 628 x 582
  • Horizontal Definition: 380 Lines
  • Angular Field of View: 38 deg
  • Minimum Illumination: 3 LUX
  • Synchronization System: Internal
  • Backlight Compensation: Auto
  • White Balance: Auto
  • S/N Ratio: >48dB
  • Operation Temperature: 5~ 35 deg C
  • Transmission Frequency: 1.2Ghz
  • Locked Frequencies
  • Power Adapter: DC 9V
  • Power Adapter input voltage: 110-240V
  • Dimension: 20x20x22mm (LxWxD)
  • Recommended Max Range for Objects: 7~8 Meters
  • Transmission Range: 20 Meters

Package Contents

  • Pinhole Camera
  • Receiver
  • Receiver Antenna
  • 9V battery attachment for camera
  • Video cable
  • 2x power adapters
  • Instructions - English
.

Customer Reviews(4)

5 out of 5
5 star rating 5 star rating 5 star rating 5 star rating 5 star rating
Micro Wireless Pinhole Color Camera + Video Receiver
Deliverystarrs 5starrs 5starrs 5starrs 5starrs 5
Value for Moneystarrs 5starrs 5starrs 5starrs 5starrs 5
Packagingstarrs 5starrs 5starrs 5starrs 5starrs 5
Ease of Setup/Usestarrs 5starrs 5starrs 5starrs 5starrs 5
Function/Performancestarrs 5starrs 5starrs 5starrs 5starrs 5
Write Review
Christmasgift

I'm going to give this away to my brother. Don't know how good it is, but it looks cool in the box tough. I think he is going to have some fun with it:)


Very Easy to set up.

These are very easy to set up and are very good quality. It comes in high quality retail packaging. Really good value.


Great product

Does everything it says. Complete set of camera and receiver. Picture quality is impressive even when using wireless for few meters. Camera is small but as seen on picture does need some wires for power or connecting with tv. 9v cable is very handy when using wireless!


micro wierless

this is good value we put them in our shop for display for customers to see and they love it. they are good for sercurity and people like them.


Date Launched: Apr 11 2005
