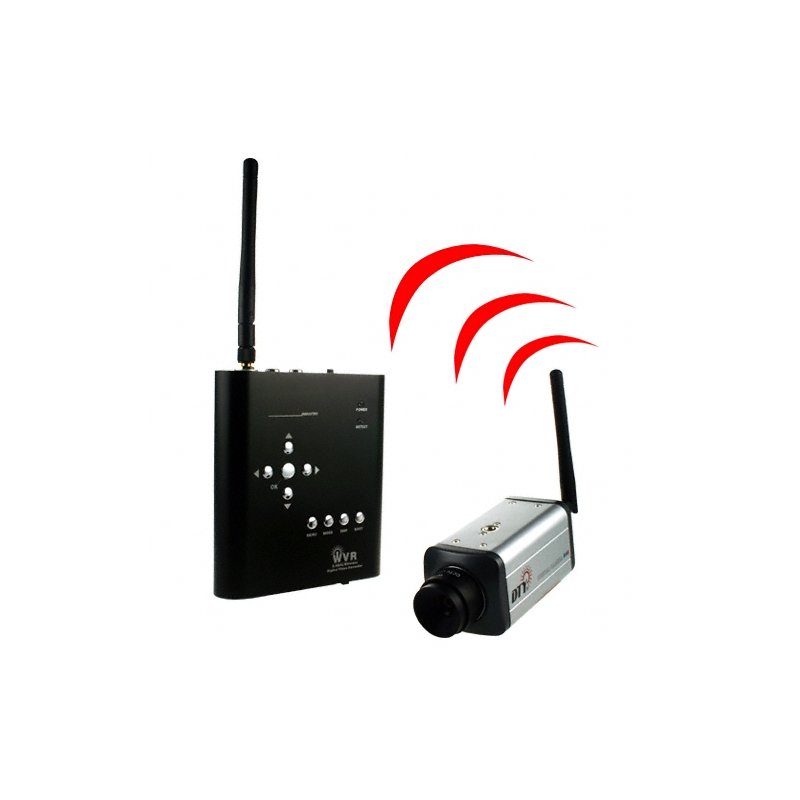

.Wireless DVR set with motion detection and recording, with an included 2.4GHz CMOS wireless camera for a easy to use and set up security system for your business or house. This excellent and low priced security device features direct recording to an SD memory card (with a free 256MB SD card included with each purchase), video recording at 320x240 resolution in AVI format and 10fps, Video IN and OUT for connecting a wired camera if you wish as well as connecting the DVR to a LCD screen, 2 ports for connecting audio alarms and connection to an infrared sensor, and so much more. Order from Chinavasion in bulk for even bigger wholesale savings.
This product uses the PAL color system..
China Manufacturer Specification
DVR Specification
- Main Functions:
-Auto Recording of Detecting Moving Objects
-Unmoving Objects Not Recorded
-Auto End Recording When Objects cease Movement
-Memory: SD Card (Max 2GB) - Video Specification:
-Video Recording
-Record Format: AVI
-Compression Format: M-JPEG
-Video Resolution: 320x240
-FPS (Frames per Second): 10FPS - Photo Specification
-Photo Format: JPEG
-Photo Resolution: 640x480 - Wireless Specification
-Receiving Frequency: 2.4GHz
-Intermediate Frequency: 480Mhz
-Frequency Stabilization: +/-100Khz
-Demodulation Mode: FM
-Receiving Sensitivity: -Channels Available: 4 Channels
-Channel Scan and Channel Skip for multiple Cameras - Input/ Output
- Video IN
-Video OUT
-Port 1 OUT: Connection to infrared Sensor
-Port 2 IN: 3V Power for Alarm - Power Source: Built in Rechargeable Lithium Battery or DC 4.2V
- Dimension: 120x108x25mm (LxWxD)
Camera Specification
-Image Device: 1/3 Inch CMOS
-Horizontal Definition: 420TV Lines
-Angular Field of View: f= 6mm 53 deg
-Minimum Illumination: 3 Lux
-Synchronization System: Internal
-Backlight Compensation: Auto
-Operation Temperature: 0~35 deg C
-Transmission Frequency: 2.4 GHz
-Dimension: 105x46x46mm (LxWxD)
-Recommended Max Range for Objects: 6~8 Meters
-Transmission Range: Up to 20 Meters
-Video Record Only - Manufacturer Ref.: FRJ9VVGO2QD3
Other Features:
- Infared Detection for Setting off Alarm + Camera Even If Object Out of View
- 3V Power to Alarm Connected To DVR, Which Sounds if Motion Detected
- Software Free
- Included 256MB SD Card
- Last Image Auto Delete When Memory Full
Accessories:
- Manual
- RCA Video Cable
- Fly Leads
- 256MB SD Card
- x2 Antenna
- x2 Power Adapter
- Manufacturer and Origin: China
