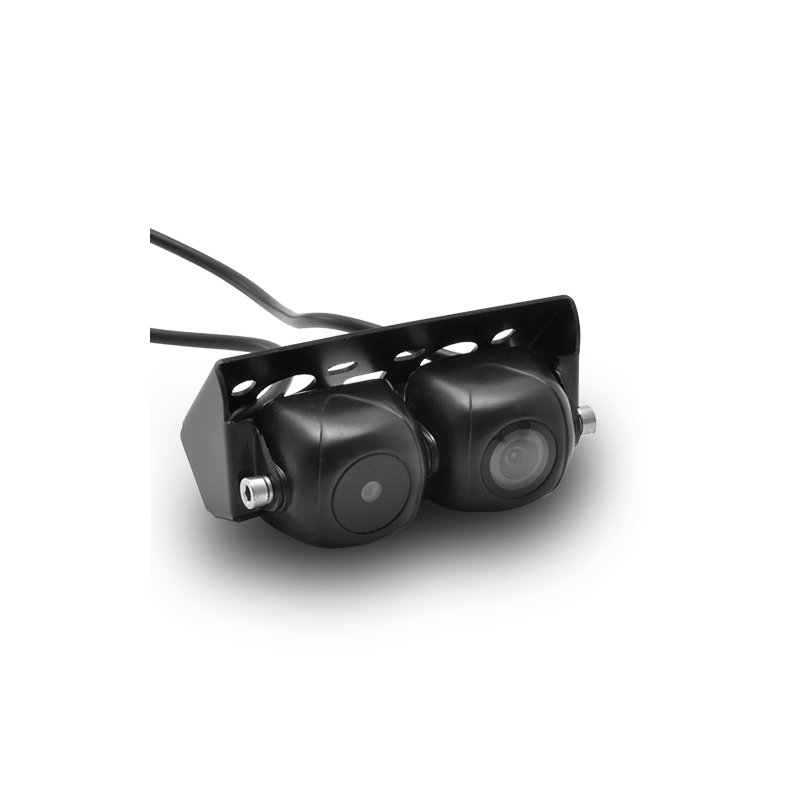

True View Dual Reverse Cameras - Waterproof, Wide Angle Lens + Standard Lens

Average Customer Rating:  based on 2 reviewsprice range: 86.63 - 82.91
Product code: CVSH-I107

What Do Customers Buy Together With This Item?

Car Rearview Camera
Car Rearview Camera
Avg Customer Rating:
A reverse camera that actually shows a true image of what’s behind you that also features waterproof protection and wide angle lens as well as standard lens.

Traditional reverse parking cameras always show a flipped image of what’s behind you, which is fine for reversing in a straight line. However, when you try turning in reverse the image appears to be moving in the opposite direction that you’re turning. As you might already know, this makes it almost impossible for use with parallel parking or for backing out while turning. The improved True View reverse camera eliminates the issues of traditional parking cameras by inverting the image back to your monitor.

One camera offers a wide angle lens to give you a wide view of objects that are close to your car. This is great for discovering hidden objects in your blind spot while reversing. The second camera gives you a better view of objects that are farther away which helps you accurately judge distance. The IP67 waterproof rating guarantees this camera will withstand heavy rain or even total submersion.

Once you try the True View reverse camera we guarantee you will never use a traditional reverse camera again. In stock now, we guarantee next day shipping and offer a 12 months warranty on all our products. Brought to you by the leader in electronic devices and car rear view cameras, Chinavasion.

At a Glance...
  • First True View Reverse Camera
  • Dual Cameras for Viewing Angles
  • RCA Video Connection
  • Wide angle lens
Manufacturer Specifications

    • Construction: Zinc Alloy Die Cast Body (waterproof)
    • Video System: PAL
    • Video Resolution: 628x582 (PAL), 420TVL
    • On Screen Guide Lines: 0.5 to 1.75 Meters Back
    • White Balance: Auto
    • Waterproof Rating: IP67
    • Adjustable Camera Angle: Vertical Up/Down 45 Degrees (Manual)
    • Operating Temperature: -10 to +50 Degree Celsius
    • Power Source: Car Battery (11V-32V DC)

    • Image Sensor: 1/4 Inch Color CCD Sensor
    • Lens: 3.6mm
    • Wide Viewing Angle: 180 Degrees
    • Standard Viewing Angle: 60 Degrees

    Night Vision
    • Min LUX: 0.5

    • Power
    • Video OUT

    • Main product size: 70x30x30mm (L x W x D)
    • Cable Length: 8 Meters for each camera
    • Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

    Product Notes
    • Up/Down adjustment gives you the best line of sight for your particular vehicle
    • Works with car DVD systems with a rearview camera IN or AUX Video IN- or simply a reverse parking monitor.
    • To switch the camera to True View mode simply press the red switch while the car is ON, turn your car OFF, then turn the car back on.
    • To switch between the two cameras you will need to change the A/V input selection on your monitor.
    • The narrow angle lens does not have IR filter.

    Package Contents
    • Camera
    • Adjustment Tool

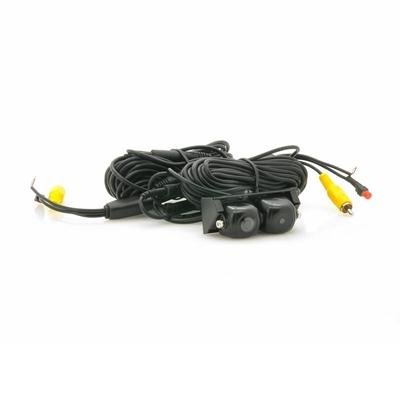

    • Rearview Camera with Wire Harness
    • Mounting Hardware
    • User Manual

    Ordering from Chinavasion provides you with the following benefits:
    • Orders processed and shipped within 24-hours
    • 12 month warranty
    • In-house QC
    • Member discounts
    • Award winning customer support
    • Quantity order discounts
    • Worldwide Shipping
    • Certification: CE, FCC, RoHS

    Foreign Language Keywords

    Arabic - كاميرات عرض صحيح عكس المزدوج; Chinese Simplified - 真正的视图双反相机; Czech - Pravdivý pohled duální zadní kamery; Danish - Ægte Vis dobbelt omvendt kameraer; Dutch - Ware weergave dubbele Reverse camera 's; French - Vue vrai double caméras inverse; German - Wahre Ansicht Reverse Dual-Kameras; Greek - Διπλές φωτογραφικές μηχανές αντίστροφη True Προβολή; Hebrew - True צפה Dual מצלמות הפוכה; Hindi - सच देखें दोहरी रिवर्स कैमरा; Hungarian - Igaz, Kilátás kettős fordított kamerák; Italian - Vista vero Dual telecamere retromarcia; Japanese - 真の友達のデュアル逆カメラ; Korean - 사실 보기 듀얼 리버스 카메라; Norwegian - Sanne syn dobbelt omvendt kamera; Polish - Widok prawda Dual Odwróć kamery; Portuguese - Verdadeira exibição Dual câmeras reversa; Russian - Значение true, представление двойной обратный камеры; Spanish - Verdadera visión Dual cámaras inversa; Thai - กล้องย้อนดูจริงสอง


    Customer Reviews(2)

    5 out of 5
    5 star rating 5 star rating 5 star rating 5 star rating 5 star rating
    True View Dual Reverse Cameras - Waterproof, Wide Angle Lens + Standard Lens
    Deliverystarrs 5starrs 5starrs 5starrs 5starrs 5
    Value for Moneystarrs 5starrs 5starrs 5starrs 5starrs 5
    Packagingstarrs 5starrs 5starrs 5starrs 5starrs 5
    Ease of Setup/Usestarrs 5starrs 5starrs 5starrs 5starrs 5
    Function/Performancestarrs 5starrs 5starrs 5starrs 5starrs 5
    Write Review
    Excellent Product

    I purchased one of these dual cameras last year & have recently purchased a second for another vehicle. They are high quality units. The narrower angle of view (60 degrees) of one of the cameras makes it far better suited to rear vision (as opposed to reversing) than any others I have seen. In fact this is the only one with under a 90 degree angle of view (& thus greater depth of field) I have found. Delivery from HongKong to Australia was just a week on both occasions. Impressive! Could be improved wit a longer cable, it only comes with 6 metres - ok for most cars, but insufficient for many RV's.
    I don't use the 180 degree camera as I find the 60 degree meets all my needs, but for those interested the 180 degree gives a good view of your rear bumper & just beyond when mounted above. I wish the 60 degree camera was available on it's own as well as being paired with the 180 degree model. I'd give it 4.5 stars if I could, & the full 5 stars if it had a 10 metre cable.

    love it

    gr8 product, like it :)
