This product is out of stock, and not coming back.
It may have been replaced by a newer version, see replacement/alternatives listed below.

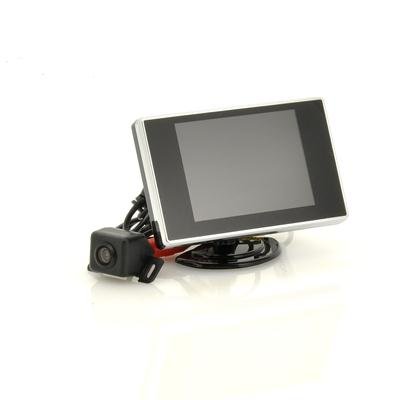

3.5 Inch Car Monitor with Wired Front Camera and Wireless Rear Camera - Weatherproof, Night Vision

Average Customer Rating:  based on 5 reviewsprice range: 68.48 - 63.73
Product code: CVTM-CS55
Front + Rear Wireless Camera & Monitor Set
Front + Rear Wireless Camera & Monitor Set
Avg Customer Rating:

See alternatives:

Car monitor that consists of a 3.5 Inch LCD display, Wired Front Camera and a Wireless Rear Camera that is weatherproof and has night vision capabilities as well.

Introducing the all new car monitor, which not only comes with a 3.5 inch crystal monitor, but also with an excellent wired front and wireless rear camera, showing you anything hidden in your blind spots at the front or back of your car. This car monitor not only has a wireless rear view camera but also a front view camera, which increase the vision of the driver greatly to ensure that they can see as much as possible when maneuvering their vehicle. This well-designed system comes complete with a high quality 3.5 inch color LCD monitor and a wired front view camera and wireless rear view camera, giving you more confidence and peace of mind to safely position your car when navigating into tight parking spaces, parallel parking or simply reversing. Now, you can see everything behind and under the front part of your car, so you can avoid car accidents and costly car repairs. The wireless transmitter with a range of about 5 meters, which accompanies this product connects the rear view camera to the monitor while the front view camera is physcially wired to the monitor.

If you have trouble with parking, then this car accessory will be a great set of extra eyes and is the best choice for car safety and reverse driving. The front camera has an IP64 waterproof rating therefore this product is also dust proof to that no ingress of dust can get in and it has complete protection against contact with dust. Also the cameras is protected to a certain degree of water contact; and that splashing against the product from any direction shall have no harmful effect.

This 3.5 inch monitor with wired front view camera and wireless rear view camera is a great car upgrade and easy to install in almost any make or model of car. Available at an incredible wholesale price from the leaders in electronic devices and car cameras, Chinavasion.

At a Glance...

  • Wired Front camera and wireless back camera
  • 3.5 inch monitor allows viewing of both cameras
  • Automatic night vision for the rear camera
  • Weatherproof Cameras
Manufacturer Specifications

    • Front Camera Recommended Maximum Range: 5 Meters
    • Front Camera Waterproof Rating: IP64
    • Front Camera Operation Temperature: -10 - +50 Degrees Celsuis
    • Rear Camera Weatherproof Rating: IP65
    • Rear Camera Operating Temperature: -30 - +80 Degrees Celsuis
    • Power Source: DC12V

    • Screen size: 3.5 Inch
    • Resolution: 320x240
    • Monitor Color System: Auto PAL/NTSC

    • Front Camera Color System: PAL
    • Front Horizontal Resolution: 420 TV Lines
    • Front Camera Video Output: RCA
    • Rear Camera Color System: PAL
    • Rear Camera Horizontal Resolution: 380 TV Lines (628x582)
    • Rear Camera Video Output: RCA to Wireless Connector
    • White Balance: Auto

    • Front Camera Image Sensor: 1/3 Inch CMOS (ov7949/7950)
    • Front Camera Viewing Angle: 135 Degree Horizontal, 80 Degree Vertical
    • Rear Camera Image Sensor: 1/4 Inch CMOS (PC1030)
    • Rear Camera Viewing Angle: 120 Degree Horizontal, 80 Degree Vertical

    Night Vision
    • Front Camera Min Lux: 0.2 LUX
    • Rear Camera Infrared Light: x4 LED IR 3 Meter Range
    • Rear Camera Min LUX: 0.1Lux/F=1.2 (IR ON)

    • RCA Port

    • Monitor Dimensions: 105x70x12mm (L x W x D)
    • Rear Camera Dimensions: 260x42x31mm (L X W X D)
    • Power Cable Length: 1500mm
    • Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

    Product Notes
    • Rear view camera will automatically show when reversing. All other times the front view camera will show.
    • Front camera doesn't include automatic nightvision.

    Package Contents
    • 3.5 inch Display (3m Tape at the Bottom)
    • Front View Camera
    • Rearview Camera
    • Wireless Transmitter
    • Front View Camera Power Cable
    • Display Power Cable
    • AV Cable
    • Mounting Screws

    Ordering from Chinavasion provides you with the following benefits:
    • Orders processed and shipped within 24-hours
    • 12 month warranty
    • In-house QC
    • Member discounts
    • Award winning customer support
    • Quantity order discounts
    • Worldwide Shipping
    • Certification: CE, FCC, RoHS

    Foreign Language Keywords

    Arabic - 3.5 بوصة رصد DVR السيارة بخدمة سلكية ولاسلكية الكاميرا الخلفي; Chinese Simplified - 3.5 英寸有线的前端摄像头和无线后方摄像机汽车硬盘录像机监视器; Czech - 3,5 Palcová auto DVR Monitor s kabelovým přední kamery a bezdrátové zadní fotoaparát; Danish - 3.5 Inch Car DVR skærm med kabelforbundne Front kamera og Wireless bag kameraet; Dutch - 3,5-Inch auto DVR Monitor met bekabelde Front Camera en Wireless Rear Camera; French - 3,5 Pouces moniteur DVR voiture avec Front filaire caméra et caméra de recul sans fil; German - 3,5 Zoll Auto DVR Monitor mit Frontkamera LAN und Wireless Heckkamera; Greek - 3.5 Ιντσών οθόνη αυτοκινήτου DVR με ενσύρματο Front Camera και ασύρματη κάμερα όπισθεν; Hindi - 3.5 इंच वायर्ड फ्रंट कैमरा और वायरलेस रियर कैमरा के साथ कार DVR मॉनिटर; Indonesian - 3,5 Inch Monitor DVR mobil dengan kamera depan kabel dan nirkabel belakang kamera; Italian - 3.5 Pollici auto DVR Monitor con telecamera frontale cablata e Wireless telecamera posteriore; Japanese - 3.5 インチ車 DVR モニター有線前面カメラと背面のワイヤレス カメラ; Korean - 3.5 인치 자동차 dvr의 모니터 유선된 프런트 카메라와 무선 후방 카메라; Norwegian - 3,5-Tommers bilen DVR-skjerm med kablet foran kameraet og trådløs bak kamera; Polish - 3,5-Calowy Monitor DVR samochodu z kamera przednia przewodowe i bezprzewodowe tylne kamery; Portuguese - 3.5 Polegadas Monitor de carro DVR com câmera frontal com fio e sem fio da câmera traseira; Russian - 3,5-Дюймовый автомобиля DVR монитора с проводной передней камеры и беспроводной камеры заднего вида; Spanish - 3.5 Pulgadas coche DVR Monitor con cámara cableada delantera y trasera de la cámara; Thai - 3.5 นิ้วรถยนต์ DVR จอกับกล้องด้านหน้าแบบมีสายและไร้สายด้านหลังกล้อง


    Customer Reviews(5)

    5 out of 5
    5 star rating 5 star rating 5 star rating 5 star rating 5 star rating
    3.5 Inch Car Monitor with Wired Front Camera and Wireless Rear Camera - Weatherproof, Night Vision
    Deliverystarrs 5starrs 5starrs 5starrs 5starrs 5
    Value for Moneystarrs 5starrs 5starrs 5starrs 5starrs 5
    Packagingstarrs 5starrs 5starrs 5starrs 5starrs 5
    Ease of Setup/Usestarrs 5starrs 5starrs 5starrs 5starrs 5
    Function/Performancestarrs 5starrs 5starrs 5starrs 5starrs 5
    Write Review
    Value for Money
    Ease of Setup/Use
    Nice product, totally satisfied. Fast delivery(fedex), and camera resolution really clear.
    Value for Money
    Ease of Setup/Use
    Excellent service by chinavasion and superb product quality and item as described thanks to chinavasion
    Positive Feedback

    Purchased goods to be shipped to Sydney Australia, delivered via DHL, received within delivery time frames, installed and works well. No issues. Thank you.

    Great Customer Service

    I submitted my first order to Chinavasion, although I was bit cautious about it. To my surprise order reached with in 4 days. Online help was great and contents were complete as compared to other online Cos, for which I previously had a bad experience. Keep it up chinavasion.

    No installer for front camera

    Rearview is okay but there is no diagram how to install the front camera. Until now the front camefa is idle.

    [This answer come from Chinavasion:

    Dear Gandhi truya:

    This product doesn't need software to install, Please check the picture in our website it can show you how to connect the cable or you can contact with our support customer at support@chinavasion.com in detail. Thanks]

    Date Launched: Aug 09 2011
