• Supports Multiple Audio Formats: This USB sound card supports AES/EBU, IEC60958, and S/PDIF formats, allowing true 5.1 and 7.1 channel output. offers a maximum sampling rate of up to 48KHz for audio playback.
• Plug and Play: Audio converter provides full-duplex audio stream, used for broadcasting and recording. With the USB 2.0 interface, it is backward compatible with USB 1.1, ensuring seamless connection and easy installation.
• Multiple Input And Output Ports: With three input ports (including one optical input), three output ports, and one optical output port, this USB audio adapter offers a wide range of connectivity options.
• AUX Connection: It allows you to connect your computer to a 5.1 surround sound speaker system using a 3.5mm stereo or RCA interface, depending on the specifications of your audio device.
• Enhanced Audio Playback: To achieve 5.1 channel output through fiber, certain conditions need to be met: the audio source must be 5.1 channel. KMP player is recommended because of its powerful features.

Description:

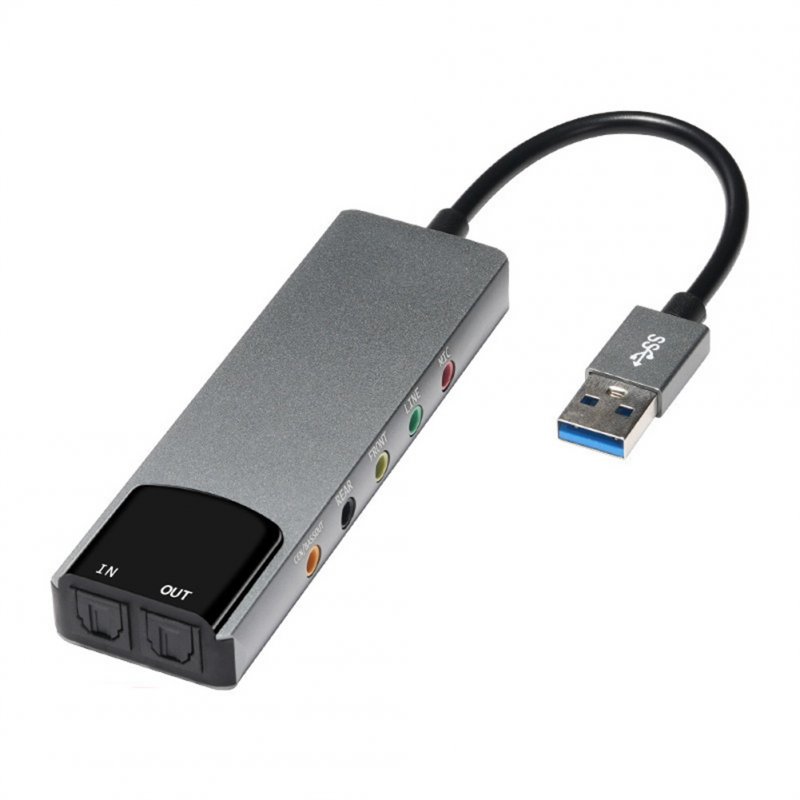

Name: Audio Adapter

Interface type: USB;

Model: USB sound card;

Type: external;

Packing size: 150.00 x100.00 x10.00 mm / 5.91 x3.94 x0.39 inches;

Note: before use, please install the sound card driver, the driver download link as https://share.weiyun.com/5djRNhQ;

Color (optional) : Grey/silver;

Material: Aluminum alloy;

Cable length: 11cm;

Input and output interface mic-in= Microphone input: Insert;

line-in=line-in: MP3 or other audio input to a sound card for composing and editing on a computer;

front-out=front-out: 2-channel headphones or speakers / 4-channel front-facing speakers;

Rear output = Rear output: 4 or more channels of sound/plugged into rear speakers;

cen/base-out=center/ Bass-out: 5.1 interface dedicated to loudspeakers. (Note: center and bass are the same 3.5 interface. You can set the priority of center or bass on the main screen. The default output of the hole is center output, and the bass in the movie will appear in the fire scene, rather than the sound card without bass output);

SPDIF IN= Fiber optic input: fiber optic audio input for a sound card that is synthesized and edited in a computer;

SPDIF OUT= Optical output: usually output to an optical amplifier or decoder (digital signal);

Packing list:

1 x USB optical fiber SPDIF audio adapter

1 x instruction manual

1 x packing box
