Feature:
You can adjust the test reference by yourself according to the actual test requirements, using replaceable batteries (due to transportation restrictions, the product does not contain batteries) for more than 48 hours of continuous working time, linear display (mW) and logarithmic display (dBm) are displayed on the same screen, Support FC/SC/ST interface and fast switch, automatic switch, backlight available.
Description:

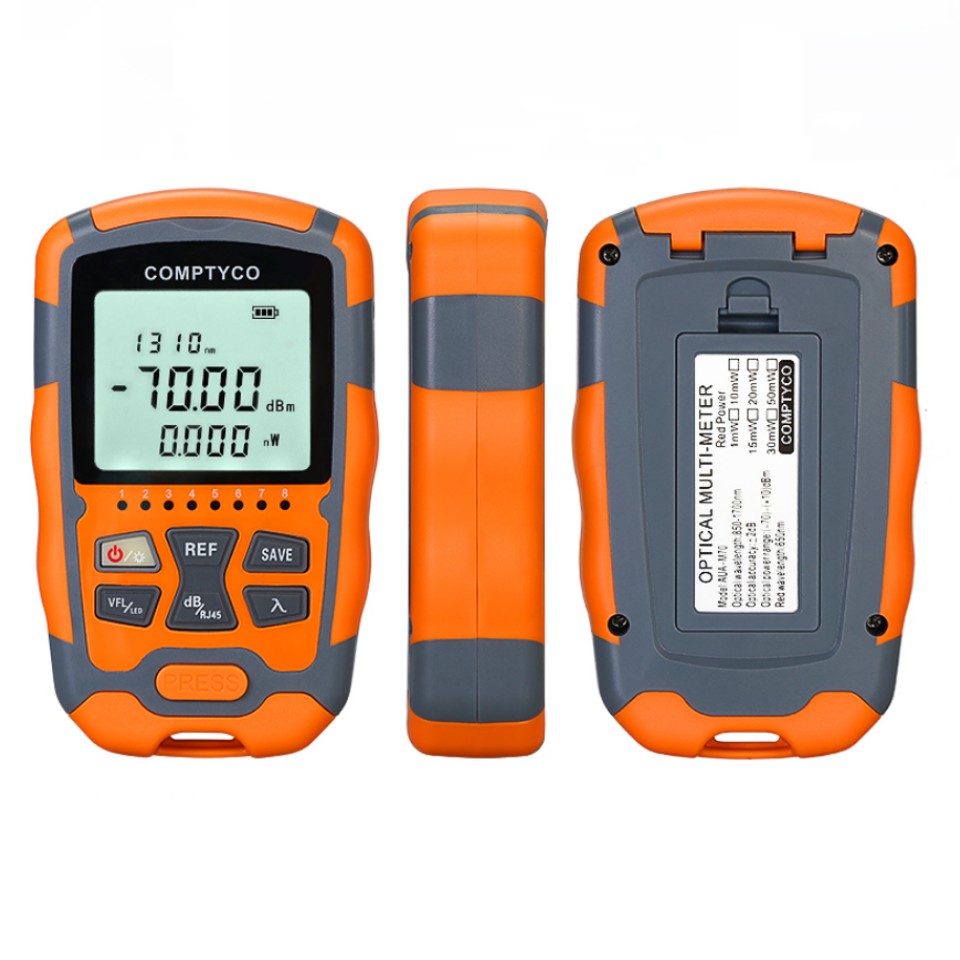

Product Name: AUA-M70 Mini Optical Power Meter
Test range: -70 to +10dbm or -50 to +26dbm;
650m red light source (optional): 10mw or 30mw;
Wavelength range: 800~1700nm;
Ten standard wavelengths: 850nm, 980nm, 1270nm, 1300nm, 1310nm, 1490nm, 1550nm, 1577nm, 1625nm, 1650nm;
Batteries: 2 AA batteries (not included);
Dimensions (mm): 130 x 75 x 27;
Weight (g): 126;
Packing list:
1 x AUA-M70 mini optical power meter
1 x hand strap
1 x instruction manual
1 x packing box
Note:
1. Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
.
