Electrolytic capacitor signal main circuit using international brands, using a Nikon capacity 330UF/100V * 2, support for a steady stream of power.
Resistance selection 08,050,603 high precision chip resistors, ensure the machine a good signal to noise ratio.
1.6mm thick sheet using double-sided PCB, 2.0 oz copper thickness, HASL whole process to ensure that the size of the current. PCB-class quality.
Using 20A high current shielded inductor, ensuring crisp and powerful sound.
.Description:
Item type:Amplifier Board
Work: Class D
Quiescent Current: 20mA
Efficiency: 90%
Rated Output Power: 200W
Frequency Response: 20Hz to 20KHz
Operating Voltage: +-30V to +-60V
Recommended Supply Voltage: +-50V
Maximum Output Current: 8A
PCB Size: 86 * 57mm/3.38*2.24in
Features:
Using IRS2092, IRFI4019
Very small size, big power
Packing list:

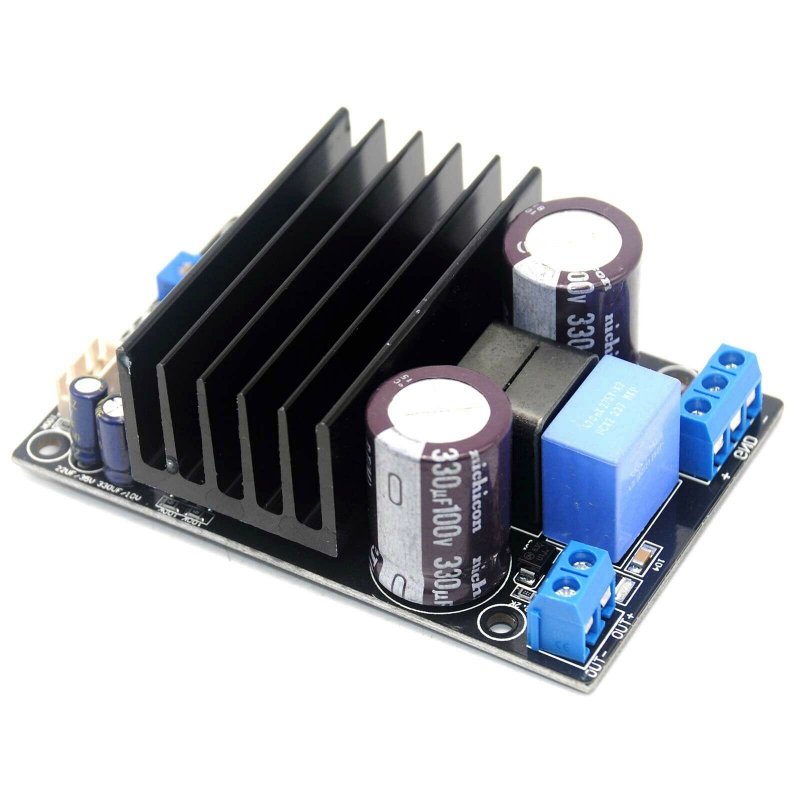

1 x IRS2092 200W Class D Mono Amplifier Board
Note:The color of the actual items may slightly vary from the above images due to different computer screen, thanks for your understanding.
.
