Description:

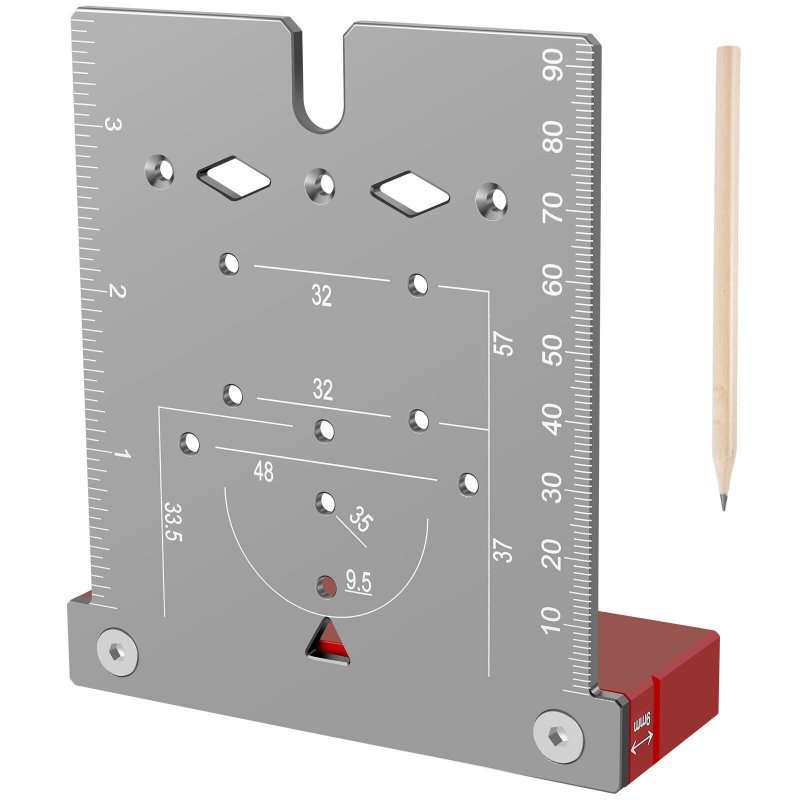

Name: Hinge Punching Locator
Material: Aluminum alloy
Color: Red+Gray
Size: 108 x 97 x 88 x 36 millimeters
Drill sleeve size: aperture 8mm, hole spacing 28mm
Scale parameters:
English: Range 3-11/16 inches, minimum scale 1/16 inch
Metric: measurement range 90mm, minimum scale 1mm
Function: 35mm straight arm/mid bend hinge opening positioning, 40 bar connector opening positioning
Usage: Suitable for splicing panel furniture, quick positioning. A single panel can achieve various functions such as punching, positioning/marking/marking, etc. It has a wide range of applications, is lightweight and easy to carry
Packing list:
1 x 3-in-1 punching positioning plate
1 x pencil
.
