• Perfect work with RC led Lights,Can good realize steering, headlights, brake, reverse, atmosphere, emergency lights linkage simulation vehicle lights.
• Perfect compatible with other brands transmitter :Perfect connection of 1-4ch remote control, compatible with RC remote control cars.
• You only need to plug the 1-4 channels of the corresponding receiver into the 1-4 channels of the X6DC LED Lighting sets receiver to achieve the same control function.When it as a receiver for use,it only works with DUMBORC Transmitter.
• Anti-plug protecting:Plug and unplug the extension cord, which provides a good help for us to easily replace the battery or maintain. LED interface anti - plug, good protection of our electronic products.
• Useing under Mixed Mode:Support the use of lighting function in the mixed control mode of remote control. Safe Voltage: 4.8-10V.

Description:

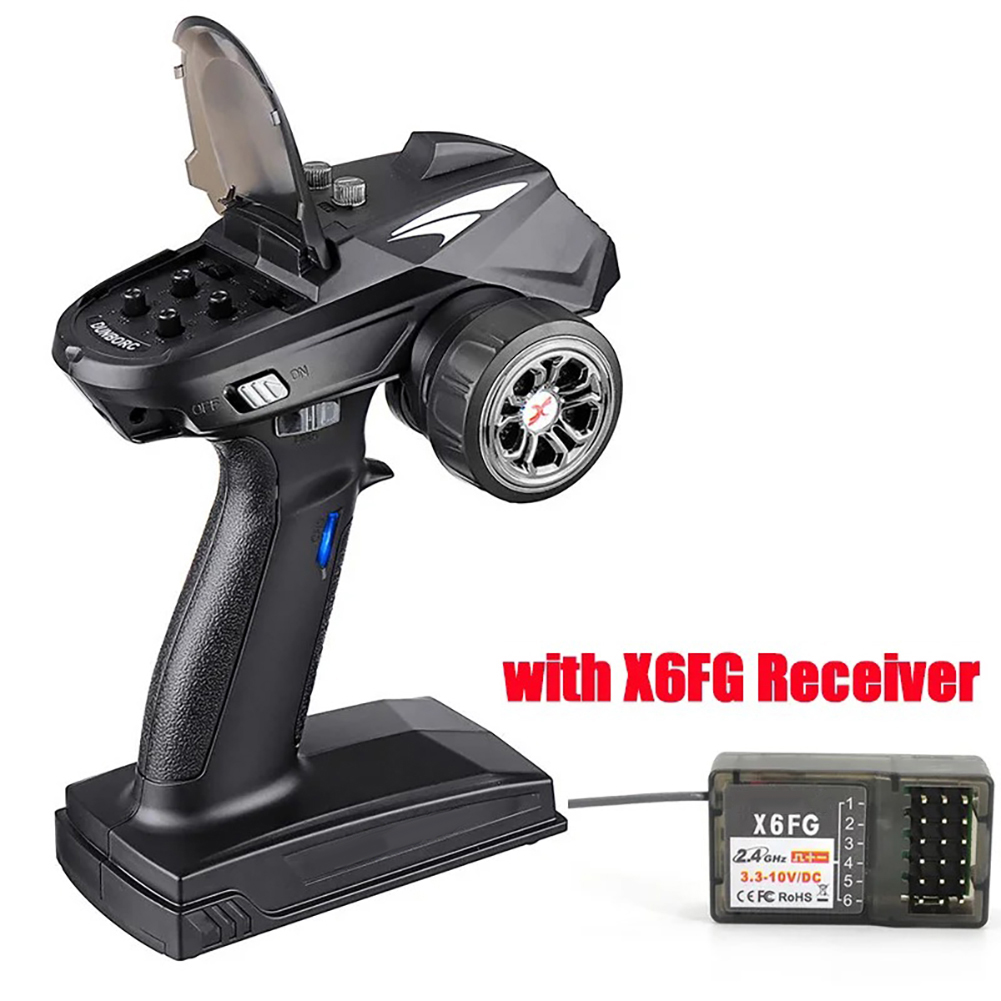

Name: Remote control
Item Brand:DumboRC
Item Number:X6(transmitter),X6F/X6FG(receiver)
Item Name:Transmitter
Material:Plastic and metal
Color:Blue and gold
Product Size:160 x 100 x 205mm
Receiver Size:35 x 20 x 13mm
Battery:4X AA(not included)

Specification:
Channel:6CH
Fit For:Rc Car Boat Tank Model,such asmn-90 and so on
Modulation Mode: GFSK
Spreading Mode: FHSS 67 channel pseudo-random frequency hopping
Control Distance: 400-500 meters
Remote Control Voltage Range: 4.8-12v
Remote Control Working Current: 80-120mA
Receiver Voltage Range: 3.3-10V
Receiver Operating Current: 30mA
RF Power: <20dbm
Data Resolution: 4096 levels, 0.5us per level
Voltage Alarm: 7.4v|4.8v
Transmission Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
Support Receiver: X6F/X6FG

R6F Receiver Specifications:
Channel: 6
Model: Cars/boats/Tanks
Control Distance: more than 400m
Spread Spectrum: FHSS
Antenna Length: 200mm
Work Current: 30mA
Power Supply: 4.8~10.0V DC
RF Power: <10dbm
Channel Resolution: 4096
Size: 1.37 x 0.79 x 0.51in
Weight: 6g

R6FG Receiver Specifications:
Channel: 6
Model: Cars/boats/Tanks
Control Distance: more than 400m
Spread Spectrum: FHSS
Antenna Length: 200mm
Work Current: 30mA
Power Supply: 4.8~10.0V DC
RF Power: <10dbm
Channel Resolution: 4096
Size: 1.37 x 0.79 x 0.51in
Weight: 6g

X6DC LED Flashing System Receiver:
AS Receiver and led light system perfect match with DUMBORC Transmitter
AS a individual LED Flashing light system work with other brand .
LED Light system can switch to different modes

Packing list: As shown
