Feature:
--Adopting the simulation structure design, it has the control feeling of a real car, and realizes full-scale continuously variable transmission, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn, right turn;
--Applicable venues: flat ground, sandy ground, muddy ground, grassland.
--Four-wheel drive: front and rear upright spring shock absorption, double wishbone independent suspension system;
--2.4G full-scale synchronous remote control system. Full-scale throttle/steering;
--Metal differential, metal differential cup, powder planetary gear, powder driving gear, powder main gear;
--Metal CVD front drive shaft, metal rear dog bone, metal wheel cup;
--Simulated off-road tires with strong grip;
Precautions:
--Charging protection: constant current and constant voltage balanced charging, protection function for battery overcharge and overcurrent.
--Motor anti-jamming protection: When overloaded, the motor stops working.
--High temperature protection: When the working temperature is higher than the setting, the drive control circuit stops working, and resumes working after the temperature drops to a safe value.
--ESC low-voltage power-off function, when the battery is lower than 6.3-6.4V, it will automatically power off to prevent the battery from being damaged due to over-discharge.
Description:

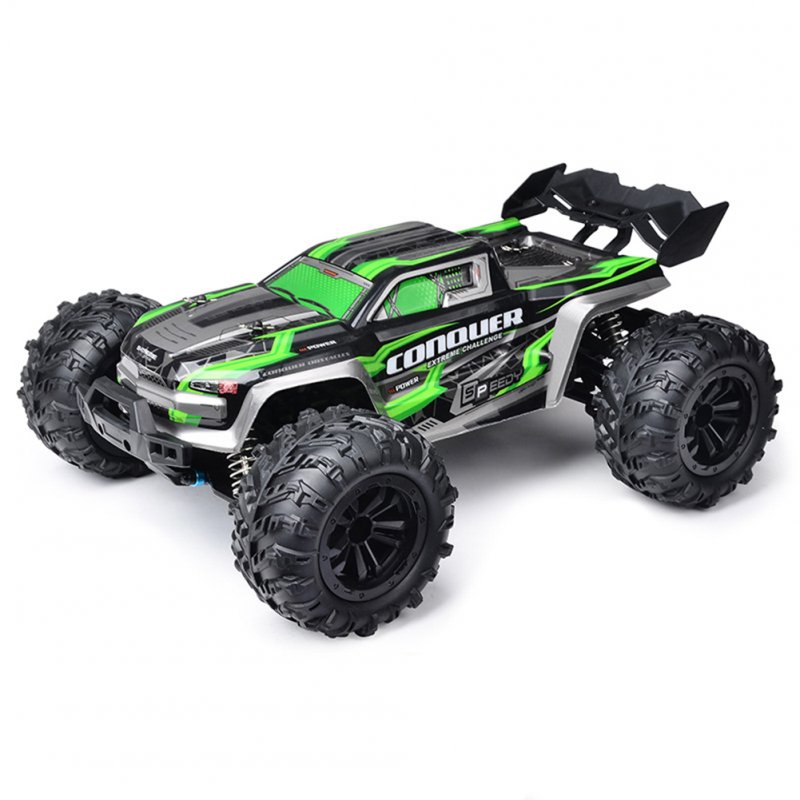

Name: Remote Control Car
Item No. JT-16102PRO
Packing method English hand-held unpacking color box
color red/green
Product specification 30 x 23 x 11.5 CM
Remote control specification 13 x 7.5 x 21 CM
Color box specification 30.6 x 14.8 x 24.1 CM
Body weight 1000g
Remote control weight 180g
Including packaging weight 1700g
Lighting configuration LED headlights
Differential structure Planetary gear differential
Material Hardware; Electronics; Plastic
Motor 2840 brushless motor (4000 KV value)
ESC/receiver 35A ESC/receiver integrated control (waterproof)
Body battery 7.4V 1500mAH 15C lithium-ion battery (T plug)
Steering gear Three-wire 17G digital steering gear
Remote control battery 3 AA (not included)
Charger USB Balance Charger
Frequency 2.4GHz (supports multiple cars competing in the same field)
Remote control distance ≥120 meters
Remote control category Full scale synchronous control system (gun control)
Control time 15-18 minutes (continuous running at full speed)
Charging time 3-3.5 hours (USB balance charge)
Wheelbase parameters Wheelbase: 185mm; wheelbase: 188mm; wheel diameter: 85mm;
70 km/h (extreme speed)
Protection function 1. Charging; 2. Stuck; 3. High temperature; 4. Low voltage
Packing list:
1) Remote Control Car;
2) Remote control;
3) Product manual in English;
4) Lithium battery;
5) USB charger;
6) Tail wing;
7) Head up wheel;
8) LED headlamp;
9) Small cross screwdriver;
10) R type shell snap ring;
11) Damping adjusting snap ring;
Note:
Due to manual measurement, please allow 1-3 cm error, thank you.
Due to screen and other objective reasons, there may be a certain color difference, please understand.
.
