Description:
Item type:Transistor Tester
After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.
Use 12864 liquid crystal display with green backlight
128*64 Backlight LCD display,only 2mA when stand by.
Display: 3.5 inch TFT Screen
Diode Range: < 4.5V
Zener Diode: Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT < 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery: 0.1-4.5V
Power Mode: Rechargeable Lithium Battery (included)

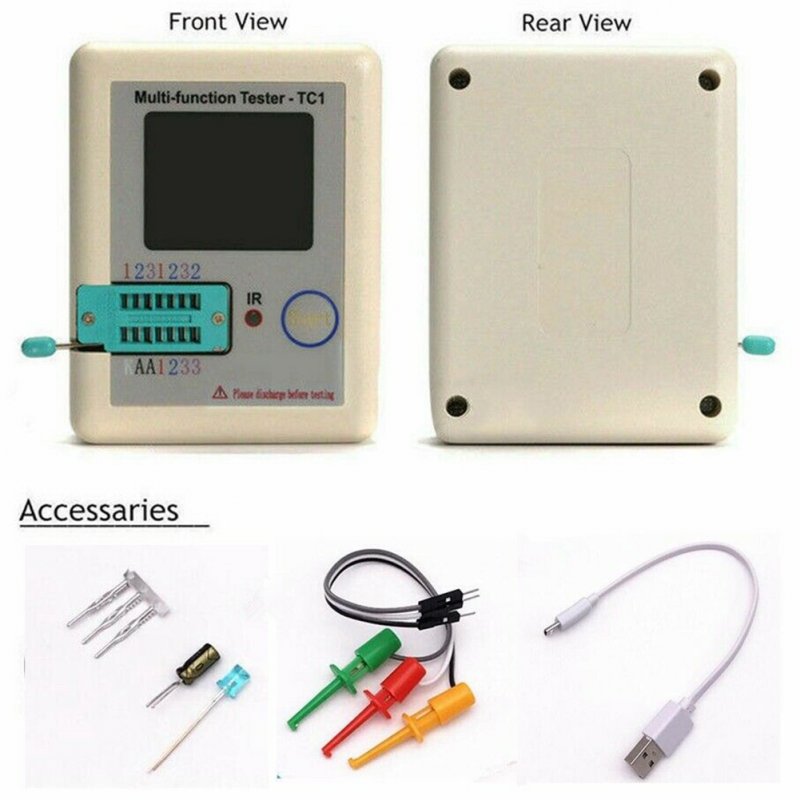

Package Include:
1 x Transistor Tester
1 x Charging Wire
1 x Test Chips
1 x Test Components Package
Note:
The colors deviation might differ due to different monitor settings.
.
