• High definition: the resolution can reach up to 2304*1296P, and the picture quality is more delicate, clearer, more natural and more real.
• Super night vision function: double filter automatic switching, 4 white lights +4 infrared lights, irradiation distance up to 10 meters, night vision effect is strong, night picture is clearly visible.
• Large memory: local storage of cyclic records: TF card supports automatic overwriting function up to 128 GB. You can store a lot of records.
• Remote intercom technology: Support two-way voice call, built-in high-power speaker and high-sensitivity microphone, at any time through the mobile phone remote intercom.
• AI humanoid detection, real-time alarm: When there is a humanoid movement in the monitoring area, immediately push an alarm message to the mobile phone.

Description:

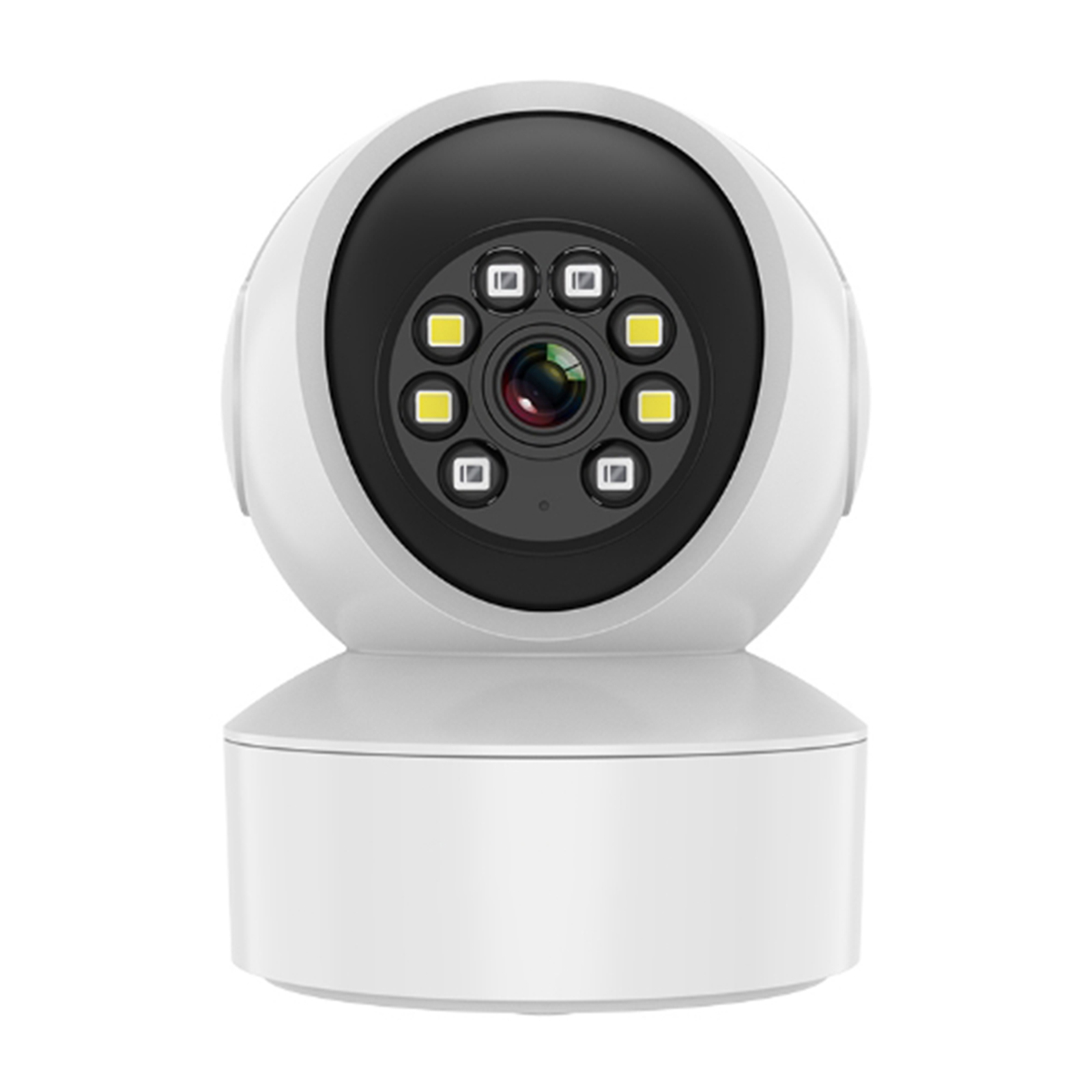

Name: Wireless camera

Operating system: Embedded Linux

Number of online users: Four users are watching online at the same time

CPU/ Image sensor: 1/3 inch CMOS sensor

Minimum illumination: 0.5Lux (color mode),0.1Lux (black and white mode)

Lens/Viewing Angle: 4mm@F2.1/90.9° diagonal

Night vision: double filter automatic switching, double light source, 4 white light, 4 infrared light, irradiation distance 5-10 meters

Compression standard: H.264 main profile/Motion-JPEG/JPEG

Stream: Main stream: 1296p(2304×1296)@25fps

Substream: 360p(640×360)@25fps

Bit rate/Max frame rate: 128 ~ 4096kbps/25fps

Image adjustment: brightness, contrast can be adjusted

Audio input: Built-in -38dB microphone

Audio output: Built-in 8Ω1W speaker

Sampling frequency/bit width: 8KHz/16bit

Compression standard/bit rate: G.711/64kbps

Network interface: 10Mbps/100Mbps adaptive /RJ45 interface

Network protocol: TCP/IP, HTTP, TCP, UDP, DHCP, DNS, NTP, RTSP, P2P, etc

Wireless network: IEEE802.11b/g/n; Support AP mode

Wireless frequency: 2.4GHz

Wireless security encryption: 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption

Head rotation Angle: horizontal 348°/ vertical 70°

Preset bits: Support 16 (mobile app only supports 5) preset bits

Storage function: Support T-Flash card (up to 256GB); Cloud storage; NVR; NAS

Alarm detection: Support motion detection; Humanoid detection, humanoid framing, off-post monitoring, area detection

Rated voltage: DC 5V±5%

Rated power: 2.6W (infrared light on)/ Maximum power: 5.8W (PTZ on)

Working environment: Working temperature: -10 ~ 50℃, working humidity <90%

Packing list: Camera x 1, power cord x 1, manual x 1.
