• Chipset: The mini amps chip uses XMOS XU208+ES9038Q2M+JRC5532 to provide strong guarantee for tone input and output.
• Analytical Function: The DA580 is defined by a focus on delivering quality exteriors. Support DSD256/1bit and PCM384kHz/32bit bit rate/bit width,Strong analytical power, sound fine and round, extension is very good, shocking.
• Unique Design: Compact and adaptable, connect to active speakers to improve sound quality, or for use as a powerful headphone amp. NOTICE: volume adjustment only works on headphones. You can turn off your active amplifiers according to needs
• Efficient protection and long life: The audio decoder uses special op amps specially designed for audio. The op amp can be freely replaced and upgraded. At the same time, a relay protectors may protect the headphones and speakers.
• Perfect for Music and Gaming:When you use it for music, it can bring you fantastic music enjoyment. it also is really good for gaming.Can use it with shocking atmos and the directional sounds perfectly.

Description:

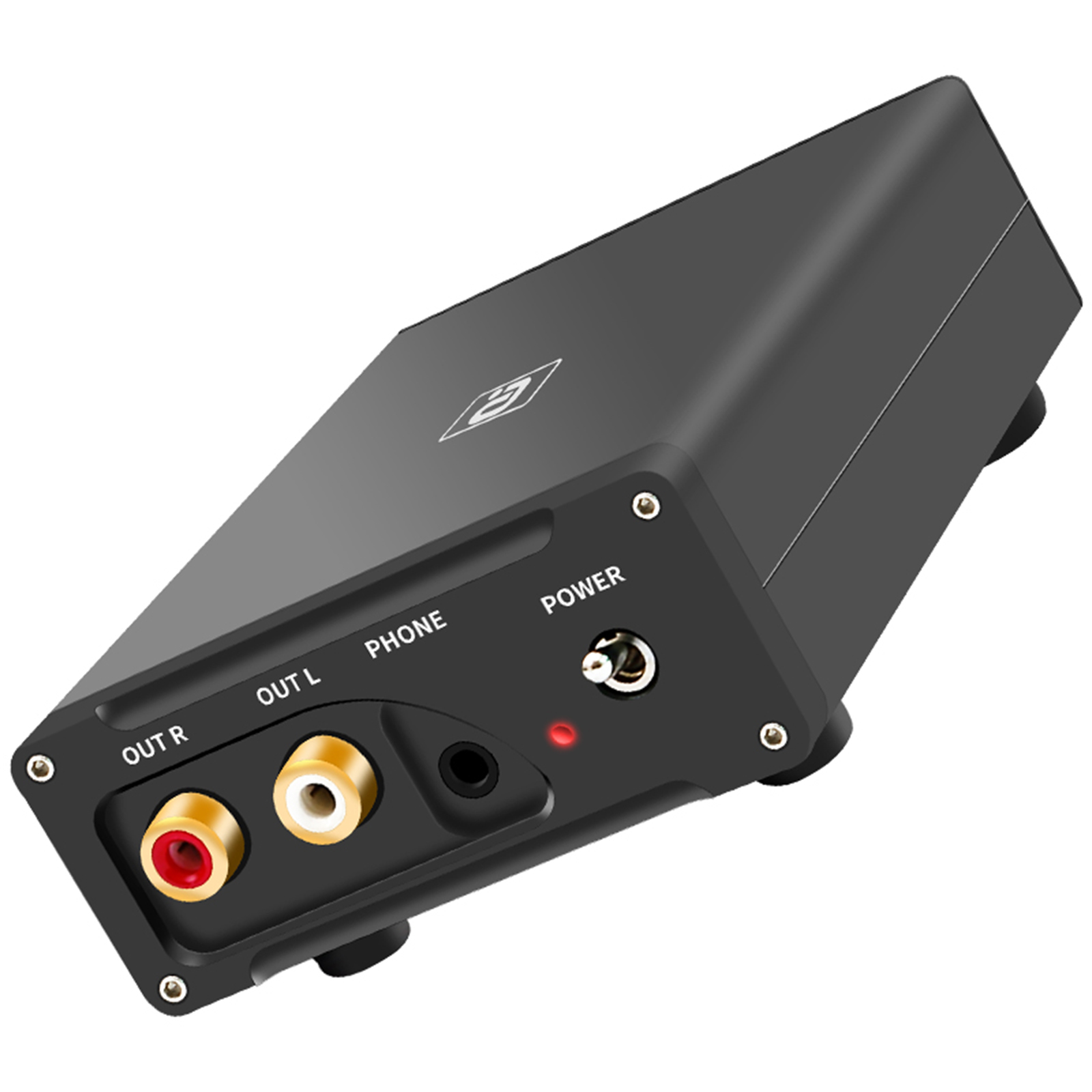

Name: Digital Audio Converter

Model: DA580;

Shell material: aluminum alloy;

Chip combination: XMOS XU208+ES9038Q2M+JRC5532;

Input interface: USB sound card;

Output interface: RCA+3.5mm headphone jack;

USB sound card support system :Compatible for Win11 and below version, Compatible for Android, iphone, etc.

Signal to noise ratio (SNR):+127dB;

Total harmonic distortion + noise (THD+N):-120dB;

Ear amplifier performance: 120dB signal to noise ratio and dynamic range;

Headphone impedance :16-300 ohms;

Headset power :Max 300mW;

Power supply :DC 12V/1A;

Product size :108x72x30mm;

Product weight :209.5g;

Packing list:

1 x headphone amplifier

1 x power supply

1 x 3.5MM cable

1 x manual

1 x packing box

Note:

Due to manual measurement, please allow 1-3cm differences, thanks (all measurements are in cm, please note that 1cm=0.39 inches).

There may be color difference due to different computers or smartphones, please forgive me!
