• OE: 19120859, 15228539, 15130742, 15046512
• Anti Interference: The video extension cable is equipped with a pipe sleeve and copper core wire. The double-layer shielded wire ensures stable, anti-interference, and antioxidant transmission for the rear camera.
• Excellent Performance: The camera is made of high-purity material, which meets the international standard of lP67 waterproof. The tailgate handles are made of reinforced ABS plastic with a treated surface for durability.
• Wide-Field: The 170u00b0 perfect viewing angle design and micro lens with mirrored visual angle provide you with a wide field of view. And with 720P clear image and good night vision effect.
• Easy To Install: Connect the camera's power supply to the reversing lights, then connect the rearview camera to your radio screen or monitor through a Universal Display (RCA) cable, providing sensitive, real-time and continuous HD color images.

Description:

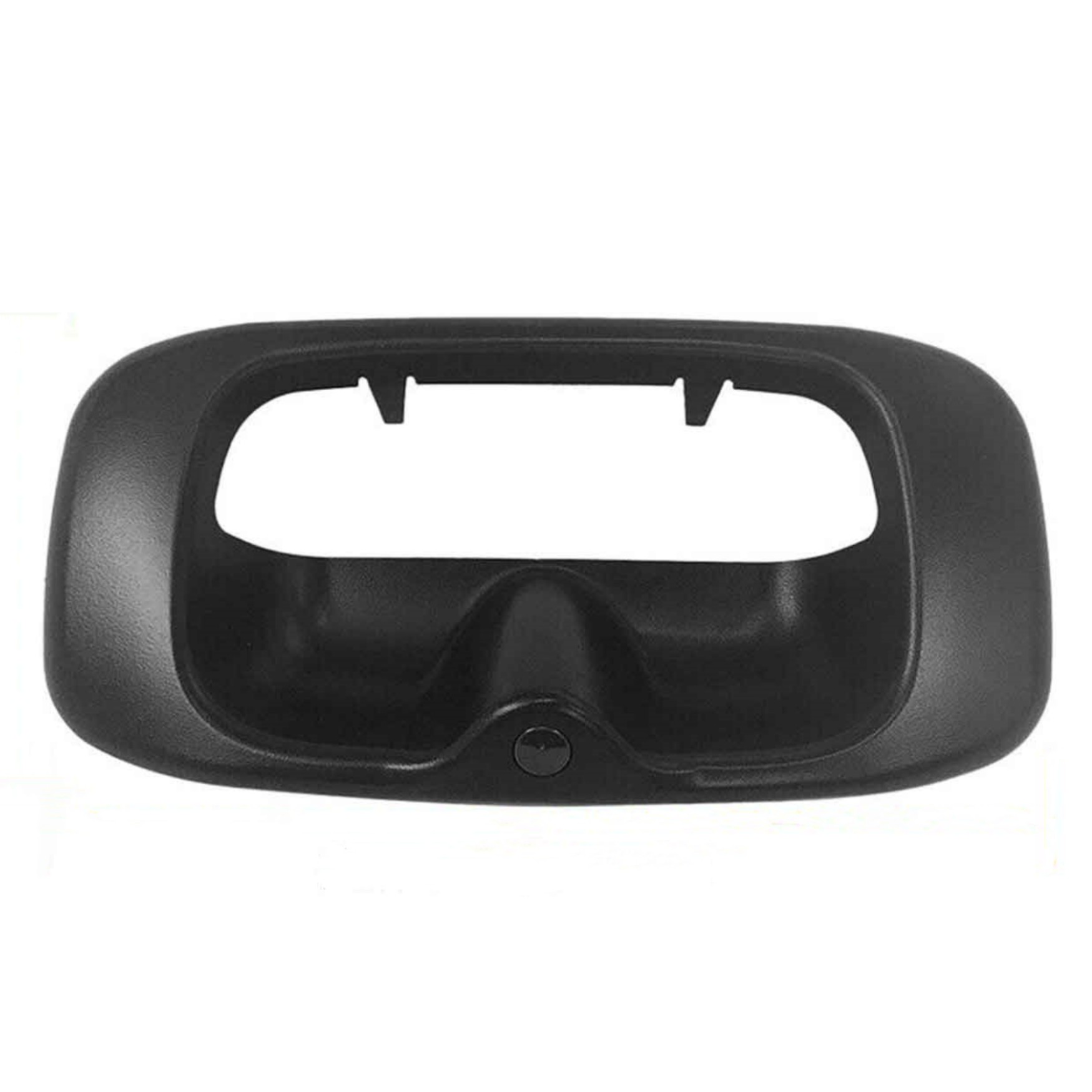

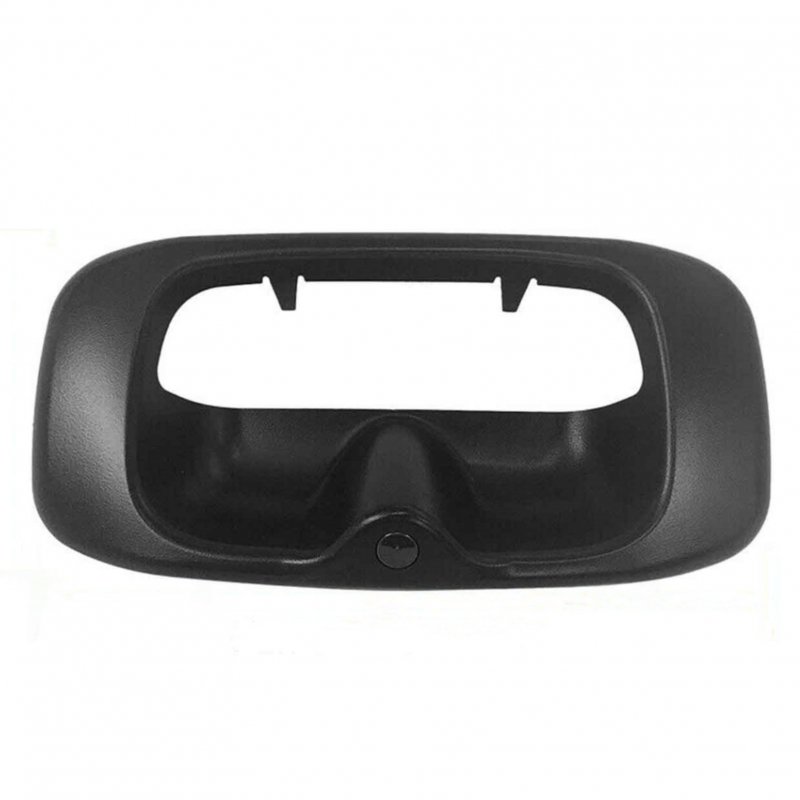

Name: Tailgate Handle Camera
OE: 19120859, 15228539, 15130742, 15046512
Vision: Using chip sensors and lenses from the 360 system
Camera type: handheld camera
Image sensor: 1/3" CCD color camera with starry night vision function
Detection angle: 135° (H), 170° (D), 97° (V)
Installation position: rear
Applicable type: direct replacement
Power supply: DC 12V
Working temperature: -30 ℃ -80 ℃
Effective pixels: 1280 * 960 pixels
Output resolution: (HD) 1280 x 720, (CVBS) 1280 x 480
Image frame rate: (HD) 25/30 frames/second, (CVBS) 50/60 frames/second
Video standard: AHD/CVBS
Working current: 5V:96mA
Minimum illumination: 0.0001Lux/1.2F
Sensitivity: 4500mA/Lux-sec
Signal to noise ratio: 38 decibels
Lens: 1/3 6 glass lens
Features: waterproof, night vision, distance line
Note: PAL/NTSC is optional and defaults to NTSC. PAL can be provided upon request
Most monitors are suitable for PAL and NTSC systems. This product does not include a lock hole cover.
Applicable Models:
Compatible for 1999-2006 1500
Compatible for 2007 1500 Classic
Compatible for 2005-2006 1500 HD
Compatible for 2001-2003 1500 HD
Compatible for 2007 1500 HD Classic
Compatible for 1999-2004 2500
Compatible for 2001-2006 2500 HD
Compatible for 2007 2500 HD Classic
Compatible for 2001-2006 3500
Compatible for 2007 3500 Classic
Packing list:
1 x Tailgate Handle Camera
1 x Power Cord And Video Cable
Note:
1. Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
