1. Comparing the cables/wires’ diameters with the feeding holes on the machine, feeding the cables/wires one piece at one time. Before feeding the cables/wires, please cut off the head of the cables/wires, to avoid gaps caused to the blades.
2. On the output side, if the cuts on the cables/wires are too deep, please check below points:
1) Please adjust the handles on the input side, screw down or loose them. (M12 handles)
2) Check whether the cables/wires on the right position as you feeding them.
3) Make sure the blades are sharp, if not, polish them with the oil stone.
3. On the output side, if see the plastic (PVC) has been removed, but the copper wires can not been disgorged, please check below 4 points:
1) polish the axis of the upside with the oil stone.
2) Check whether the springs are loose, if yes, screw down to make them tighten.
3) The diameter of the cables/wires are too small, please adjust the space between the two axises to 0.3-0.6mm.
Easy To Operate
370W Ppowerful Motor
Alluminum Alloy
Protective Design
10 Blades & 11 Holes
Adjustable Screw
6x10mm,8x16mm,∅1.5-∅3mm,∅3-∅5mm,∅6-∅7mm,∅8-∅10mm,∅11-∅12mm,∅13-∅16mm,∅17-∅22mm,∅23-∅38mm

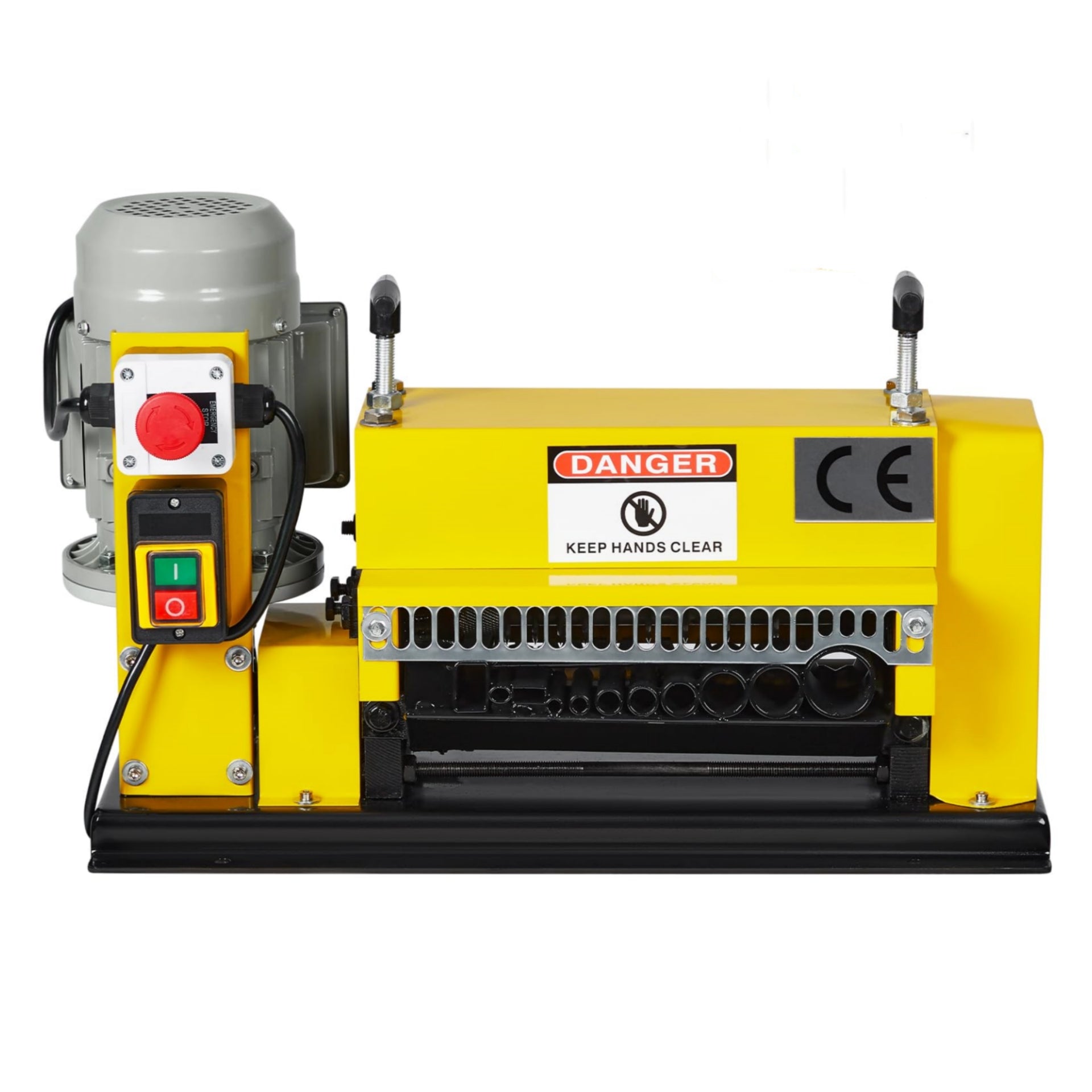

The electrical wire insulation removal machine is suitable for different sizes of wires and perfect for recycling copper wire, removing the plastic and rubber insulation from undamaged scrap wires.
Specifications
| Brand | GARVEE |
| Material | Aluminum |
| Color | Yellow/Blue |
| Grip Type | Ergonomic |
| Power | 370W |
| Cutting speed | 65 ft/min |
| Holes | 11 channels |
| Blades | 10 sets |
| Wire remove range | 0.06-1.5inch (Φ1.5- 38mm) |
| Product Dimensions | 27.95x15.35x18.70inch (71x39x47.5cm) |
| Item Weight | 105.38lb (47.9kg) |
.
