Key Features...

• 4 Channel NVR Kit with wireless IP Cameras brings comprehensive security to your home or business
• 4 HD Wireless IP cameras with PI66 rating for easy setup indoors or out
• IR CUT and 10Meter night visions let you monitor your property night and day.
• SATA HDD support lets you store up to 4TB of recordings

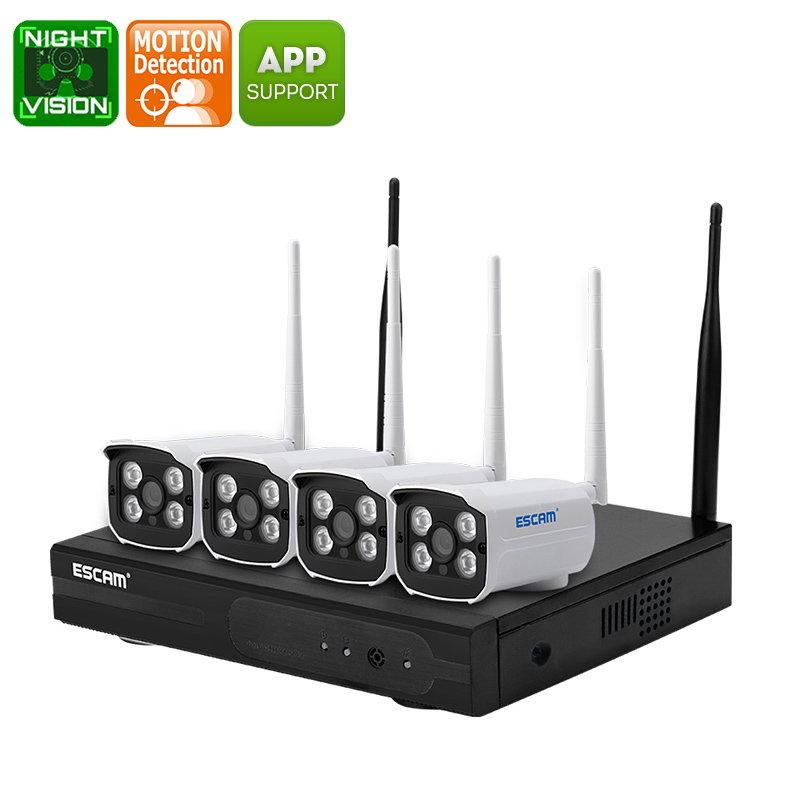

The ESCAM WNK403 NVR Kit is a complete surveillance security package for your home or business. With 4 IP cameras suitable for use indoors or out as well as network video record to capture the footage and remote video playback via your phone, tablet or PC you'll get great peace of mind from this security package.

Comprehensive 4 Channel NVR Security Kit

Coming with everything you need for a complete security surveillance solution this channel NVR kit from ESCAM is geta value for money. It comes with four 720P wireless cameras. That is quick and easy to set up. With dual Wi-fi antennas, the NVR offers stable wireless connectivity over longer distances so you have the freedom to place the cameras where they are needed most without needing extensive cabling.

The NVR supports HD video recording and can accommodate a 4TB SATA HDD (not included). Using the lossless H.264 video compression you can record hours of footage on this NVR Kit. There is mobile phone support so you can remotely view the video feeds from any corner of the globe.

Including 4 HD wireless cameras with an IP66 rating means you can cover outdoor areas as well as those indoors as they are well protected from rain and bad weather. The HD resolution means you have reliable video footage that makes it easy to identify suspects and gather intel such as registration plates and other details.

The cameras each have IR LEDs to offer round the clock monitoring. With motion detection and notifications this security setup will also notify you of any intruders.

The ESCAM 4 Channel NVR and IP Camera Set comes with a 12 months warranty, brought to you by the leader in electronic devices as well as wholesale surveillance kits and security gadgets.

.

Manufacturer Specifications

General

• Operating System: Embedded Linux
• Network Video: 4CH
• Network video input broadbank: 20Mbps
• HDMI input 1ch resolution: 1024x768, 1366x768, 1440x900, 1920x1080p
• VGA output 1ch resolution: 1024x768, 1366x768, 1440x900, 1920x1080p
• Video Resolution: 720P
• Record Mode: Manual, Timing, Motion Detection
• Playback mode: Real time, Routine, Event
• Backup: USB backup
• Control Mode: USB mouse
• Video Systems: PAL/NTSC (Auto)
• Video Compression: H.264 MP4
• Display Split: 1/4
• Motion Detection
• Alarm: Sensor Triggered, Video Loss, HDD Error
• ONVIF 2.0
• USB Interface: USB 2.0
• Power Supply: DC12V 2A
• Power Consumption (W): less than 5W (Without HDD)
• Operating Temperature: -10 to +55 Degree Celsius
• Working Humidity (%) RH: 10%-90%

Connectivity

• Ethernet: RJ-45 Interface 10/100Mbps
• Wi-Fi: 802.11 b/g/n
• Network Protocol: UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up)/DHCP (Automatically obtain an IP address

Camera

• Video System: PAL/NTSC
• Resolution: H.264 1280x720@15fps or below, H.264 640x480@30fps or below
• Frames per second: 15-30 FPS
• Wi-Fi: 802.11 b/g/n
• Weatherproof Rating: IP66
• White Balance: Auto
• 4 IR LED
• IR CUT
• Night Vision: 10 Meters
• 3D-DNR: Auto
• Mirror/Flip: On / Off
• S/N: >39.1 Db
• Anti-thunder Level: Standard IEC61000-4-5
• Operating Temperature: -10 to +55 Degree Celsius
• Working Humidity (%) RH: 20%-90%
• Power Input: DC12V 1A
• Power consumption: less than 6W

Camera Lens

• Lens: 3.6mm
• Image Sensor: 1/4 Inch Progressive CMOS Sensor
• Shutter: 1/25s to 1/25,000s
• Viewing Angle: 70 Degrees

Camera Night Vision

• IR Cut
• Infrared Light: 4 IR LEDs
• Minimum illumination：Color: 0.1 Lux; B/W: 0.01 Lux
• Night Vision Range: up to 10 Meters

Memory

• SATA Hard Disk Drive Slot up to 4TB (HDD Not Included)

NVR Ports

• SATA Hard Disk Drive Slot
• VGA
• USB
• HDMI
• RJ45

Camera Connection

• Ethernet / Wi-Fi

Languages

• German, English, Spanish, French, Italian, Portugues, Vietnamese, Turkish, Russian, Hebrew, Arab, Thai, Korean, Chinese (Simplified), Chinese (Traditional), Japanese

Dimensions

• NVR dimensions: 257x210x42 mm (L x W x D)
• NVR weight: 730g
• Camera dimensions: 107x68x60mm (L x W x D)
• Camera weight: 250g
• Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Package Contents

• NVR
• 4x WiFi Camera
• 5x Screw Bag
• USB Mouse
• 5x Power Adapter
• 4x Waterproof Cap
• Network Cable
• User Manual

Enjoy the following benefits:

• Orders processed and shipped within 24-hours
• 12 month warranty
• In-house QC
• Member discounts
• Award winning customer support
• Quantity order discounts
• Worldwide Shipping
• Certification: CE, FCC, RoHS
