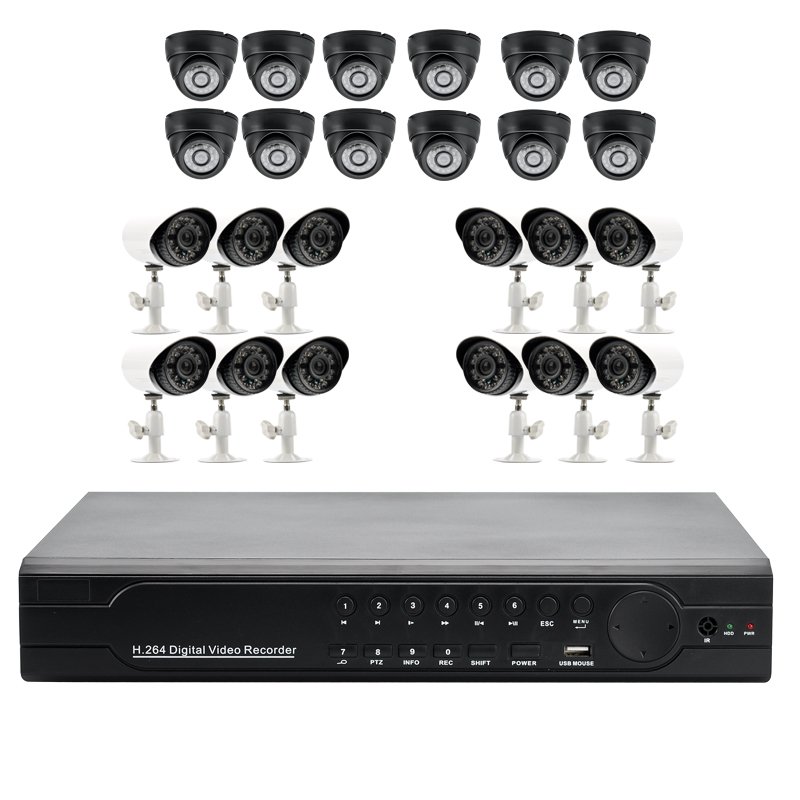

Security Surveillance DVR Kit - 1080p, 1TB HDD Included, 24 Channels, 12x Indoor Cameras, 12x Outdoor Cameras, IP66 Weatherproof

Product code: CVYC-I468
24 Channel Security Surveillance DVR Kit
24 Channel Security Surveillance DVR Kit
$749.99  $900.06
This Security Surveillance DVR Kit supports 1080p, has 1TB HDD Included as well as 24 Channels in addition to twelve Indoor Cameras, twelve Outdoor Cameras and a 15 Meter IR Distance.

The Mecca of high security surveillance is now here at Chinavasion, and you can purchase it now and enjoy a greater protection at work, in the office, at the factory or in the school. This DVR supports up to 24 cameras, providing plenty of options to observe plus it actually comes with 24 cameras as part of the package.


Boasting a high performance embedded microprocessor, this DVR has a selection of resolutions to choose from including 1280x1024 VGA, 1024x768 and 1080p HDMI. Plus all 24 cameras feed footage can be viewed at the same time as you can select 1, 4, 8, 16 and 24 display split. All footage as well is compressed into H.264 video format, which is incredibly popular among video distributors plus audio is compressed into ADPCM format. Inside there are two SATA ports where a single disk capacity supports up to 4TB; however to get you started we have included a 1GB HDD.


There are 12 outdoor and 12 indoor cameras that come with a 1/4 inch color CMOS image sensor with a 3.6mm lens and 700 TVL high resolution. All the cameras have an emitter wave length of LED at 850nm as well as am IR distance of 15 meters so these cameras can capture everything even when there is low or limited light available.

There is auto white balance and back light compensation plus the power consumption is less than 3W making them financially beneficial. A big bonus is that the outdoor cameras have a weatherproof rating of IP66 and can work in temperatures ranging from -10 all the way up to 80 degrees so they can be used in many environments.

This product is in stock now, we guarantee next working day shipping and offer a 12 months warranty on all our products. Brought to you by the leader in electronic devices as well as wholesale Security Cameras and DVRs, Chinavasion.

At a Glance...
  • Security Surveillance DVR Kit
  • 1080p Support
  • 1TB HDD Included
  • 700TVL
  • 24 Channels
  • 12x Indoor Cameras
  • 12x Outdoor Cameras
  • IP66 Weatherproof
  • 15 IR Distance
Manufacturer Specifications

    • Main Processor: High performance embedded microprocessor
    • System Resource Pentaplex: Live recording, Playback, Backup, Remote access, PTZ control, Mobile monitoring
    • Control Mode: Front panel, USB mouse, IR remote control, Keyboard, Network

    • Input: 24CH, BNC, (1.0Vp-p, 75 Ohm)
    • Standard: NTSC 720F/S, PAL 600F/S, NTSC 960F/S, PAL 800F/S
    • Output: 1BNC, (1.0Vp-p, 75 Ohm), 1VGA, 1×HDMI

    • Input: 4×RCA
    • Output: 1 ×RCA

    • Display Split: 1/4/8/16/24
    • Resolution: VGA: 1280x1024, 1024x768, HDMI: 1080p
    • Tour Display

    • OSD: Camera title, Time, Video loss, Motion Detection, Recording
    • Video/Audio-compression Standard: H.264/ADPCM
    • Image Resolution: CIF (352x288)
    • Encoding Stream Main stream: 25FPS/CH (CIF)
    • Extra stream: 1-5FPS/CH (CIF)
    • Recording Priority: Manual>Alarm>Motion detection
    • Recording Interval: 5 to 120mins (Default: 60 Minutes)

    Video detection and Alarm
    • Trigger events Recording, PTZ movement, Alarm, E-mail
    • Motion Detection: Zones: 192 16x12
    • Sensitivity: 1-5 (Level 5 is the highest)
    • Video Loss
    • Alarm input/output: 8CH input/1CH output

    Playback and Backup
    • Playback Channel: 24
    • Playback Speed CIF: 25FPS/CH
    • Search Mode: Time/date, Alarm, Motion detection
    • Playback Function: Play, Pause, Stop, Fast forward, slow forward, full screen
    • Backup mode: U-disk/Hard disk/USB /CD/Download

    • Physical interface: RJ-45port (10/100M)
    • Network function: TCP/IP, UDP, DHCP, DNS, IP filter, PPPOE, E-mail, UPNP, DDNS, DNS
    • Remote operation: Monitor, PTZ control, Playback, System setting, files download, Log information

    Hard Disk
    • Hard Disk: 2x SATA port, Single Disk Capacity Support 4TB

    • Image Sensor: 1/4 Inch Color CMOS
    • Lens: 3.6mm, 60 Degrees
    • Video System: PAL
    • Effective Pixels: PAL: 976(H) ×582(V)
    • Resolution (Horizontal): 700TVL high resolution
    • Weatherproof: IP66
    • Emitter Wave Length of LED: 850nm
    • IR Series Distance: 15 Meters (IR LEDs ON)
    • White Balance: Auto
    • Back Light Compensation: Auto
    • Min. Illumination: 0Lux at F2.0, 0 Lux (IR LED ON at night)
    • Electronic Shutter: 1/50 (1/60) ~ 100,000 Sec.
    • S/N Ratio: More than 48dB (AGC OFF)
    • Power Consumption: Less than 3W
    • Operating Temperature: -10 to 80 Degree Celsius

    • DVR Dimensions: 303x368x69 mm (L x W x D)
    • Outdoor Camera Dimensions: 63x50x82 mm (L x W x D)
    • Indoor Camera Dimensions: 76x92x92 mm (L x W x D)
    • DVR Weight: 2540g
    • Outdoor Camera Weight: 209g
    • Indoor Camera Weight: 151g
    • Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

    Package Contents
    • DVR
    • 12x Indoor Camera
    • 12x Outdoor Camera
    • Remote Control
    • Mouse
    • Camera Power Adapter
    • EU Adapter
    • 12x Stand
    • Screws
    • 24x Camera Leads
    • DVR Power Adaptor
    • 6x 4-in-1 Cable
    • User Manual
    • Alarm

    Ordering from Chinavasion provides you with the following benefits:
    • 12 month warranty
    • In-house QC
    • Member discounts
    • Award winning customer support
    • Quantity order discounts
    • Worldwide Shipping
    • Certification: CE, FCC, RoHS
