This product is out of stock, and not coming back.
It may have been replaced by a newer version, see replacement/alternatives listed below.

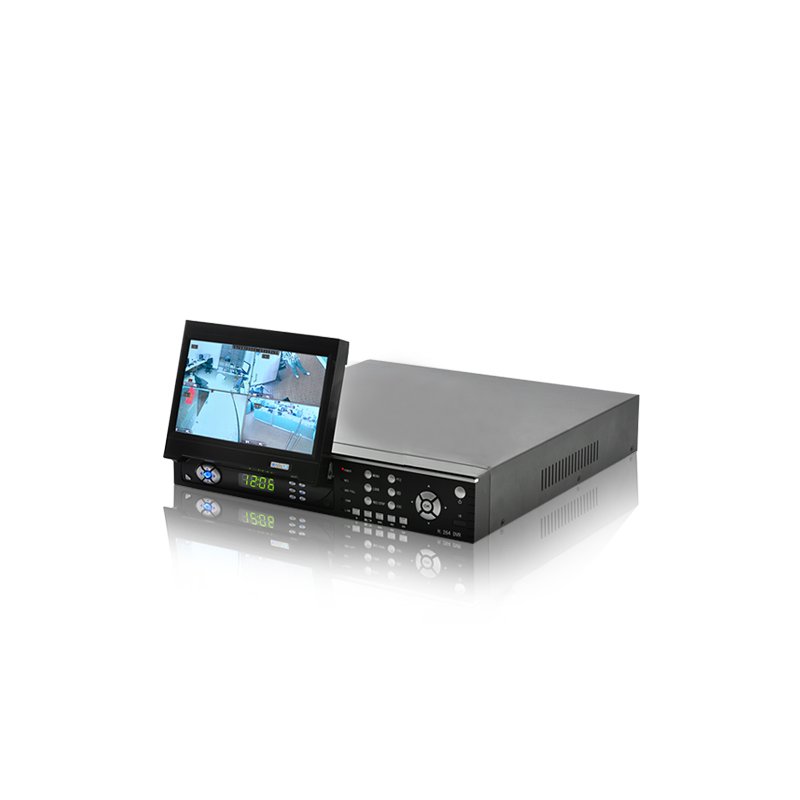

4 Channel DVR - H264 DVR, 7 Inch Flip-Out Screen

Average Customer Rating:  based on 1 reviewsprice range: 187.84 - 172.07
Product code: CVKT-E196
4 Channel H.264 Security System with LCD
4 Channel H.264 Security System with LCD
Avg Customer Rating:
4 Channel H.264 DVR with 7 inch flip-out screen: a true all-in-one security system featuring powerful network capabilities for you to monitor your home or business, record high resolution videos and view them over internet.

This DVR can connect up to 4 security cameras (PAL or NTSC) and enables you to comfortably take control of them. With a 7 inch flip-out screen, you can view videos directly without connecting it to a monitor, saving you lots of money and time. The DVR also allows for single camera or quadrant split screen viewing.

With support for TCP/IP, UDP, HTTP, NTP, DHCP, and DDNS network protocol, it is possible to connect the DVR Security System to your LAN or even the Internet, meaning that even if you are miles away, you can still keep a close eye on your home or business, as long as you have a computer with internet access. You can even perform PTZ control or command your DVR to capture still images and videos as solid evidence for further legal actions.

A great wholesale price makes this 4 Channel DVR Security System perfect for reselling online, or personal/company use. Also comes with our famous 12 month product warranty. Order yours right now, from the leading electronics wholesaler - Chinavasion.

At a Glance...
  • 4 Channel Simultaneous Recording/Viewing
  • 7 inch Flip-Out Screen for Viewing Videos
  • H.264 Video Compression
  • Support Remote Access through LAN or WAN
  • Remote Controllable
  • Embedded High-speed Microcontroller and Linux System
  • Great DVR at a Great Price
Manufacturer Specifications
Video Specifications
    • Video System: PAL, NTSC
    • Video Compression: h.264
    • Video Standards: PAL (360x288, 100 fps), NTSC (360x240, 120 fps)
    • Number of Camera Inputs: up to 4
    • Video Display: Single or 4 Cameras
    • Recording Mode: Manual/Remote/Motion Detection/Timing
    • Input:
      - Video Input: 4 x BNC Connector, 1.0V p-p/75 Ohm
      - Audio Input: 4 x RCA, 200-3000mV, 5Kohm
    • Output:
      - Video: 1 channel TV output, BNC, 1.0Vp-p, 75 Ohms
      - Video VGA
      - Audio: 1 Channel RCA, 200-3000mV, 5Kohm

Network Specifications
    • Ethernet: Wired RJ-45 (10M/100M)
    • Storage Type: 3.5 inch SATA HDD, Can supported 2TB HDD (NOT included)
    • Network Protocol: TCP/IP, UDP, HTTP, NTP, DHCP, DDNS
    • Network Function: IE Remote Monitor, Control, Setup, Playback
    • CMS: YES (Maximum 16 Different I Addresses)

General Specifications
  • Color: Black
  • Remote Control: YES
  • Mouse Control: YES
  • Screen Size: 7 Inch
  • OS Language: English, French, Spanish, Portuguese, Italian, Chinese, Turkish, Persian, Russian, Polish
  • Dimensions: L: 325 x W: 345 x H: 60 mm
  • Certification: CE, FCC, RoHS

Product Notes
  • Comes with full featured remote controller
  • Comes with crystal clear 7 inch flip-out screen for viewing videos
  • You can easily change the BNC connection to an RCA AV type with a simple BNC to RCA coupler adapter
  • H.264 compression to maximize recorded video quality
  • If you are looking for DVR sets complete with 4 x Cameras and 500 GB HDD, please check out I39, I40, I41 or I42
  • If you are looking for 8 Channel, 16 Channel dual stream DVR, please check out CVSH-E176, CVSH-I145
  • User and Password for the software can be found in the user manual

Package Contents
  • 4 Channel DVR with 7 inch Flip-out Screen
  • Power Cable
  • Remote Controller
  • User Manual
  • Software CD
  • Screws
  • USB Mouse

FAQ - Frequently Asked Questions
  • Can I use less than 4 cameras with this DVR?
    Totally. You can connect 1, 2, 3 or 4 cameras with this DVR. If you have less than 4 cameras, the quadrant split screen will only show images of your cameras. The remaining part will show blank.

Ordering from Chinavasion provides you with the following benefits:
  • Orders processed and shipped within 24-hours
  • 12 month warranty
  • In-house QC
  • Member discounts
  • Award winning customer support
  • Quantity order discounts
  • Worldwide Shipping

  • Comparing Products? Please Search Chinavasion for Alternative: SecurONE Plus - Complete Surveillance Kit (H264 DVR + 4 Cameras + 1TB HDD), CVLM-I201


Customer Reviews(1)

4 out of 5
4 star rating 4 star rating 4 star rating 4 star rating
4 Channel DVR - H264 DVR, 7 Inch Flip-Out Screen
Deliverystarrs 4starrs 4starrs 4starrs 4
Value for Moneystarrs 4starrs 4starrs 4starrs 4
Packagingstarrs 4starrs 4starrs 4starrs 4
Ease of Setup/Usestarrs 4starrs 4starrs 4starrs 4
Function/Performancestarrs 4starrs 4starrs 4starrs 4
Write Review
System with 7 Inch Flip-Out Screen

good product.....

Date Launched: Nov 14 2011
