At a Glance... - 24 channels for Analog Cameras and an additional 9 Channels for IP Cameras
- Perfect for Gradually Upgrading Analog to IP Camera Systems
- 1TB HDD included and support for up to 8TB of local HDD storage
- H.246 Video compression makes the most of your storage space

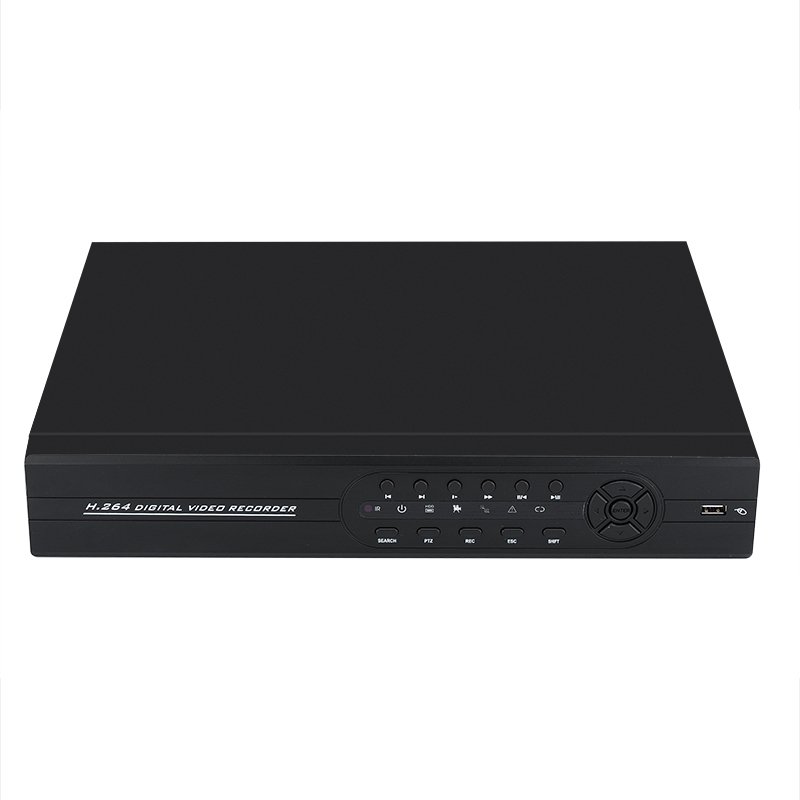

Hybrid DVR + NVR Security System
24 Channel Security 2 in 1 DVR & NVR hybrid security system with H.264 video compression come with a 1TB HHD so all you need are the cameras and you are set to go. The great benefit of this hybrid NVR / DVR system is that you don't have to abandon your complete analog system as this hybrid can perform both DVR and NVR functions easily. This allows you to use older analog / TVL resolution cameras but you can work in higher definition and wire in newer IP cameras as you see fit. It's the perfect solution for upgrading from the older CCTV systems without having to splash out on everything all at once.
With full HD 1920x1080 display quality through the HDMI port you can receive ultra sharp forensic detail images of all that's going on. Whether you connect 24 cameras through the analog DVR setup or 9 IP cameras through the NVR setup this system brings you the freedom to work with both.
With alarm, manual, timing and motion detection triggered recording you can set this system up to protect you round the clock and the 1TB hard disc drive can support several days of recording.
There are two SATA ports and each supporting up to 4TB drives you have sufficient storage capacity for up to 8GB of recordings there are also network and USB storage options available if required.
This hybrid system will transform your security set up and with support for bi-directional audio you can interrogate those caught within this systems sight. No matter where you may be with its network operation, multi channel real time recording and playback this 2 in 1 system is great for protecting your property
This hybrid 24 channel DVR / NVR comes with a 12 months warranty. Brought to you by the leader in electronic devices as well as wholesale security systems, Chinavasion.
. Manufacturer Specifications General - Operating System: Embedded Linux
- Control Mode: USB mouse
- Video Systems: PAL/NTSC (Auto)
- Resolution: Analog (DVR) 24xCIF
- Resolution: IP (NVR )9xD1, 8x960H, 4x720P, 2x1080P, 1x720P + 7xD1, 1x1080P + 1x720P+2xD1
- Video Compression: H.264
- Record Mode: Manual, Timing, Motion Detection, Alarm
- Display Split: 1, 4, 8, 9
- Motion Detection: Zones: 192（16x12）detection zones
- Sensitivity: Multi-level sensitivity (Only local channels)
- Alarm: Sensor Triggered, Video Loss, HDD Error
- Audio Compression: G.711A
- Bidirectional Talk
- local Playback: 1 to 9 CH playback，Under analog mode 24xCIF，up to 8 Channels
- Playback (8x CIF/25fps)
- Search Mode: Time, Calendar, Event, Channel Search
Connectivity - Ethernet: RJ-45 Interface 10/100Mbps
- Network Protocol: TCP/IP,UDP,DHCP,DNS,IP filter, PPPOE, E-mail, Alarm server, UPNP, DDNS, DNS Binding E network protocol
Memory - 2x SATA Hard Disk Drive Slot up to 4TB ( 1TB HDD Included)
- Video: CIF: 4 to 5GB / day x channel, D1: 8 to 10GB / day x channel, 960H: 12 to 20GB/ day x channel, 720P: 20G to 30G/ day x channel, 1080P: 40G/ day x channe
- Audio: 691.2M / day x channel
- Record Storage: HDD and Network
- Backup Mode: Network backup, USB HDD, USB, SATA
DVR/NVR Ports - 2x SATA Hard Disk Drive Slot
- Video Input: 24CH BNC
- Video Output: 1CH BNC, 1CH VGA, 1CH HDMI
- Audio input: 4CH RCA
- Audio output: 1CH RCA
- Alarm Input: 8 CH
- Alarm Output: 1 CH
- PTZ Control: 1x RS485, 1x RS232
- 2x USB (3G WIFI expand via USB)
- Power Supply: 12V 5A
- RJ45
Camera Connection Languages - English, Chinese (Simp), Italian, Turkish, Thai, Russian, Japanese, French, Portuguese, Spanish, Traditional Chinese, Polish, Persian, German, Srpski, Greek, Arab, Indonesia, Vietnam
Dimensions - DVR/NVR dimensions: 368 x 305 x 60 mm (L x W x D)
- DVR/NVR weight: 2575g
- Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.
Package Contents - 24CH DVR
- User Manual
- Mouse
- 1TB HDD
- power
- Alarm port + Screws
- power Connector
Ordering from Chinavasion provides you with the following benefits: - Orders processed and shipped within 24-hours
- 12 month warranty
- In-house QC
- Member discounts
- Award winning customer support
- Quantity order discounts
- Worldwide Shipping
- Certification: CE, FCC, RoHS
