Description:
Product category:MX50 SE 2 channels Power Amplifiers Audio Diy Kit or finished board
Supply Voltage : DC+ -15V to + - 45V,dual AC 12V- dual 32V
Output Power: 15-100W 8ohm (+ - 42V)
Voltage Gain : 34times
Input Sensitivity: 1.2V100W 8 ohm
SNR: More than 98DB
Distortion: less than 0.009 THD 1K HZ 10W
Output Stage quiescent current per channel Approximately 30MA
PCB Dimension: 77mm * 74mm
Installation: 649 669 must be installed on supporting the radiator.
After the installation does not require any adjustment, the quiescent current of each tube about 30MA. This version does not need to fly line. Just take two bassoon installed in the radiator can be.
Packing list:

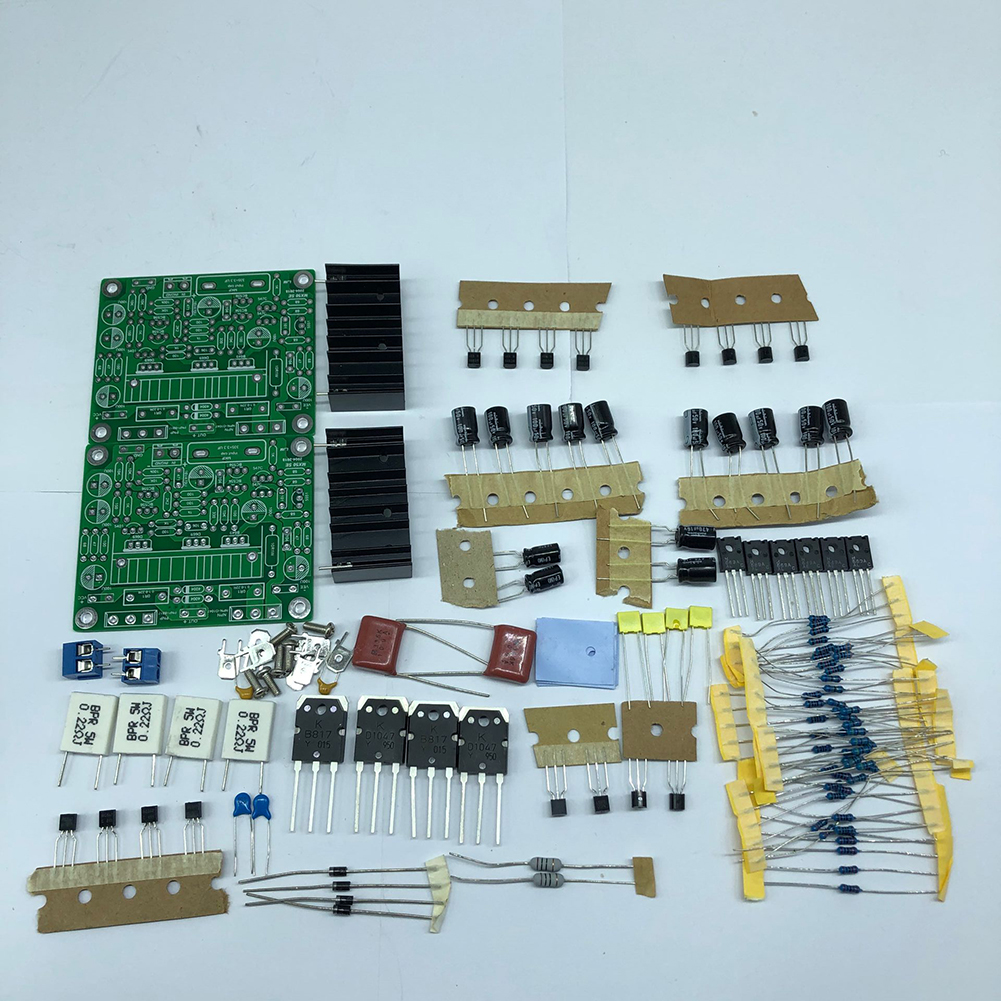

1Pair MX50 SE 2 channels Power Amplifiers Audio Diy Kit or finished board
Note:The colors deviation might differ due to different monitor settings, please kindly understand.
.
